What is it?

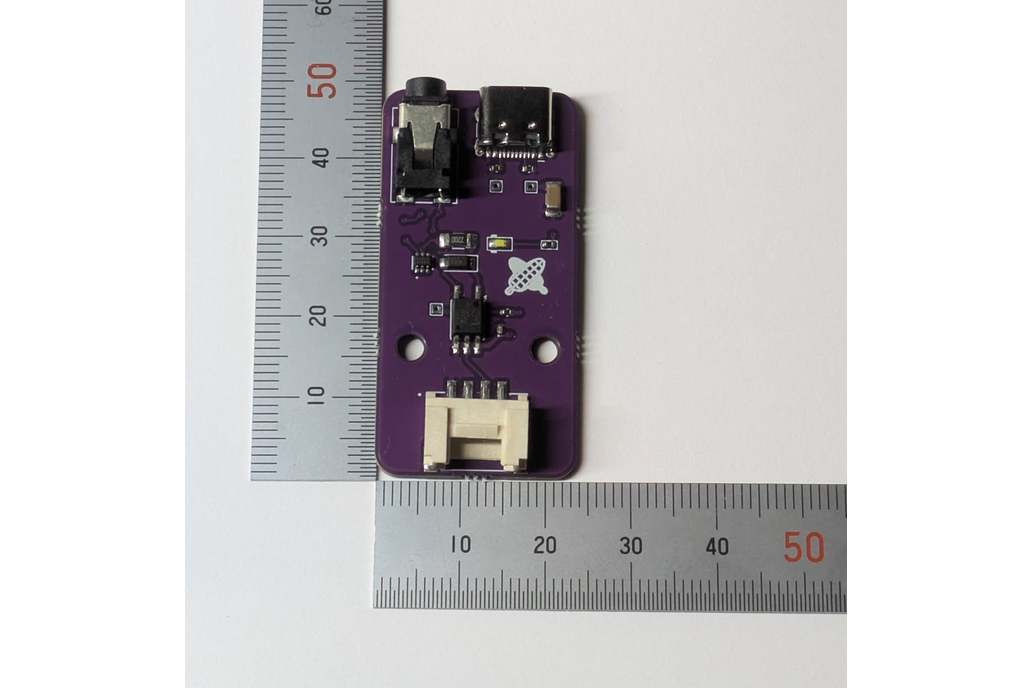

M5 Synth standaloner san is a handy PCB which enables standalone use of:

• Unit Synth https://docs.m5stack.com/ja/unit/Unit-Synth
• Unit MIDI https://docs.m5stack.com/en/unit/Unit-MIDI

without using a microcontroller such as M5Stack/Stick. Both Type A and Type B MIDI IN are supported.

All other product names other than this product are maybe trademarks or registered trademarks of their respective companies.

Product contents

• Preassembled PCB board

• DIN <-> TRS 3.5mm conversion cable (Type-A)

• GROVE cable and synth are not included. Please purchase separately via shop where you can buy m5stack products. Use the cable that comes with it.

How to use

What you will need:

• Unit Synth or Unit MIDI, and the GROVE cable included the package of each product
• USB Type-C power supply cable
• MIDI cable
• MIDI interface or MIDI controller to send MIDI signals to the product

How to connect:

Please refer to the product pictures for actual connection.

• Connect M5 unit and this product with the GROVE cable
• Connect the USB power supply to the POWER terminal of this product
• Connect this product and the MIDI controller with the MIDI cable
