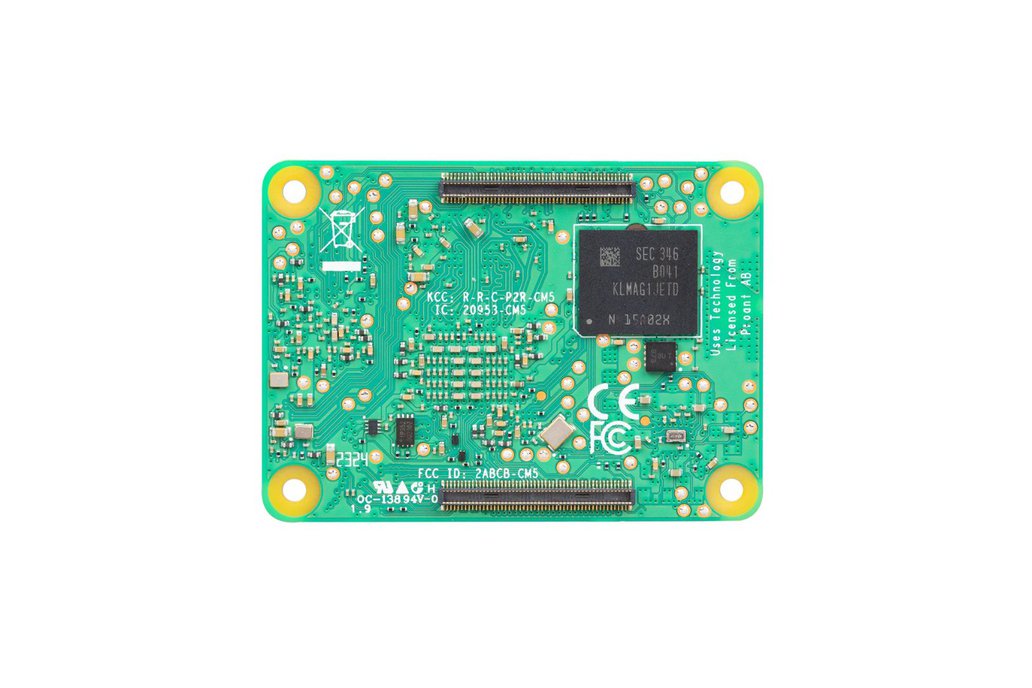

Introducing Raspberry Pi Compute Module 5 Wireless eMMC The Compute Module 5 (CM5) is the latest addition to the powerful Raspberry Pi embedded module series, delivering exceptional performance and ultimate flexibility for hardware developers, device manufacturers, and the DIY community. With a Wireless version that integrates WiFi, Bluetooth, and eMMC memory, the Raspberry Pi CM5 is ideal for applications that require stable storage and powerful wireless connectivity.

Powered by the Broadcom BCM2712 processor, the CM5 is built on the same platform as the Raspberry Pi 5, delivering superior CPU and GPU performance over previous generations. The module offers flexibility for embedded designs thanks to its compact size, rich interfaces, and deep integration into commercial product !![enter image description here

These are variants of the Compute Module 5 with built-in wireless connectivity (WiFi and Bluetooth), please choose the RAM and eMMC size you need. The Compute Module is for industrial applications, NOT for beginners. Please use the Raspberry Pi 5 – it has a powerful processor and comes with easy-to-get-started features. You can buy the Raspberry Pi Compute Module 5 Development Kit, which comes with CM5, IO board, aluminum case and all the related accessories to start learning CM5! Raspberry Pi Compute Module 5 Wireless eMMC specifications Processor: Broadcom BCM2712, Quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz H.265 (HEVC) (up to 4kp60 decode) OpenGL ES 3.1 graphics, Vulkan 1.2 Variant of 16GB, 8GB, 4GB or 2GB LPDDR4-4267 SDRAM Variant of 64GB, 32GB, 16GB, or 0GB (Lite) of eMMC Flash memory

Peak eMMC bandwidth 400MBytes/s (four times faster than CM4’s eMMC)")

built-in Fully certified radio module with : ◦ Dual-band WiFi: 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless ◦ Bluetooth 5.0, BLE ◦ Onboard electronic switch to select between external or PCB trace antenna Gigabit Ethernet PHY supporting IEEE 1588

• 1x PCIe 1-lane Host, Gen2 ( 5Gbps ), can be configured to Gen3 (Gen3 is not certified)
• 2x USB 3.0 ports
• 1x USB 2.0 port (highspeed)
• Up to 30x user GPIO either supporting 3.3V or 1.8V signaling and various interface options:
• Up to 5x UART
• Up to 5x I2C
• Up to 5x SPI
• 1x SDIO interface
• 1x DPI (Parallel RGB Display)
• 1x I2S
• Up to 2x PWM channels
• Up to 3x GPLCK outputs
• 2 x HDMI 2.0 ports (up to 4kp60 on each port supported)
• 2x 4-lane MIPI ports:
• supporting both DSI (display port) and CSI-2 (camera port)
• 1x SDIO 2.0 (CM5 Lite)
• Real-time Clock (RTC), powered by an external battery
• Single +5VDC Power input supports USB PD up to 5A@5V
• Small Footprint 55mm x 40mm x 4.7mm with 4 x M2.5 mounting holes
• Compare the differences between Compute Module 4 and Compute Module 5

Integrated WiFi & Bluetooth: No need for expansion modules, saving space and optimizing PCB design.

Durable eMMC memory: Suitable for applications requiring high storage stability, avoiding errors from SD cards.

Powerful processing power: Arm Cortex-A76 CPU with new generation GPU for both multitasking and graphics processing.

High expandability: With PCIe, CSI/DSI, GPIO interfaces... suitable for highly customized systems.

Compact size: SODIMM design for easy integration into commercial or industrial products.

What you need to get started Here are some popular products to get you started with your Raspberry Pi Compute Module 5 project

Practical applications of Compute Module 5 Wireless eMMC Raspberry Pi CM5 Wireless is a powerful solution for applications such as:

Industrial embedded systems: Production line control, robots, smart monitoring systems.

IoT devices: Gateways, smart sensors, smart home controllers.

Artificial intelligence (AI/ML): Image and voice recognition, real-time sensor data processing.

AI camera system: Multi-camera communication via CSI, image processing directly on the device.

Entertainment & learning devices: Mini game consoles, interactive whiteboards, STEM education devices.

Research & development (R&D): Development of commercial electronic device prototypes.")

Summary The Raspberry Pi Compute Module 5 Wireless eMMC is the perfect combination of processing power, durable storage, and advanced wireless connectivity. It is the ideal solution for businesses, developers, and enthusiasts looking for a powerful and reliable embedded platform.
