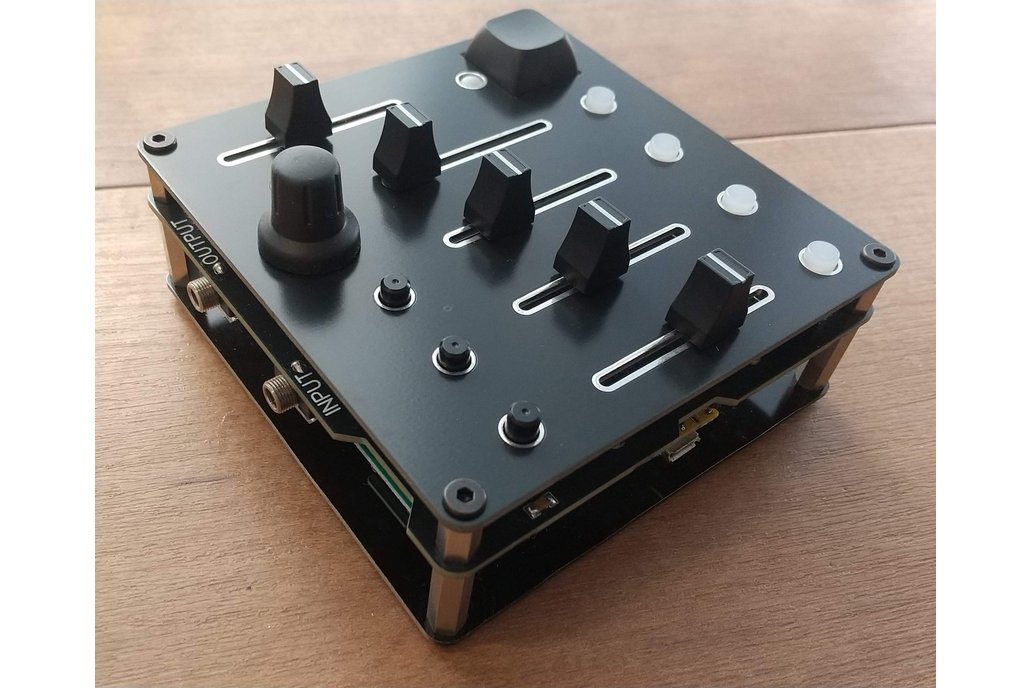

POKI : 4 tracks varispeed looper

Small sized stereo digital audio looper, with varispeed control.

NOTE: this is the first version "prototype" PCB. Front panel is FR-4 PCB with HASL surface finish. Back panel is aluminum. Only 5 units available for this first version. Includes a 16GB micro-SD card. 9V battery is not included.

Features:

• 4 stereo tracks with volume control.
• Up to 1 minute of recording duration for each channel, at normal speed.
• Varispeed: from 25% (2 octaves down) to 200% (1 octave up), with virtual notches at normal speed and half speed.
• Record at any speed or playback direction, overdub, and mixdown.
• Double or halve the loop size with the encoder knob.
• Reverse playback with the flip button.
• Synchronize or de-synchronize channels.
• Save and reload recordings on micro-SD card. Standard WAV format (PCM, 16 bit stereo)

Specifications:

• Stereo, 48kHz, 16 bit audio
• Input/output: Line level. Stereo minijack (3.5mm, 1/8-inch) TRS connectors.
• Power from micro-USB, or a 9 volts battery (non-included). Can be hacked: the device will accept an input voltage from +5V up to +17V DC.
• A total of 64 tapes (8 banks of 8 tapes each) can be recalled from the micro-SD card.
• Built around the Electrosmith's Daisy Seed
