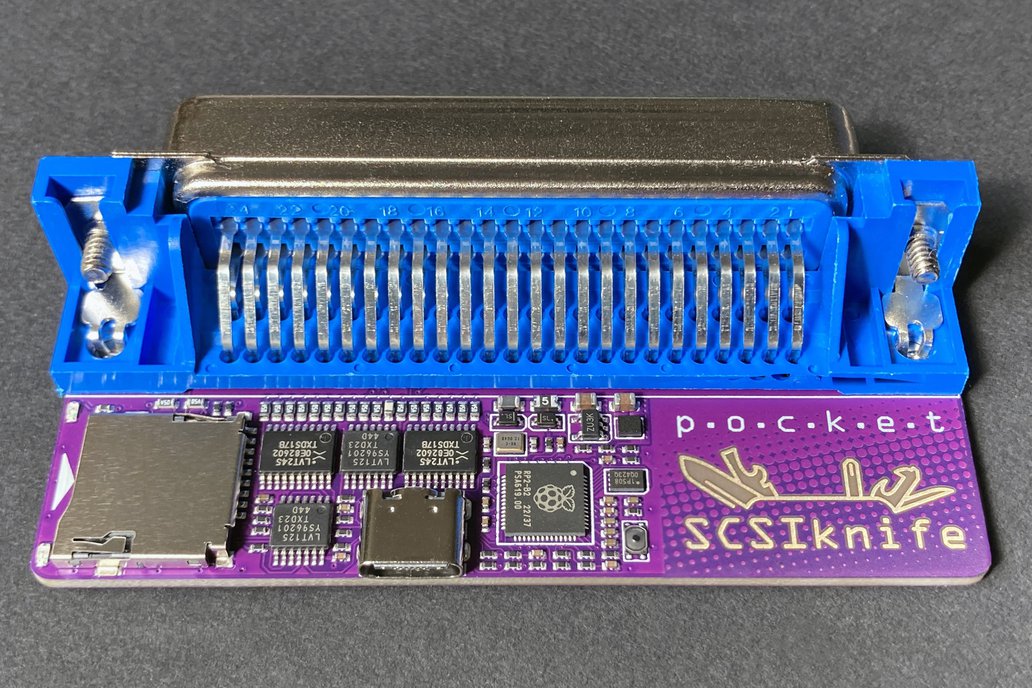

SCSIknife pocket is a compact and versatile solid state replacement solution for SCSI disk drives. SCSIknife pocket emulates hard disk drives, CD-ROM drives, removal media, magneto-optical and tape drives from disk images files. SCSIknife pocket is easy to set up and use, by simply placing disk image files on a MicroSD card.

SCSIknife pocket runs the popular open-source ZuluSCSI pico firmware and is simple to use and configure.

SCSIknife is available in three different configurations:

SCSIknife pocket DB25, with a DB25 25-pin male connector. SCSIknife pocket HD50, with a high density 50-pin male connector. SCSIknife Centronics 50, with a 50-pin Centronics male connector. Specifications:

SCSI-1 (5 MB/s) and SCSI-2 (10 MB/s), actual 9.5 MB/s read and 6.0 MB/s write. MicroSD card with quality spring-loaded push/push connectors. FAT32 and exFAT support for SD card format. USB-C connector. Emulate up to seven separate devices on the same SCSI bus. Powered from SCSI termination or USB-C. Fully compatible with the open source ZuluSCSI™ Pico firmware Ultra-compact footprint Compatibility (may also work with systems not listed here):

Computer systems

Apple IIgs (High speed SCSI controller card) Apple Lisa (Sun Remarketing SCSI card) Apple 68k Macintosh, Macintosh Portable and PowerBook (All) Apple PowerPC Macintosh and PowerBook (All) Applix 1616 AT&T 3B2 Atari Falcon Atari Mega ST 1 (ICD host adapter) Atari Mega STE Atari Stacy Atari TT030 BBC Micro/Master (Akhter host adapter) Commodore Amiga 1200 (Typhoon accelerator card) Commodore Amiga 2000 (DKB RapidFire SCSI card) Commodore Amiga 3000 Commodore Amiga 4000 (CyberStorm PPC) Commodore Amiga 500+ (GVP A530 card, Oktagon 508 SCSI card) Data General MV/2500DC† DEC AlphaStation DEC MicroVAX DEC PDP-11/73 HP 9000/715 HP Apollo 400/425 HP PA-RISC (All) IBM RS/6000 IMS MM/1 Motorola System V/68 Motorola System V/88 NeXTcube (All) NeXTstation (All) RM Nimbus Sharp X68000 (SASI & SCSI)† Silicon Graphics (All) Solbourne S3000 Sun Microsystems 68k workstations (All) Sun Microsystems SparcStation (All) Sun Microsystems UltraSparc (All) Symbolics Lisp Machine XL1200† TI-99/4A Samplers

Akai S1000, S1100†, S2000, S3200†, S3000XL, S5000, S6000, MPC2000XL, DPS 12, DR4, DR4VR Casio FZ-20M EMU Emulator E4X, E6400, Emax1, Emax2, EIIIXP, EIIIXS, Darwin, ESI2000, ESI4000, ESI32, Emulator EIVK Ensoniq ASR-X, ASR-10, EPS16+ Fairlight Series III Korg Triton Studio Kurzweil K2000R, K2500XS, K2600 Peavey SP Roland JS-30, W-30, VS2480, S-550, S-750, S-760, S-770, XV-5080, G1000 Sequential Circuits Studio 440 Synclavier 9600 Waveframe 1000 Yamaha A5000, A3000, EX5, EX5R, RS7000 Others

HP 16601A, 16700A logic analyzers Fluke 9100 series Staubli JC4, JC5 Grosse C12, C13, C14, C20 Bonas CTR S250 Capcom System III †May require system specific configuration .ini file

Disclaimer

SCSIknife pocket is licenced under the CERN Open Hardware Licence Version 2 - Strongly Reciprocal. Sources for the SCSIknife pocket hardware are available at https://github.com/Siliconinsid/SCSIknifePocket.

SCSIknife pocket is a ZuluSCSI™ Pico OSHW derivative compatible with the ZuluSCSI™ Pico firmware. ZuluSCSI™ is a registered trademark of Rabbit Hole Computing.
