Updated Version, r2!

Note this assembly is done with 4 capacitors. The fifth will be included with the order in case you decide to add it later. If you would like the fifth capacitor installed before shipment just let me know or select it as an assembly option. This is a cosmetic part only and has no effect on the operation of the meter.

You can also select a version with or without Real EMF Detection. The default selection will now be without real EMF detection. For an added cost you can include real EMF detection to the order.

Technical Details

• Dimensions: 86 mm (3.46") x 95 mm (3.74")
• AA batteries
• 5 LEDS driven by an LM3914
• ATTiny85 controller
• DFPlayer module for audio
• Optional 5th yellow capacitor
• A real EECO switch similar to the one used in the TV series.

Additional features when Real EMF is selected

• Detects Electric and Magnetic Fields (EMF)
• The EECO switch is functional and will select the gain for the E-Field detector (3 Gain Levels Available)
• A 4-position rotary switch is used to select the gain for the H-Field detector (3 Gain Levels Available)
• The telescopic antenna is now active to pick up Electric fields
• The red wire wrap around the antenna is active to detect Magnetic fields
• An additional pick up coil is added to detect Magnetic fields on a different axis

Description

Sam and Deans Classic EMF Meter

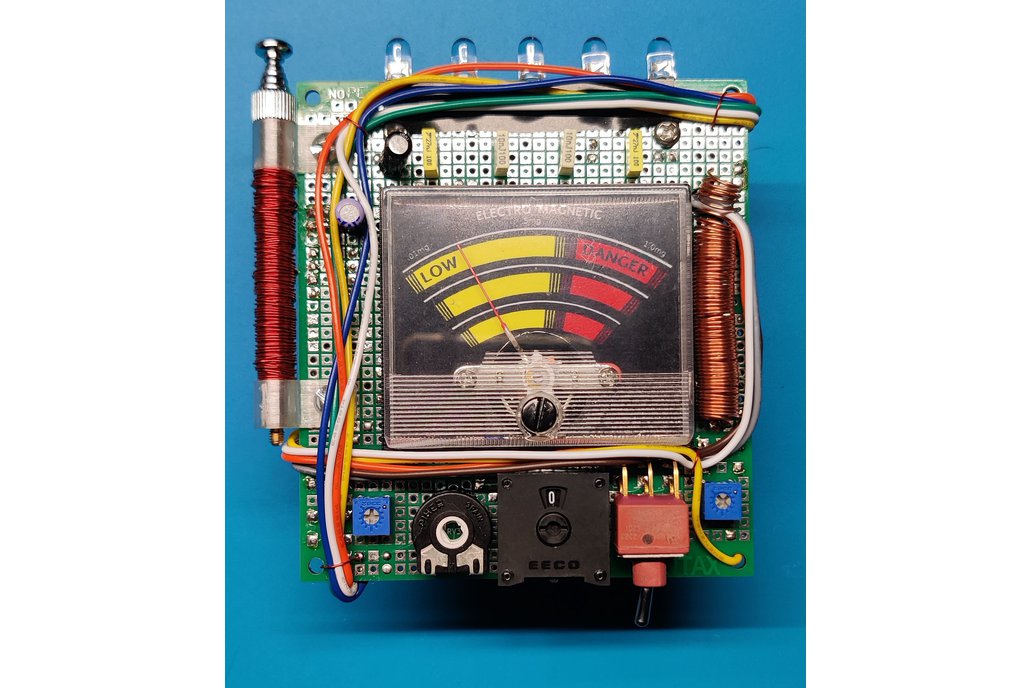

This is a replica of Sam and Dean's classic meter seen in many of the Supernatural episodes. It can be configured with 4 or 5 capacitors at the top. This is a highly accurate replica of the prop used in the series.

Great for Cosplay or Halloween!

This meter can also be configured as a functional EMF meter to detect Electric and Magnetic fields. It also has a test button to simulate EMF events any time.

An ATTiny85 is used to control the DFPlayer sound board. Reprogramming of the ATTiny85 can be accomplished using an In-Circuit Serial Programming (ICSP) port to program the part on the board.

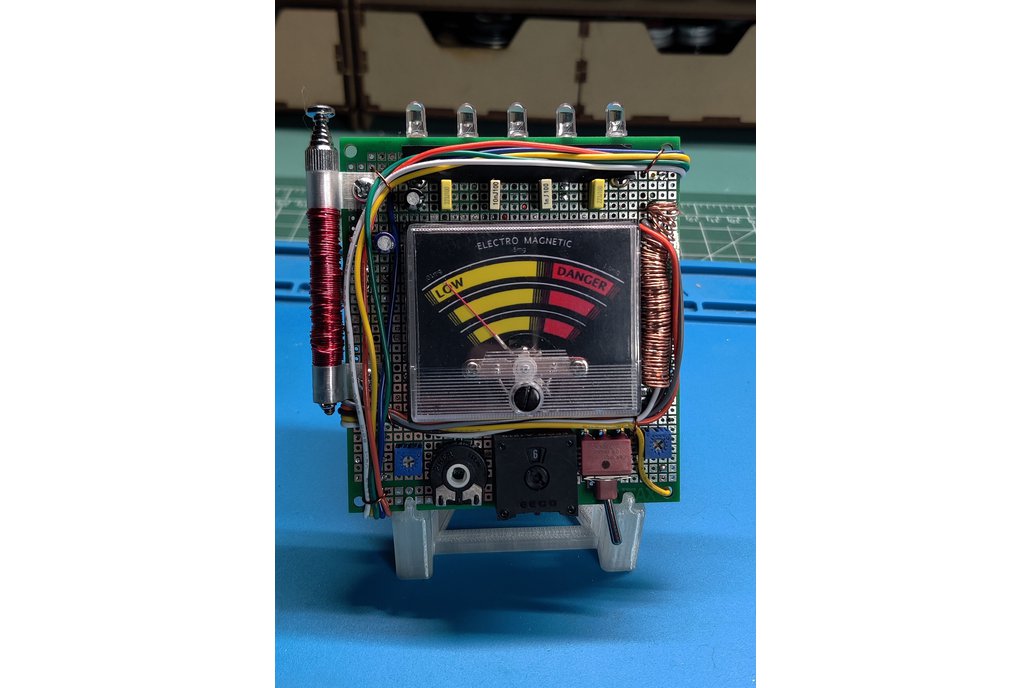

Comes with a custom display stand.

Check out the documentation link for more details.

Journal pages are available for this meter!

Purchase Options

• Assembly with or without real EMF detection
• Assembly with 4 or 5 top capacitors
• Assembled units will come with an empty AA battery pack
• LEDS will be set to BAR mode
• Smaller 3362 Blue potentiometers installed

• Custom 3D printed display stand included

• Batteries are NOT included. 4 AA batteries are need for operation!
