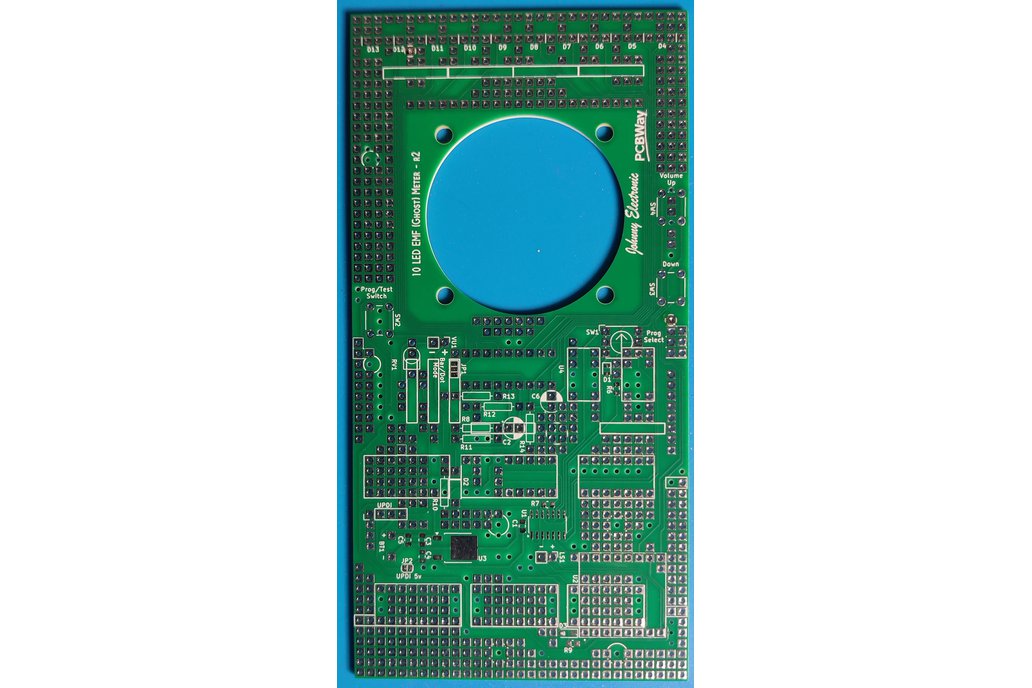

Updated PCB, Version 2

Technical Details

• Dimensions: 79mm x 158mm x 50mm (3.12" x 6.25")
• Cut out for a DC VU meter, 45mm hole with 4.5mm mounting holes
• Double sided PCB with 2mm square perfboard like pads on the front and through hole/surface mount layout on back
• This is a prop replica and does not have any EMF detection abilities

Description

This board is used for making a replica of the 10 LED meter used by Olivia in season 4 episode 2 of the Supernatural TV series.

This is an updated version.

A partial build video is available on my YouTube site. This meter is built using a custom PCB that was designed to look like a perfboard assembly from the front with most of the real components on the back side.

A schematic is available along with a Bill of Materials (BOM).

Check out the documentation link for more details.

Product Assembly Videos on YouTube:

Assembly Video Olivia's 10 LED EMF Meter Replica, Version r2

Assembly Video Olivia's 10 LED EMF Meter Replica

Purchase Options

Images of assembled units are for reference only. This item is a blank PCB.

Blank PCB is the default (No mounting holes are drilled)

• Pre-Drill 1/8" and 9/64" mounting holes (Side antenna and battery mount) for those that are following my layout.
• With ATTiny1604 SOIC14 SMT part
• With UPDI programming cable and CH340 USB-C
• With DFPlayer module
• With P-clips for antenna mounting (3D printed, clear, 2 each. 5mm dia)
• With AA battery pack holder (3D printed, black. Batteries and battery pack not included)

For assembled units and a more detailed description check out the 10 LED EMF Meter Replica - Assembled listing.
