Description

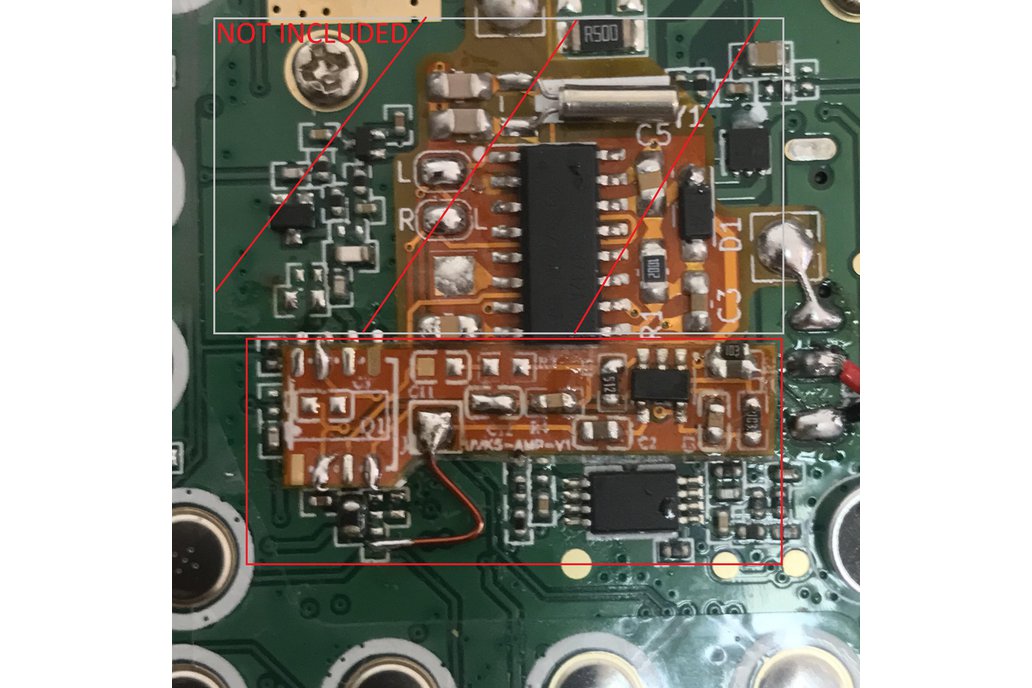

The Radio mod chip shown in the picture is not included in this listing - only the audio module RED BOX FPC module will be shipped.

This listing is for the Audio Module bottom part which requires installation in the Quansheng UV-K5 TRX . It has been developed to enhance the audio quality in USB/LSB/CW modes. While AM and FM modes exhibit good audio, it was observed that audio levels were somewhat low in side-band modes.

Purpose

The creation of this mod stemmed from the need to address the audio quality disparity between different modes. To tackle this issue, an audio pre-amp with a gain of 50-100 was devised. Once integrated, this pre-amp offers the necessary audio boost for side-band modes.

Unique Features

• Designed to be compatible with the existing FPC SI4732 setup

• Piggybacks on the same chip pinout, utilizing the same supply and audio pins

• Requires only one wire to be soldered to a specific point for installation

What is Included

Assembled Audio preamp fpc board for manual installation Service to install module with send - back to customer..
