What is it?

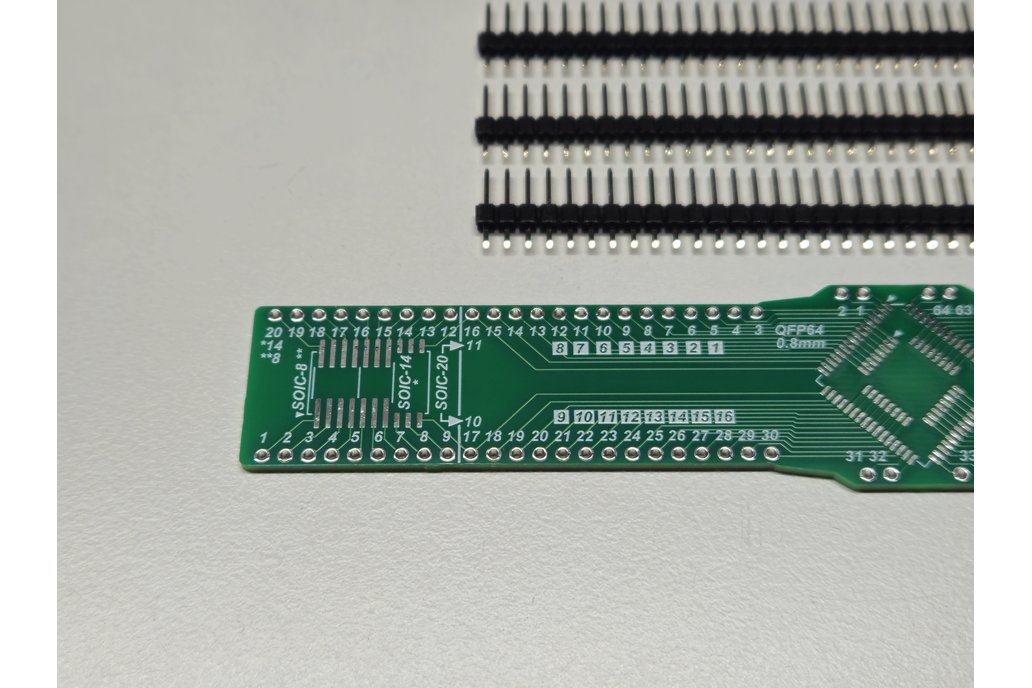

This is a simple two-layer PCB with lead-free HASL surface finish, that anyone can reproduce. The board allows you to adapt various SMD packages for use on a breadboard, including:

• SOT23-6

• TSSOP-8

• SOIC-8

• SOIC-14

• TSSOP-20

• SOIC-20

• QFP32 (0.8 mm pitch)

• QFP44 (0.8 mm pitch)

• QFP64 (0.8 mm pitch)

• QFP100 (0.5 mm pitch)

This board was originally designed for AVR microcontrollers, which is why these particular packages and pitches were chosen.

Why did you make it?

I had several situations where I wanted to quickly prototype or test a project, but couldn’t use SMD components like SOIC, TSSOP, or QFP on a breadboard. This board solves that problem by making them "breadboard-compatible".

What makes it special?

Before making this board, I searched for something similar, but I couldn’t find a design that included multiple package types on a single PCB — so I decided to create one myself.

Each kit also includes 100 male pin headers with a gold-flash finish for excellent solderability, plus 20 extra pins as spares.

I can ship this item using the most economical delivery method to certain European countries. Please note that no tracking number will be provided — the parcel will be sent without tracking or delivery confirmation, so please choose this shipping option at your own risk.

If you want a tracking number, please select a more expensive shipping method.

⚠️ Please remember: All import taxes and other entry duties are the responsibility of the buyer. Unfortunately, I’ve had cases where buyers refused to pay customs fees. According to Tindie’s rules, all taxes and import fees must be paid by the buyer.

If you have any questions or suggestions, please don’t hesitate to reach out!
