30 pin FPC cables for EVAFLEX® 5-SE connectors

Name: 30 pin FPC cables for EVAFLEX® 5-SE connectors
SKU: 39043
Price: 5.00 USD
Availability: InStock

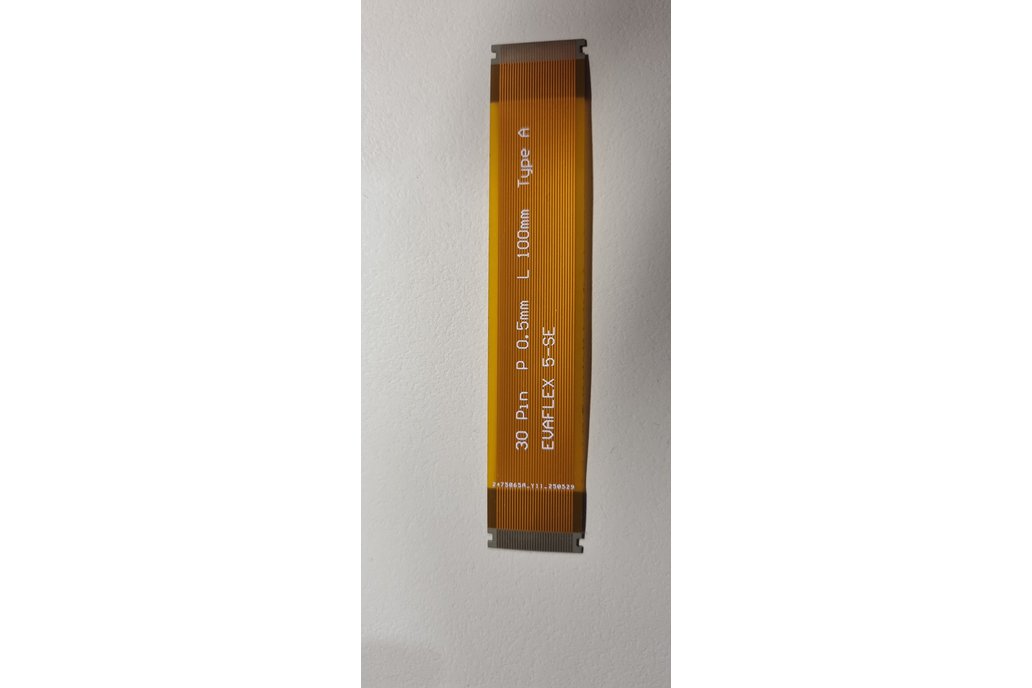

This is a 30-pin FPC cable designed for use with I-PEX EVAFLEX® 5-SE connectors

Designed by Industrial electronics in Australia

30 pin FPC cables for EVAFLEX® 5-SE connectors 1

30 pin FPC cables for EVAFLEX® 5-SE connectors 2

30 pin FPC cables for EVAFLEX® 5-SE connectors 3

30 pin FPC cables for EVAFLEX® 5-SE connectors 4

30 pin FPC cables for EVAFLEX® 5-SE connectors 5

30 pin FPC cables for EVAFLEX® 5-SE connectors 6

30 pin FPC cables for EVAFLEX® 5-SE connectors 7








Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This is a 30-pin FPC cable designed for use with I-PEX EVAFLEX® 5-SE connectors

What is it? This is a 30-pin FPC cable designed for use with I-PEX EVAFLEX® 5-SE connectors. It features a 0.5mm pitch and a length of 100mm. I have tested it and confirmed compatibility with the I-P…

What is it?

This is a 30-pin FPC cable designed for use with I-PEX EVAFLEX® 5-SE connectors. It features a 0.5mm pitch and a length of 100mm. I have tested it and confirmed compatibility with the I-PEX 20539-030E-01 and 20799-030E-01 connectors.

Why did you make it?

While working on a project that required a vertical FPC connector, I found that the EVAFLEX® 5-SE series from I-PEX was a perfect fit for my PCB layout, especially in designs with limited space.

However, I-PEX only supplies the connector itself, and matching FPC cables are not available in the general market. I even contacted I-PEX for recommendations, but sourcing custom cables in small quantities was prohibitively expensive.

To solve this, I decided to design and produce my own FPC cables for the project—and that’s how this product came to be.
