Description:

It is a digital temperature control module with an LCD display that is very clear, easy to use, & powerful. It can be widely used with smart homes, industrial controls, automatic irrigation, indoor ventilation, & protection equipment.

Features:

• LCD display
• Power-down memory function
• Emergency stop function
• Real-time display temperature
• Automatic save parameters
• Supports UART Set
• High temperature buzzer alarm
• Work status indicator
• Wide range of delay start times

Parameters:

• Product Name: Digital Temperature Controller
• Product Number: XY-T01
• Working Voltage: DC 6V-30V or 5V Micro USB
• Control Load Current: 10A(Max)
• LCD refresh rate: 0.5 second
• Temperature Sensor: NTC-10K B3950
• Test temperature: -50~110℃
• Control precision: 0.1℃
• Sensor length: 0.5 meter
• Sensor probe specifications: 4x30mm Stainless steel
• Physical dimensions: 68x42x21mm

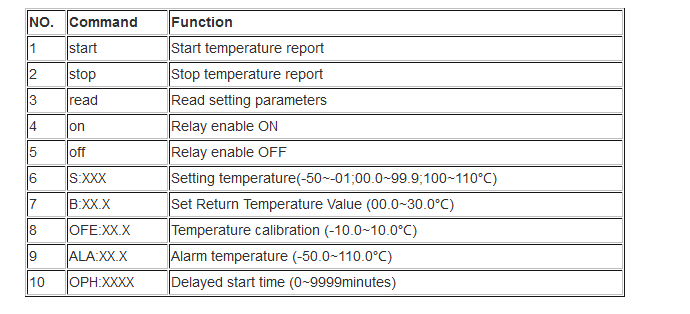

UART communication and parameter settings:

The system supports UART data upload and parameter setting functions (TTL level); UART: 9600, 8, 1

Applications:

• Smart homes
• Industrial controls
• Automatic irrigation
• Indoor ventilation
• Self-made thermostatic control boxes
• Equipment cabinets
• Air conditioning systems
• Temperature control protection
• Refrigerators
• Freezers
• Water heaters
• Hosts
• Hatch controls

Package Listing:

• 1pcs XY-T01 Digital Temperature Controller
• 1pcs 0.5meter NTC-10K B3950 sensor
• 4pcs White isolation seat

Product Details:
