1.Introduction CTR-30 flash Christmas tree kit consists of three circuit board, allows 36 LED flash alternately, showing a Christmas tree in the space of three-dimensional profile (the night environm…

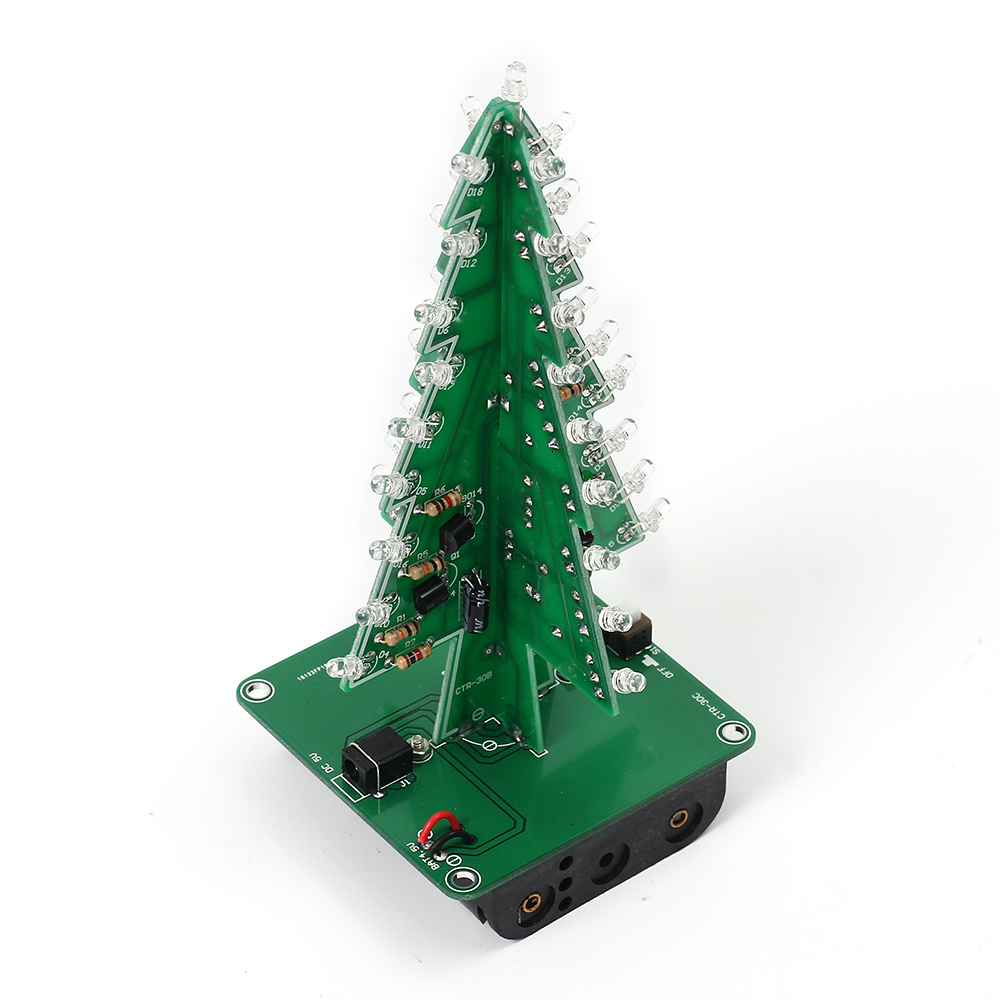

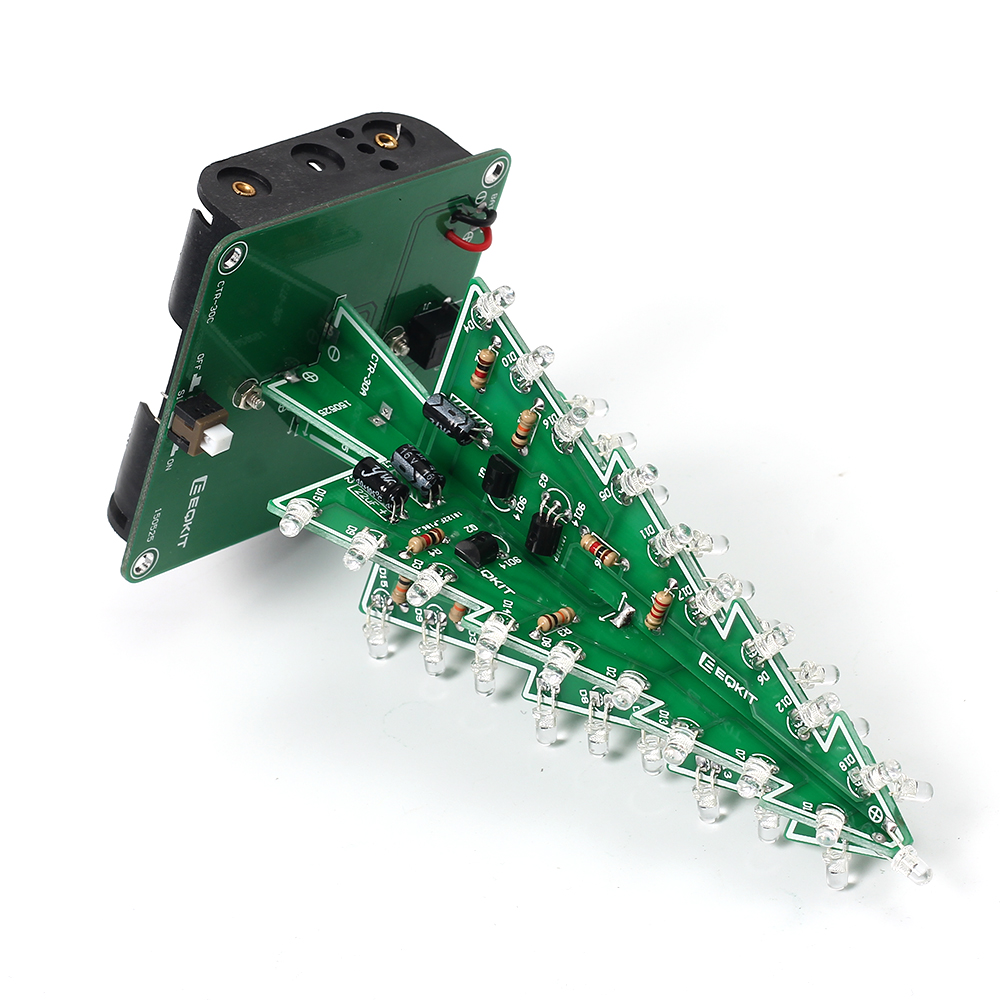

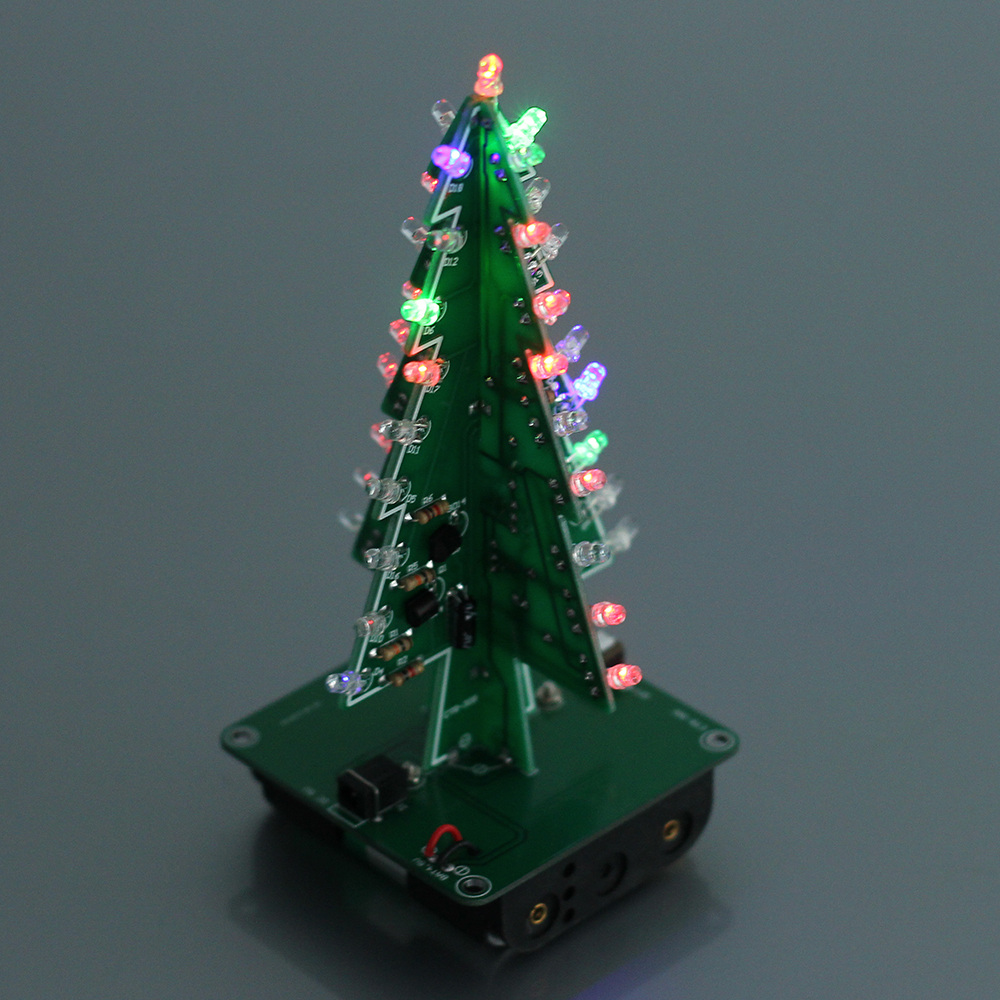

Read More…CTR-30 flash Christmas tree kit consists of three circuit board, allows 36 LED flash alternately, showing a Christmas tree in the space of three-dimensional profile (the night environment has better viewing).
NO. | Parameter | Value |
---|---|---|
1 | Model | CTR-30C |
2 | Work Voltage | DC4.5-5V |
3 | Power Type | AA*3 battery or USB Cable |
4 | Installation Size | 60mmx136mmx60mm |

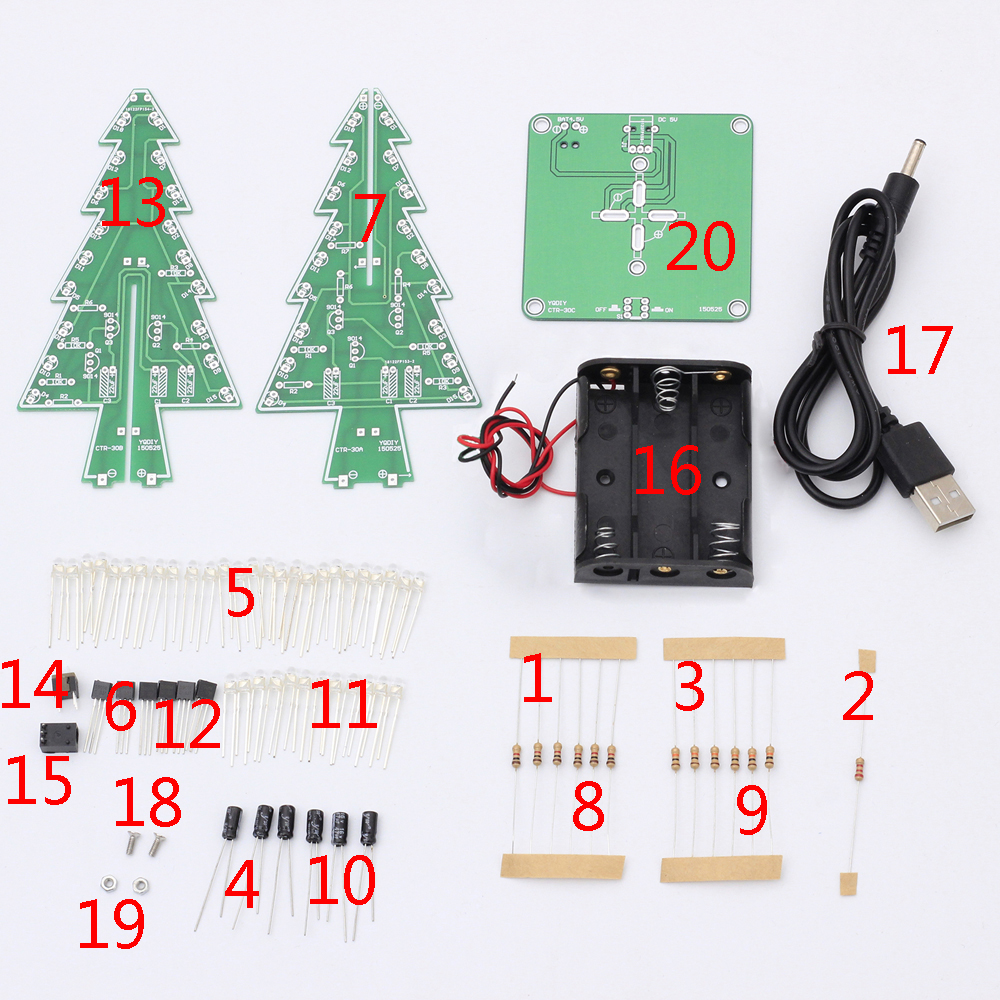

NO. | Component Name | PCB Marker | Parameter | QTY |
---|---|---|---|---|
CTR-30A | ||||
1 | Metal Film Resistor | R2,R4,R6 | 1K | 3 |
2 | Metal Film Resistor | R7 | 2.2K | 1 |
3 | Metal Film Resistor | R1,R3,R5 | 10K | 3 |
4 | Electrolytic Capacitor | C1-C3 | 47uF 16V | 3 |
5 | White LED | D1-D18 | 3mm | 19 |
6 | S9014 Transistor | Q1-Q3 | TO-92 | 3 |
7 | PCB | CTR-30A | 1 | |
CTR-30B | ||||
8 | Metal Film Resistor | R2,R4,R6 | 1K | 3 |
9 | Metal Film Resistor | R1,R3,R5 | 10K | 3 |
10 | Electrolytic Capacitor | C1-C3 | 47uF 16V | 3 |
11 | White LED | D1-D18 | 3mm | 18 |
12 | S9014 Transistor | Q1-Q3 | TO-92 | 3 |
13 | PCB | CTR-30B | 1K | 1 |
CTR-30C | ||||
14 | Self-Locking Switch | S1 | 5.8mm | 1 |
15 | DC Power Socket | J1 | 3.5mm | 1 |
16 | Battery Box | AA*3 | 1 | |
17 | USB to DC 3.5mm Cable | 80cm | 1 | |
18 | Screw | M2*8mm | 2 | |
19 | Nut | M2 | 2 | |
20 | PCB | CTR-30C | 1 |
NOTE:Users can complete the installation by PCB silk screen and component listing
Download the Installation Steps here!
View video from Here!
