Description:

• The intelligent fan temperature controller is used for adjusting the fan speed according to the actual temperature.

Feature:

• Automatic recognition of positive and negative poles.
• A dedicated intelligent chip.
• Four kinds of rotate speed.
• Convenient to use.

Parameter:

• Work Voltage: DC:5V~30V AC:4V~20V.
• Fan Specification: DC 5V; =<0.5A.
• Probe Specification: NTC 10K.
• Starting Temperature: 45~50℃.
• Work Humidity: 5%~95%RH

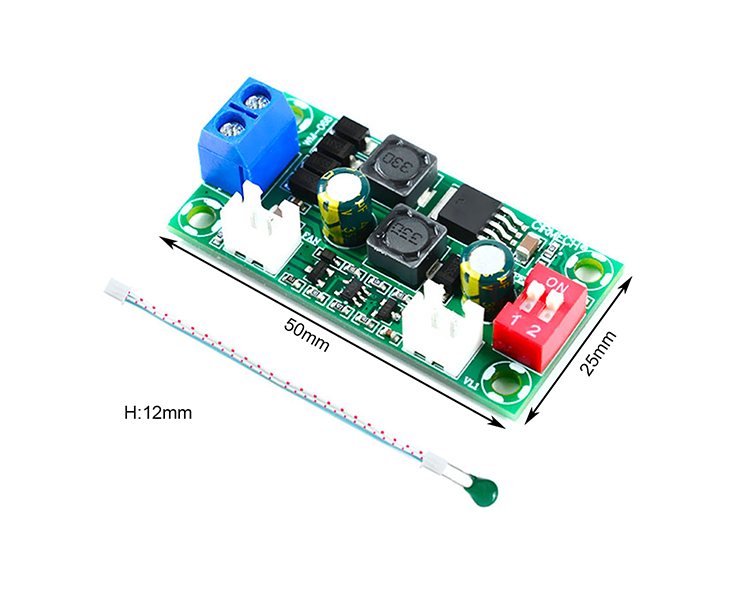

• Size: 50x25x12mm.

Application:

• Industrial power supply.
• Commericial installation.
• Computers.

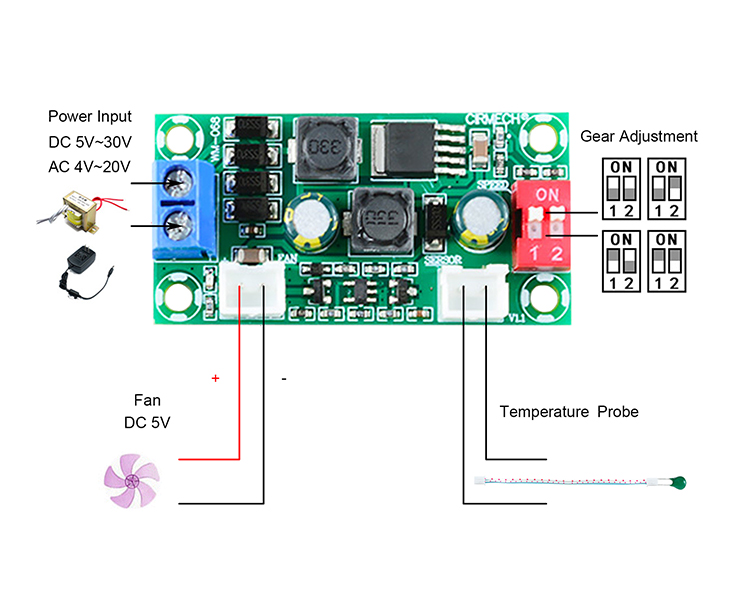

Working Principle:

• The starting temperature of probe is 45~50℃.
• If the temperature is higher than it, the fan begins to rotate.
• If the temperature is lower than it, the fan stops working.
• The fan has four kinds of rotate speed, its funtion is to reduce noise and extend life span.
• Please pay attention to the error caused by environmental and other factors.

Fan Specification:

• In order to reduce heat, choose a fan with current less than 500mA.
• For the best power utilization rate, please input voltage at about 5V.

Package:

• 1 pcs intelligent fan temperature controller.
• 1 pcs temperature sensor probe.
