Description:

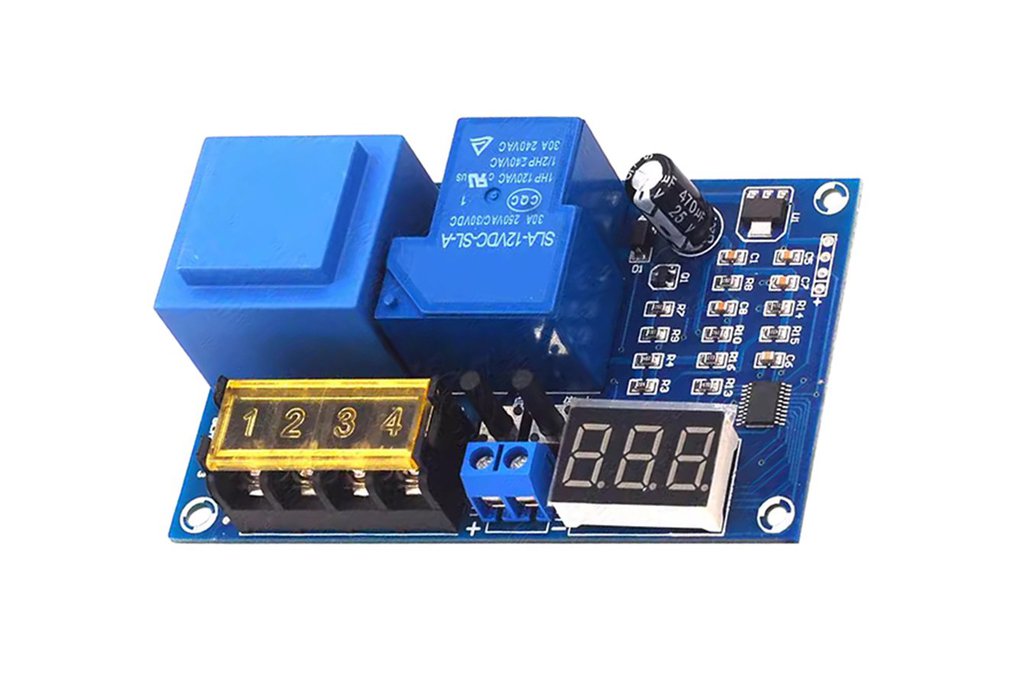

The battery control charging module is a module that controls the power supply of the charger. It can realize automatic power off after the battery voltage exceeds the preset value.

Feature:

• Suitable for 3.7~120V batteries and lithium batteries.
• Safe and energy efficient.
• Automatic power off.
• Stable performance.
• High integration degree.

Parameter:

• Product Name:numerical control battery charging control module.
• Model:XH-M602.
• Input Voltage:AC 220V.
• Display Precision:0.1V.
• Control Precision:0.1V.
• Output Type:Switch.
• Voltage Error:+-0.1V.
• Battery Voltage:3.7~120V(include all batteries and lithium batteries).
• Work Temperature:-25℃~85℃.
• Work Humidity:0%~95%RH.
• Size:86x58x24mm.

Application:

• Two-wheeled and three-wheeled electric car batteries.
• New energy electric car batteries.
• Lithium batteries and polymer batteries.
• Lead-acid batteries, nickel-cadmium battries and Ni-MH batteries.

Charging Instructions:

Note:

• The charging current should not exceed 1/10 of the electric capacity.
• The charging voltage should not exceed 1.2 times the battery voltage.
• Because the voltage will become smaller after the battery is used, for a rechargeable battery that has been used for a long time, even if the voltage is normal, it is out of power and needs to be replaced.

Voltage Setting:

• The start button can increase the voltage, and the stop button can reduce the voltage.
• Set the starting voltage:
• In normal display voltage state, press the start button once to display the start charging voltage.

• Press and hold the start button, and adjust the start charging voltage with the start button and stop button after nixie tube flsahes.

• Set the stop voltage:

• In normal display voltage state, press the stop button once to display the stop charging voltage.

• Press and hold the stop button, and adjust the stop charging voltage with the start button and stop button after nixie tube flsahes.

• Factory data reset:

• When powered on, press the start and stop button at the same time.

• If 888 is displayed on the nixie tube, the reset is successful.

• The default starting voltage is 12V, the default stop current is 14V.

• If a value cannot be set, you can set another first, and then come back and continue to set the value.

Method of use:

• Preparation:
• The necessary items are a charger and a battery.
• Recommended items are digital voltmeters and multimeters.

• No need to measure the voltage repeatedly.

• Starting voltage measured:

• The first step is to discharge the battery so that it can reach the state that needs to be charged.

• The second step is to use the prepared tool to measure the battery voltage in the state of need to be charged.

• Stop voltage measured:

• The first step is to fully charge the battery with the original charger.

• The second step is to use the prepared tool to measure the battery voltage in the state of fully charged.

• Set voltage:

• Please set reasonable values.

• In order to avoid the influence of temperature and other factors, when setting the stop voltage, it should be 0.1~0.3V lower than the measured value.

• Wiring: Do not connect reversed.

Package:

• 1 pcs battery charging control module.
