Description:

• XY-X15H is a 15W+15W Dual Channel Stereo Bluetooth 5.1 Audio Amplifier Module which also can be controlled by APP Sinilink and infrared remote controller.
• It can modify the Bluetooth name and password, also can turn ON/OFF Bluetooth prompt tone. 2.0 channels audio signal output.
• Built-in amplifier module therefore it can connect to loudspeaker directly. It is ideal for DIY wireless Bluetooth speakers and transponders.

Features:

• Bluetooth APP Control: It can not only be used as an ordinary Bluetooth receiver, but also use the special Bluetooth APP SiniLink to achieve the play state switching and sound quality playback. In particular, it can support the modification of the Bluetooth name and set the Bluetooth pairing password which greatly improving the safety of the use of the product. At the same time, the Bluetooth prompt tone can also be turned ON or OFF as your needs.

• Remote Control : It uses an infrared remote control with silicon rubber buttons which can improve user experience. It can adjust the volume, switch music, switch sound effects, and also mute and turn off the power which can implement remote control and more convenient operation.

• Bluetooth/AUX/U-disk : It can not only receive music via Bluetooth, but also via AUX and U-disk to fit different needs. It is capable of playing WAV,FLAC,APE,MP3 music files. Independent power switch to control its working status at any time.

• 15W+15W Dual Channel Stereo: It has a built-in amplifier chip to provide 15W*2 drive capability with DC 9V-24V work voltage.Recommended to use more than 3A current to get more clear, bright and high fidelity sound.

• Easy and fast operation: It only needs to connect the matching power supply and speaker to start working. The on-board 360° infinite tuning potentiometer can not only adjust the volume, but also playing and pause easy and fast operation.

• Protection Function : It has multiple protection mechanisms to ensure its safe operation with over-voltage protection, under-voltage protection, over-current protection, short-circuit protection, overheating protection, clipping protection.

Functions:

• Bluetooth APP Control
• Infrared Remote Control
• Independent Power Switch
• luetooth/AUX/U-disk Audio Input
• ON/OFF Prompt Voice
• Modify Bluetooth Name, Password
• ON/OFF Bluetooth Password
• Adjust Volume for Prompt Voice
• 360° Infinite Adjust Volume
• RCA Audio Interface

Parameters:

• Work Voltage:DC 9V-24V(12V or more recommended)
• Work Current:>3A
• Unique function:Sinilink APP control
• Channel:2.0 channel stereo output
• Bluetooth:BLE 5.1
• Audio input type:Bluetooth/AUX/USB
• Audio output type:Left/Right
• Adjust volume:360° Potentiometer adjustment
• Output power:10W2 at 12V 8ohm;20W2 at 12V 4ohm;15W2 at 16V 8ohm;20W2 at 24V 8ohm
• Communication distance:15meter(Max)
• Over temperature protection:Yes
• Short circuit protection:Yes
• Over voltage protection:Yes
• Under voltage protection:Yes
• Clipping protection:Yes
• Work Temperature:-20℃~85℃
• Work Humidity:5%~95%RH
• Module Size:78x52x35mm

Note:

• The power amplifier board should be as far away as possible from the WIFI signal (router) avoid signal interference.
• It is power supply voltage DC 9V-24V with more than 3A current.
• It is recommended to use a working power supply of more than 12V.
• Please don’t use too long wires to avoid signal interference.
• There can be enough power output only when the audio input is sufficient and the power supply voltage/current input is sufficient.
• The higher the power supply voltage, the greater the output power.
• The smaller the impedance of the speaker, the greater the output power. It is recommended to use 4ohm speaker.

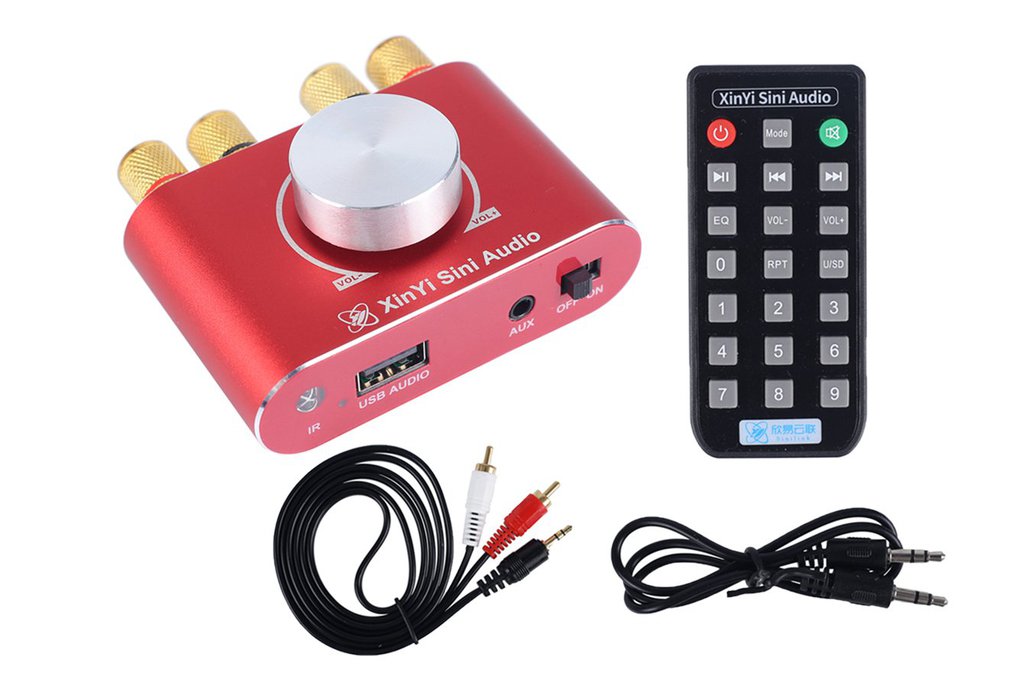

Package:

• 1pcs XY-X15H 15W+15W Stereo Bluetooth 5.1 Amplifier Module (Red)
• 1pcs Infrared Remote Controller
• 1pcs RCA to AUX Audio Wire
• 1pcs AUX Audio Wire
