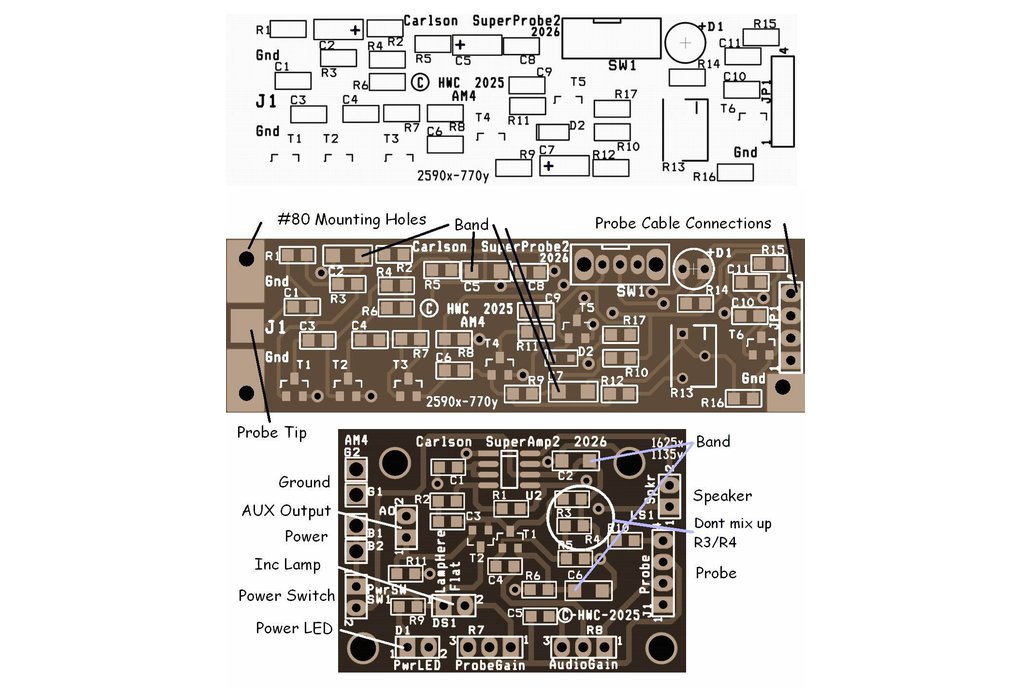

New and Improved Amplifier & Probe PCBs. Amp PCB

Through-hole pads for all connections to PCB
Uniform horizontal orientation of SMDs for easier assembly
PCB mounted incandescent protection lamp for POT R7
NEW optional buffer transistor for auxiliary audio output signal
Dedicated PCB connections for LED, switch, lamp, speaker, audio, POTs, power, ground

Probe PCB

Through-hole pads for cable connections to PCB
Ground plane
Mounting holes
Uniform horizontal orientation of SMDs for easier assembly
Improved Pop LED driver circuit

(No affiliation with Mr Carlson's Lab) As with our previous version of the SuperProbe, this SuperProbe2 conforms to the original Carlson circuit design, implementing a versatile non-contact very high gain electronic probe for investigating just about any kind of electrical signal from audio to RF. The design is well proven and constructed by many DIYers.

Anyone interested in building the probe should first review:

Carlson's YouTube video @ https://www.youtube.com/watch?v=uVkJqqZroN0 Yannick99 @ https://www.instructables.com/Carlsons-Super-Probe/ A thru-hole Design: https://stufinnis.co.uk/superprobe.html An EEVBlog Thread: https://www.eevblog.com/forum/oshw/paul-carlsons-super-probe/ Web search for many other reviews and assembly hints.

Here is a great UT video of Carlson using the SuperProbe to locate a noisy component inside a complex transceiver. He makes it seem so easy, and with the SuperProbe it is! https://www.youtube.com/watch?v=uiK1BD7HILo The PCBs This kit includes only the main PCBs with NO PARTS. There are many components needed to construct a complete probe and amplifier. While there are a few through-hole & panel mounted components, all of the remaining parts are 0805/1206/SOT23 SMD parts. Soldering such components requires specific equipment, soldering tools, solder, tweezers, optics, skill and patience. We will provide the same instructions that come with our complete parts kit, but you are responsible for sourcing everything. Schematic details are included and are identical to the original design. You have the option to construct the PCBs exactly as Carlson specified, or implement the improvements we discuss in the instructions. These PCBs REQUIRE ASSEMBLY. The Assembly While there are a few through-hole & panel mounted components, all of the remaining parts are 0805/1206/SOT23 SMD parts. Soldering such components requires specific equipment, soldering tools, solder, tweezers, optics, skill and patience. Follow the included instructions in detail. Schematic details are included and are identical to the original design.

Some of the listing photos show a particular implementation in a very compact package. Such compactness is not necessary, but demonstrates what can be achieved. Photos may include components not on the bill-of-material, and are included as suggestions for completing the probe. See Our Battery-Pack and Case-Kit Options Too Check our listing for a Li-Ion battery pack & charger module. eBay #166266862893 https://www.ebay.com/itm/166266862893

Check our listing for a Case Kit including battery, charger and assorted components. eBay #167329571881 https://www.ebay.com/itm/167329571881 Parts List: Two (2) PCBs ONLY.
