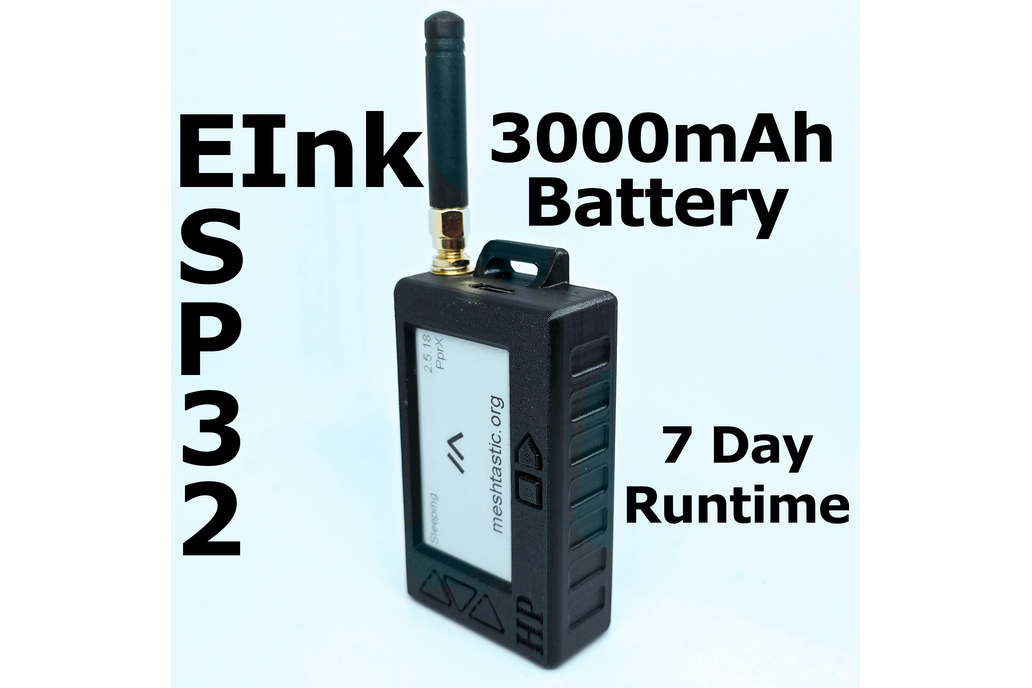

Complete Node based on the Heltec Wireless Paper with 3000mAh battery
This E-ink node is based on the Wireless Paper board and has been specifically designed and configured for maximum power efficiency. Under optimal settings, it has been tested to run continuously for…
This E-ink node is based on the Wireless Paper board and has been specifically designed and configured for maximum power efficiency. Under optimal settings, it has been tested to run continuously for seven days on a 20% channel utilization mesh. However, actual runtime may vary depending on network activity.
Additionally, an unofficial Meshtastic variation called InkHUD UI offers expanded display functionality compared to the original firmware. However, please note that InkHUD UI is still under development. A demo video is available on YouTube. If you prefer this variation, you can opt to have it preloaded.
Specifications:
Core microcontroller: Heltec Wireless Paper
LoRa Node Chip: SX1262
Frequency: 863~928MHz
Battery: 3000mAh Li-ion (30-95hrs)
Antenna: Stock Antenna 1.5db 915mHz
WiFi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth 5 (LE)
Connectivity: USB-C port
Dimensions: 85mm x 45mm x 20mm
Dimensions w/Antenna: 130mm x 45mm x 20mm
Weight: 3.32oz
Package Contents:
HP Meshtastic device
863-928MHz antenna for long-range communication
No country selected, please select your country to see shipping options.
No rates are available for shipping to .
Enter your email address if you'd like to be notified when HP - E-Ink Meshtastic Node (Complete) can be shipped to you:
Thanks! We'll let you know when the seller adds shipping rates for your country.
Rates to
Shipping Rate
Tracked
Ships From
First Item
Additional Items
:
Review Breakdown
5
1
4
0
3
0
2
0
1
0
Average Ratings
Product:
(5.00)
Documentation:
(5.00)
Shipping:
(5.00)
Communication:
(5.00)
Jay |
Jan. 30, 2025
Cool little lora
Just a cool e-paper Lora. I like having the extended display for it as it stands out from my other devices. Picks up signal well . The case is solid for it too. Good piece for the Lora collection.
