Overview

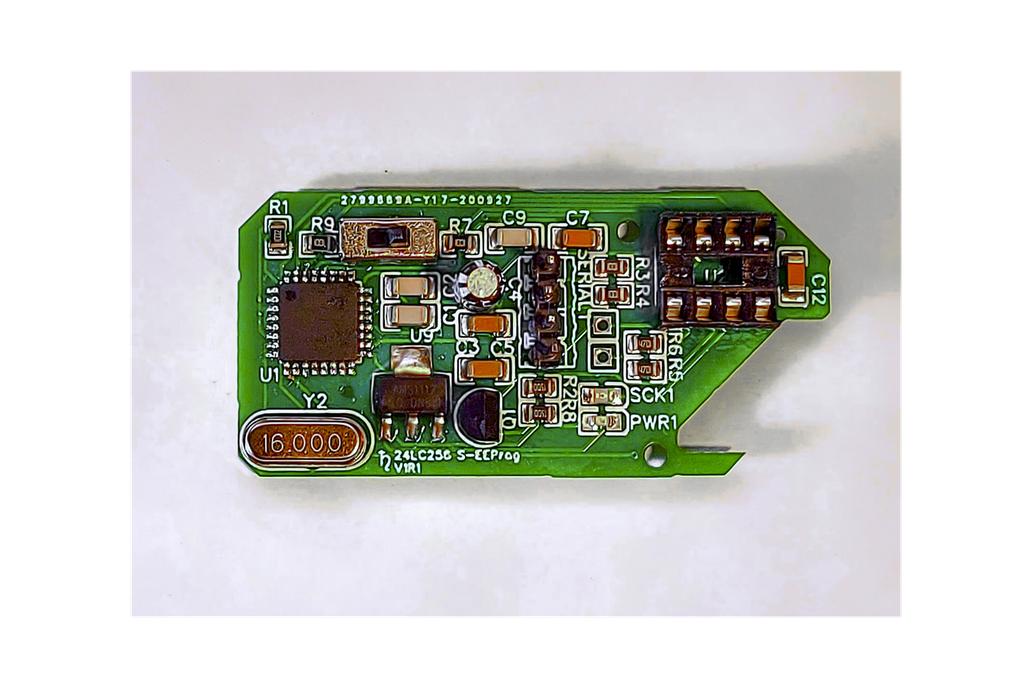

Serial EEPROM Programmer 24LC256 allows the user to easily and quickly read/write any 24LC256 EEPROM, just plug in your memory and you are ready to go!

Its recommended to power this programmer with no less than 5V, the suggested range being 5-20V.

Interfacing the programmer

Use it as an integrated system, connect your device to the serial port, and use a baud rate of your choice at the moment of order (by default is 9600). Check the serial commands in the documentation! The documentation will be uploaded before 10/13/2020

Use it as a desktop USB programmer, connect your FT232 to the device and download the desktop application (Windows only). The application is undergoing final test and will soon be uploaded.

Features

Writing protection allows the user's EEPROM to last longer avoiding overwriting of a cell memory with the same value.

Find value function inbuilt, scanning the EEPROM and helping the user to find one or more values.

Desktop application to perform any kind of operation within you EEPROM, including importing and exporting in .bin format is currently being developed by our team.

Integrated system functionalities to be further explored in the documentation, allowing the user to perform low level tasks such as reading/writing/finding a single memory cell, or a range of cells with a page size of 128 bytes (that could be changed at the moment of order).

Take active part into the development being among the first 4 users to buy and receive special features based on your feedback!
