Please Note: we're making these kits available for the INIT HELLO conference initially, and will not ship orders placed outside the conference until the conference is over!

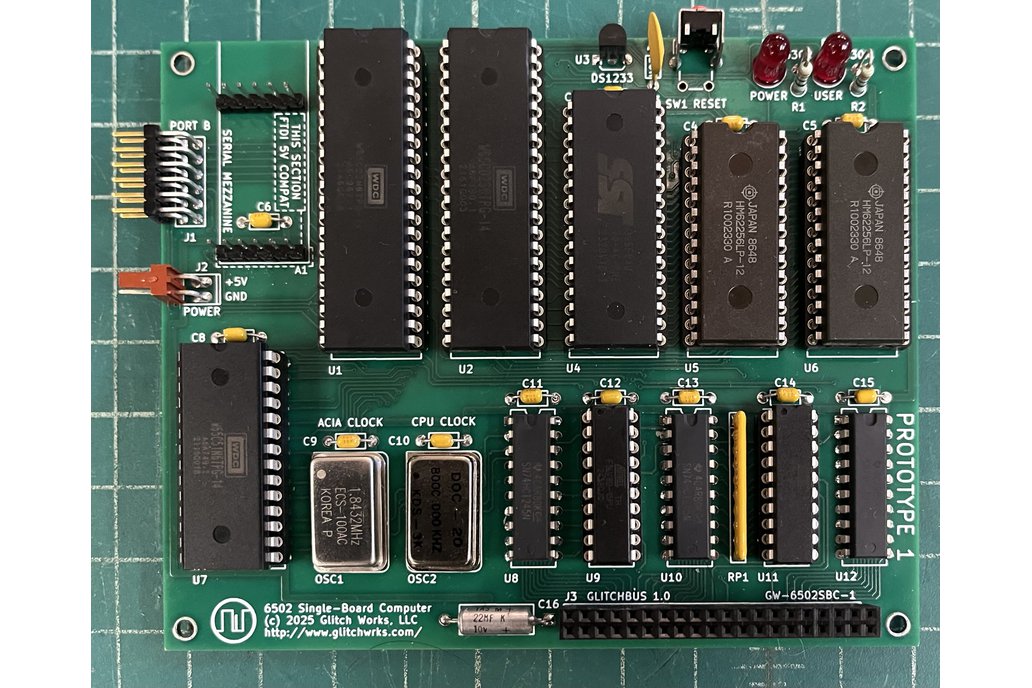

The Glitch Works 6502 SBC rev 1 is an 6502-based single board computer with Glitchbus expansion. Features include:

• WDC W65C02S CPU at 8 MHz
• 64K onboard static RAM, compatible with FeRAM
• 512K Flash ROM, 4K paged, with EhBASIC
• WDC W65C51N serial console
• WDC W65C22N VIA for board control functions, timers, I/O
• Software controlled power-on jump, Flash chip paging
• Glitchbus expansion header
• Reset debounce and low-voltage supervisor
• Pre-programmed Flash chip with GWMON-65 monitor and EhBASIC 2.22
• Single 5V supply operation
• "FTDI cable" compatible serial port header, can supply power
• All decode logic in two 16V8 GALs, equations included
• User's manual and assembly guide with full schematics, theory of operation

This project is available as a bare board, full parts kit or assembled and tested. The parts kit includes all components you need to assemble the basic SBC kit, including pre-programmed 512K Flash chip and Atmel AT16V8B GALs.

Manual, including schematics and GAL equations:

GW-6502SBC-1_MANUAL.PDF

Github repository for GWMON-65 can be found here:

https://github.com/glitchwrks/gwmon-65

EhBASIC customization can be found on Github as well:

https://github.com/glitchwrks/gw_ehbasic
