Clock kit with HDSP yellow LED matrix display

Name: Clock kit with HDSP yellow LED matrix display
SKU: 2869
Price: 40.00 USD
Availability: InStock
Rating: 5.00 (2 reviews)

(2 Reviews)

Clock with miniature 8-character avionics LED matrix display

Designed by florinc in Canada

Clock kit with HDSP yellow LED matrix display 1

Clock kit with HDSP yellow LED matrix display 2

Clock kit with HDSP yellow LED matrix display 3

Clock kit with HDSP yellow LED matrix display 4

Clock kit with HDSP yellow LED matrix display 5

Clock kit with HDSP yellow LED matrix display 6

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Clock with miniature 8-character avionics LED matrix display

What is it? Make an Arduino-compatible clock that displays time as HH.MM.SS on a 8-character vintage-style yellow LED matrix micro display. Why did you make it? This is the only kit on the market tha…

What is it?

Make an Arduino-compatible clock that displays time as HH.MM.SS on a 8-character vintage-style yellow LED matrix micro display.

Why did you make it?

This is the only kit on the market that uses the HDSP intelligent display. The kit is now 100% through hole, and there is a choice of USB connector: straight (cable plugged in at the bottom of the board) or right angle (cable plugged in through the back of the board), see this post.

What makes it special?

Small form factor, easy to assemble (suitable for beginners), Arduino-compatible, hackable and re-programmable, low current consumption (30mA average), useful desk gadget.

The kit comes with ATmega328 processor pre-programmed. Bootloader uses 8MHz internal clock. Kit includes DS1307 RTC, with battery backup (keeps time even when clock not powered). Clock board plugs directly into a phone cradle/dock charger with miniB USB connector (use/source your own, not included in the kit).

Currently shipping with the latest mod, which displays proverbs, see this post: http://timewitharduino.blogspot.ca/2014/09/hdsp-clock-mod-displays-proverbs.html

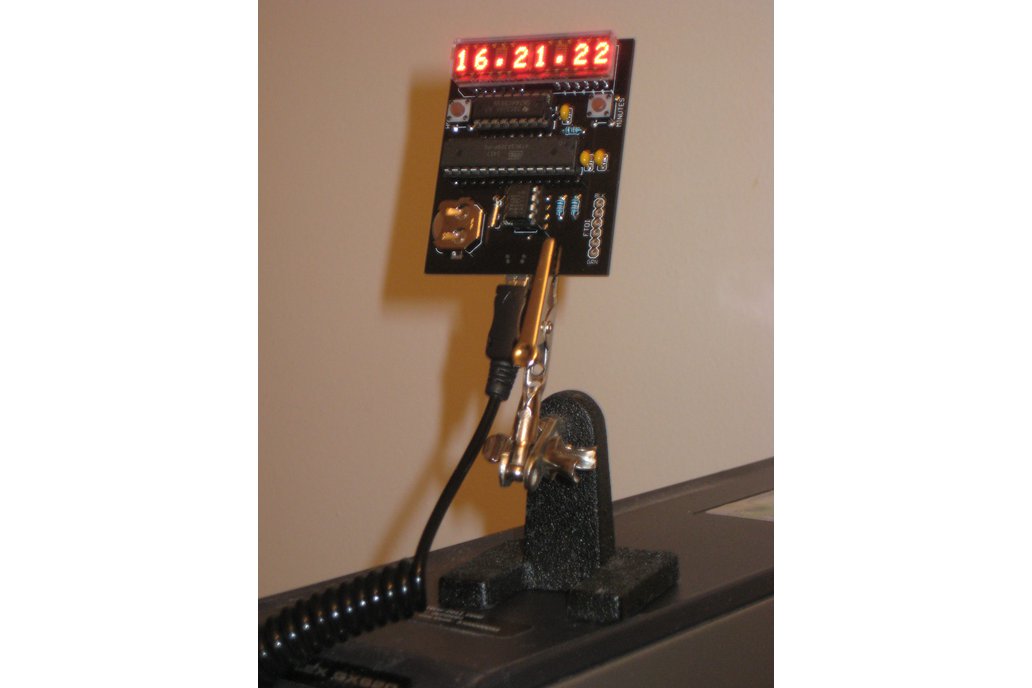

The display could be also installed vertically through the use of a right-angle male header, as shown in the last two photos.

Check out the latest generation of this kit, "WiFiChron", also available in the store, which uses a more accurate RTC (DS3231) and has support for WiFi (ESP8266).
