STM32F7 Discovery Kit

Name: STM32F7 Discovery Kit
SKU: 17141
Price: 42.00 USD
Availability: Discontinued

The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontollers based on ARM® Cortex®-M7

Sold By Engin

This seller is taking a break until Oct. 1, 2025. Sign up below to get an email when they're back!

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

Visit Store

More From Engin:

JTAG to SWD Adapter for ST-Link, J-Link or others

Engin

$9.80

ESDAQ-Data Acquisition System-13 DIO, 8 AI, 2 AO

Engin

$50.00

Practical Load Bank

Engin

$16.00

ESMOD-IO 8 INPUT 8 OUTPUT 4 ANALOG INPUT MODBUS

Engin

$50.00

More "Hackaday" Related Products

FlippenHeimer -Geiger Counter for the Flipper Zero

Erwin Ried

$44.99

Buderus KM271 WiFi Replacement

Moles Store

$46.00

USB-C for PS4 controller

Marius Heier

$10.00

Louder ESP32

Sonocotta

$24.00

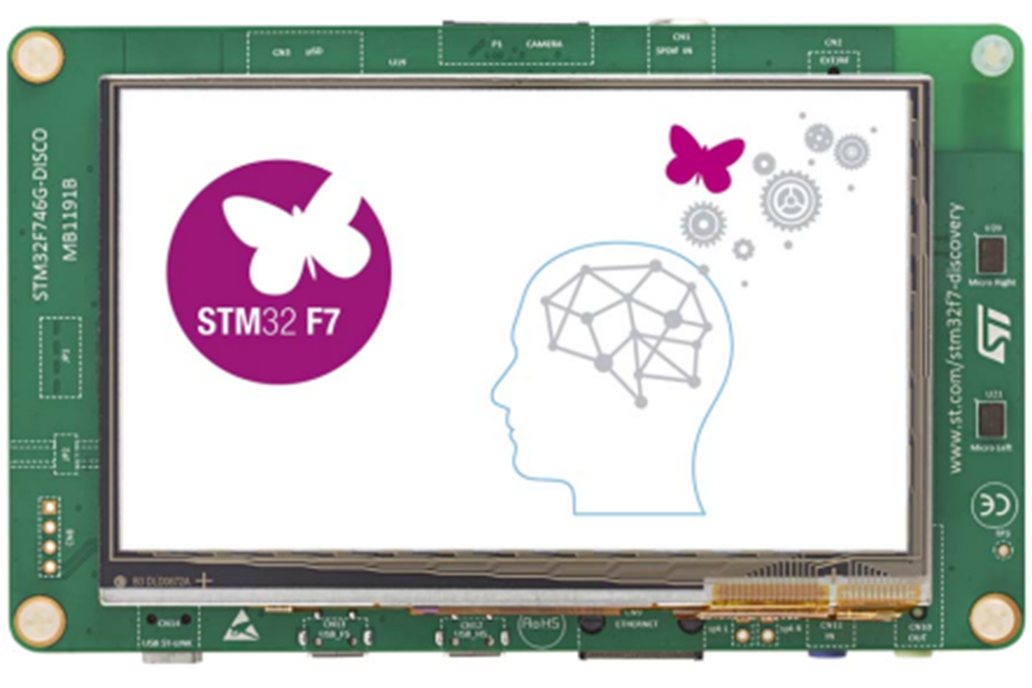

2019-05-27T23:28:49.791Z-stm32f746g-disco-stm32f7-discovery-kit-with-stm32f746ng-mcu-st-link-v2-1-development-board.jpg



The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontollers based on ARM® Cortex®-M7

Summary The discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features. The Arduino connect…

Summary

The discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features. The Arduino connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Features

STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
On-board ST-LINK/V2-1 supporting USB re-enumeration capability
Mbed-enabled (mbed.org)
USB functions: virtual COM port, mass storage, debug port
4.3-inch 480x272 color LCD-TFT with capacitive touch screen
Camera connector
SAI audio codec
Audio line in and line out jack
Stereo speaker outputs
Two ST MEMS microphones
SPDIF RCA input connector
Two pushbuttons (user and reset)
128-Mbit Quad-SPI Flash memory
128-Mbit SDRAM (64 Mbits accessible)
Connector for microSD card
RF-EEPROM daughterboard connector
USB OTG HS with Micro-AB connectors
USB OTG FS with Micro-AB connectors
Ethernet connector compliant with IEEE-802.3-2002
Five power supply options:
ST LINK/V2-1
USB FS connector
USB HS connector
VIN from Arduino connector
External 5 V from connector
Power supply output for external applications: 3.3 V or 5 V
Arduino Uno V3 connectors
Comprehensive free software including a variety of examples, part of STM32Cube package
Supported by a wide choice of integrated development environments
