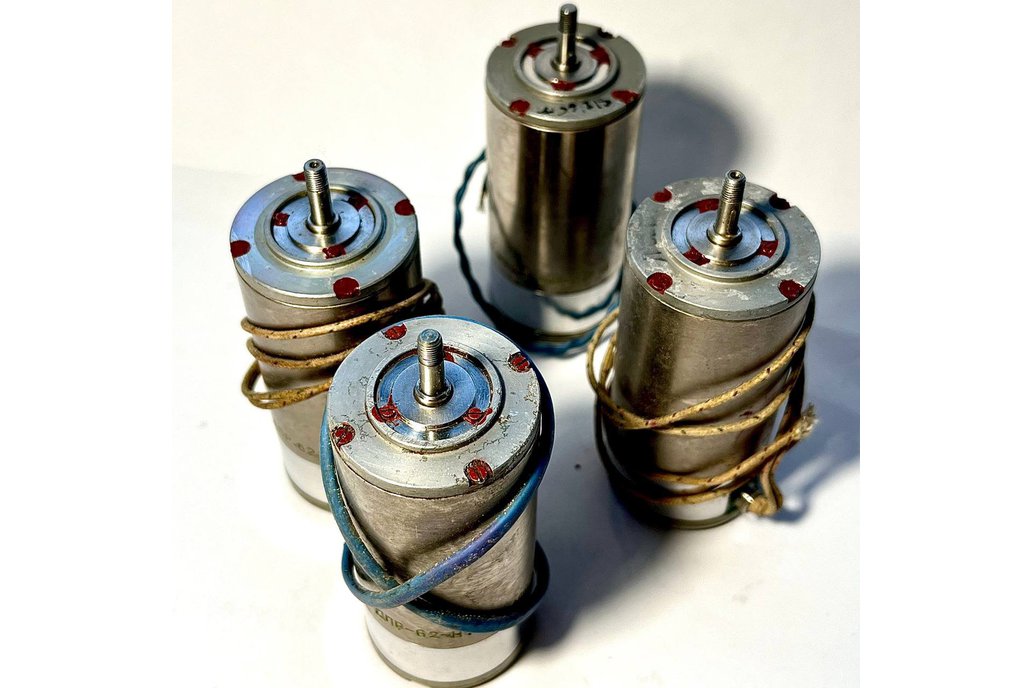

Lot 8 DPR-62-N1-03 The DPR-62-N1-03 is a DC commutator motor with permanent magnet excitation, designed for 27V nominal voltage, a power output of 4.6W, and a single output shaft end. It is mounted by the motor housing using non-magnetic metallic fasteners.

It is intended for use as a power motor for driving various mechanisms in short-term, intermittent, and continuous operation modes. The motor is used in automation, radio electronics, and telemetry systems as a drive for various general and specialized equipment mechanisms.

This reversible motor operates in both directions of shaft rotation. It is non-flange-mounted, secured by its housing. The operating mode is continuous, and its spatial working position is arbitrary. The motor is marked with an alphanumeric code on the housing.

The motor operates under the following conditions: • Ambient temperature: -60°C to +70°C • Atmospheric pressure: 535 to 3040 GPa • Relative humidity: 98% at 40°C • Vibration resistance: frequency range 5–2000 Hz with acceleration up to 10g • Shock resistance: impact loads up to 50g

The guaranteed storage period is at least 12 years from the date of customer acceptance.

Marking Decoding: DPR-62-N1-03 • DPR – Commutator motor with permanent magnet excitation, hollow frameless armature. • 62 – Size number. • N1 – Design type: non-flange mounting, secured by the housing, single output shaft end. • 03 – Serial number based on nominal specifications.

Technical and Operational Characteristics: • Supply voltage, V: 27 • Nominal power, W: 4.6 • Speed, rpm: 4500 • Nominal torque, mN·m: 9.8 • Starting torque, mN·m: 54 • Current consumption, A: 0.32 • Starting current, A: 3.4 • Efficiency, %: 53 • Guaranteed service life, hours: 2500 • Weight, kg: 0.41
