Features:

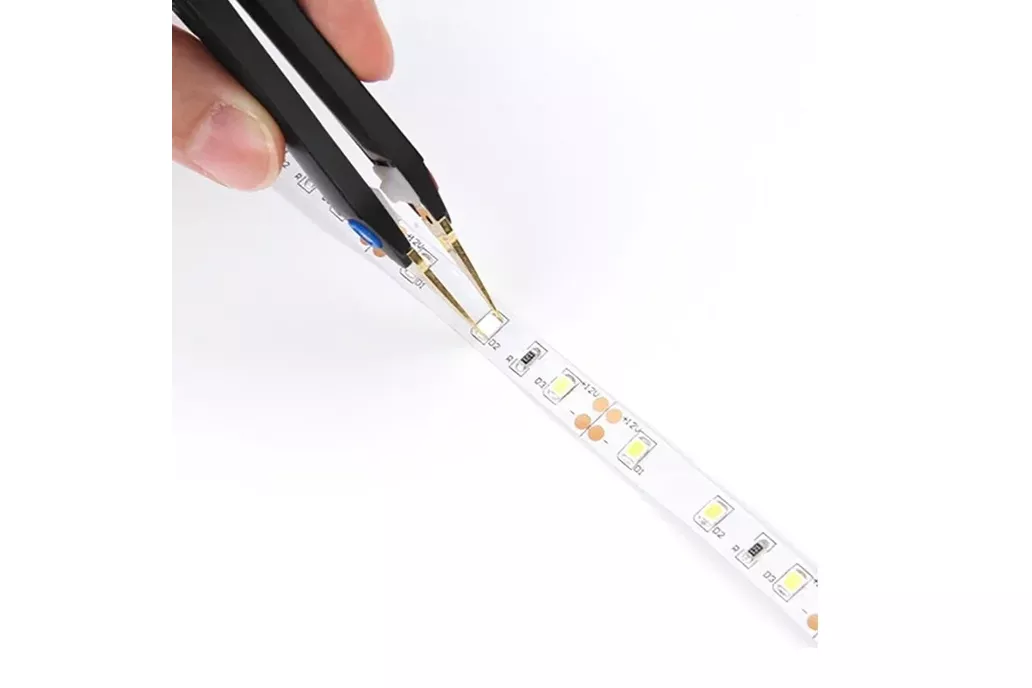

DT71 Mini Digital Tweezers is a tool for multi-function measurements with full differential input measurement. DT71 has a unique trinary structure, which can be separated into the controller, testing arms, and tweezer tips, which are flexible to be replaced and combined. Innovative trinary structure: separated into the controller, testing arms, and tweezer tips, which are flexible to be replaced and combined. 360° rotatable controller with OLED screen, with good viewing angles. Smart gesture recognition with automatic identification of left/right-hand operation and adjusting the screen orientation accordingly. Hidden touch button on top of the controller, which makes it easy to operate with only a light touch. Test arms use magnetic elasticity to provide an easy clipping, ergonomic, and long-lasting structure. Built-in dual lithium batteries in test arms, balancing both arms and providing a longer standby time. Several kinds of gold-plated interchangeable tweezer tips, enabling higher measurement accuracy in various usages. Automatically identify SMDs including resistor, capacitor, inductor, and diode, showing both main and secondary parameters. A built-in signal generator can output a variety of waveform signals.

Specification:

Product Specifications

Operation time

10 hrs (in continuous operation)

Charging time

2 hrs

Display

96*16 OLED

Size

Controller

47mm

Test Arms

106mm

Weight

22g

Operation

Hidden touch button

Measurement Specifications

Range

Resolution

Accuracy

Resistance

0.1Ω~1KΩ

0.1Ω

0.5%+2

1KΩ~2000KΩ

1KΩ

0.5%+2

Capacitance

0.1pF~1000pF

0.1pF

2%+3

0.001uF~400uF

0.001uF

2%+3

Inductance

1uH~1000uH

1uH

5%+3

1mH~50mH

1mH

5%+3

Voltage

1mV~100mV

1mV

2%+5

0.1V~40V

0.1V

1%+3

Frequency

10Hz~1KHz

10Hz

0.1%+3

1KHz~20000KHz

1KHz

0.1%+3

Diode

silicon diodes, Schottky diodes, LEDs (+0.1~3V)

0.1V

1%

Max input voltage

-5V~+50V

Source Impedance

1MΩ

Functions

Automatic Identification

Yes

Designated measurements

Yes

Continuity and Diode testing

Yes

Signal generator

SINE

Support: 10KHz, 5KHz, 2KHz, 1Khz, 500Hz, 200Hz

NOISE

Support: 100KHz

USER

Support: 10KHz, 5KHz, 2KHz, 1Khz, 500Hz, 200Hz

PULSE

Support: 100KHz, 0KHz, 20Khz, 10KHz, 5KHz, 2KHz, 1Khz, 500Hz, 200Hz

Package includes:

1 x DT71 Controller

1 x Test Arms

2 x Tweezer Tips

1 x Data Cable

1 x Charging Cable

1 x Carrying Case

1 x User Manual
