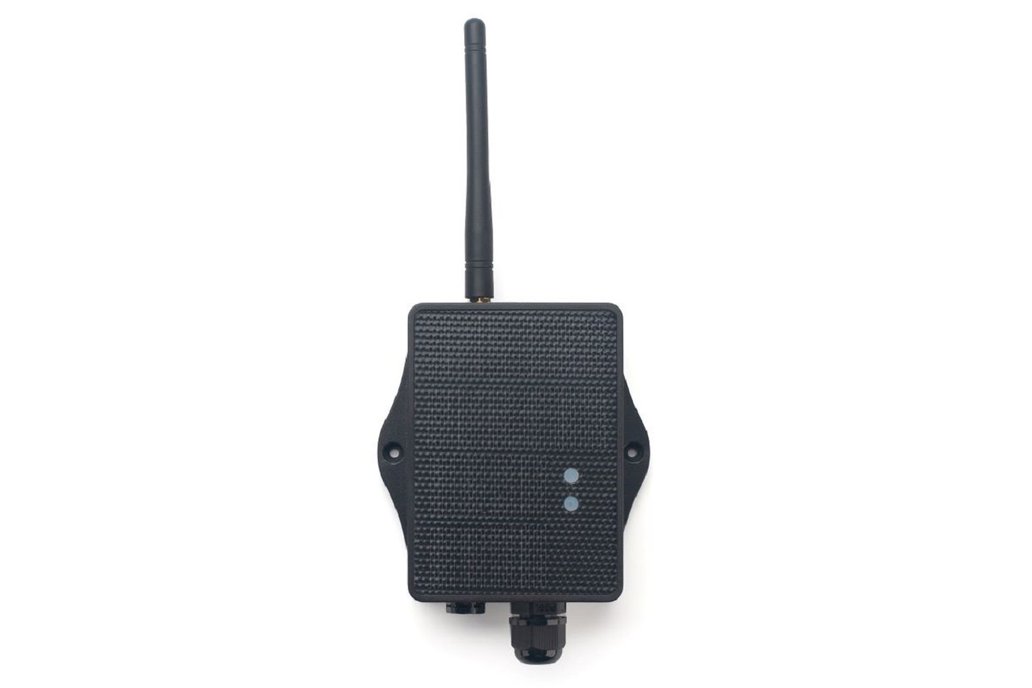

** The Dragino RS485-LS is a RS485 / UART to LoRaWAN Converter for Internet of Things solutions. User can connect RS485 or UART sensor to RS485-LS converter, and configure RS485-LS to periodically read sensor data and upload via LoRaWAN network to IoT server.

** RS485-LS can interface to RS485 sensor, 3.3v/5v UART sensor or interrupt sensor. RS485-LS provides a 3.3v output and a 5v output to power external sensors. Both output voltages are controllable to minimize the total system power consumption.

** RS485-LS is IP67 waterproof and powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery it is designed for long term use for several years.

** RS485-LS runs standard LoRaWAN 1.0.3 in Class A. It can reach long transfer range and easy to integrate with LoRaWAN compatible gateway and IoT server.

** For data uplink, RS485-LS sends user-defined commands to RS485 devices and gets the return from the RS485 devices. RS485-LB/LS will process these returns data according to user-define rules to get the final payload and upload to LoRaWAN server.

** For data downlink, RS485-LB/LS runs in LoRaWAN Class A. When there is downlink commands from LoRaWAN server, RS485-LS will forward the commands from LoRaWAN server to RS485 devices.

** RS485-LS Supports BLE configure and wireless OTA update which make user easy to use.

** Each RS485-LS pre-load with a set of unique keys for LoRaWAN registration, register these keys to LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN 1.0.3 Class A
• Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865/RU864/MA869
• Ultra-low power consumption
• Support multiply RS485 devices by flexible rules
• Support Modbus protocol
• Support Interrupt uplink
• Supports connecting a UART sensors with 3.3V or 5V
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• AT Commands to change parameters
• Uplink on periodically
• Downlink to change configure
• 8500mAh Li/SOCl2 Battery (RS485-LB)
• Solar panel + 3000mAh Li-ion battery (RS485-LS)

Applications:

• Smart Buildings & Home Automation
• Logistics and Supply Chain Management
• Smart Metering
• Smart Agriculture
• Smart Cities
• Smart Factory

Specifications:

Common DC Characteristics:

• Supply Voltage: Built-in Battery, 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

I/O Interface:

• Battery controllable output (2.6v ~ 3.6v depends on battery)
• +5v controllable output
• 1 x RS485 Interface
• 1 x UART Interface , 3.3v or 5v
• 1 x Interrupt or Digital IN/OUT pins
• 1 x I2C Interface
• 1 x one wire interface

LoRa Spec:

• Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.
• Excellent blocking immunity

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption:

• Sleep Mode: 5uA @ 3.3v
• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Documents:

• DataSheet, Document Base
• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

1 x RS485-LS RS485/UART to LoRaWAN Converter Dimensions and Weight: Device Size: 9.7 x 6.5 x 4.7 cm Device Weight: 150g Package Size / pcs : 14.0 x 8x 5 cm Weight / pcs : 180g

Order Info:

Part Number：RS485-LS-XX-YY

XX: the default frequency band

EU433: Default frequency band EU433 CN470: Default frequency band CN470 EU868: Default frequency band EU868 IN865: Default frequency band IN865 KR920: Default frequency band KR920 AS923: Default frequency band AS923 AU915: Default frequency band AU915 US915: Default frequency band US915 YY:

12: With M12 IP68 waterproof cable hole 16: With M16 IP68 waterproof cable hole
