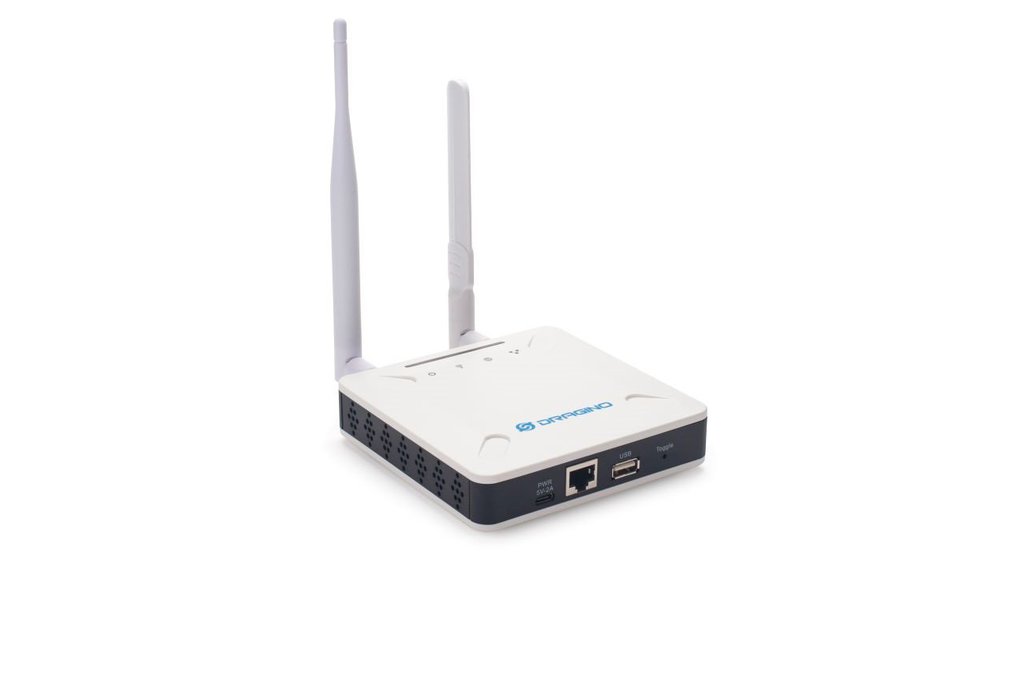

The LPS8v2 is an open-source LoRaWAN Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi , Ethernet or Cellular Network (via Optional 4G module). The LoRa wireless allows users to send data and reach extremely long ranges at low data rates.

The LPS8v2 is fully compatible with LoRaWAN protocol. It supports different kinds of LoRaWAN Network Connections such as: Semtech UDP Packet Forwarder, LoRaWAN Basic Station, ChirpStack MQTT Bridge, and so on. This makes LPS8V2 work with most LoRaWAN platforms in the market.

LPS8v2 also includes a built-in LoRaWAN Server and IoT server, which provide the possibility for the system integrator to deploy the IoT service without cloud service or 3rd servers.

Different countries use different LoRaWAN frequency bands. LPS8v2 has these bands pre-configured. Users can also customize the frequency bands to use in their own LoRa network.

LPS8v2 supports remote management. System Integrator can easy to remote monitor the gateway and maintain it.

Features:

• Open Source OpenWrt system
• Managed by Web GUI, SSH via LAN or WiFi
• Remote Management
• Auto-provisioning for batch deployment and management
• LoRaWAN Gateway
• 10 programmable parallel demodulation paths
• Pre-configured to support different LoRaWAN regional settings.
• Allow customizing LoRaWAN regional parameters.
• Different kinds of LoRaWAN Connections such as:
• Semtech UDP Packet Forwarder
• LoRaWAN Basic Station
• ChirpStack-Gateway-Bridge (MQTT)
• Built-in Node-Red local Application server .
• Built-in ChirpStack local LoRaWAN server.

Applications:

• Smart Buildings & Home Automation
• Logistics and Supply Chain Management
• Smart Metering
• Smart Agriculture
• Smart Cities
• Smart Factory

Specifications:

Hardware System:

• CPU: Quad-core Cortex-A7 1.2Ghz
• RAM: 512MB
• eMMC: 4GB

Interface:

• 10M/100M RJ45 Ports x 1
• Multi-Channel LoRaWAN Wireless
• WiFi 802.11 b/g/n
• Max Output Power: 27dBm
• Sensitivity: -140dBm

Operating Condition:

• Work Temperature: -20 ~ 70°C
• Storage Temperature: -20 ~ 70°C
• Power Input: 5V, 2A, DC

Documents:

• Datasheet,Document Base
• User Manual -- Online Latest
• Shared Folder for all Dragino Products
• Dragino LoRa Gateway Selection Guide

Package:

Package Includes:

• 1 x LPS8v2 LoRaWAN Gateway
• 1 x LoRa Antenna
• 1 x USB Type C Charge
• Enviromental Package

Dimensions and Weight:

• Device Size: 12 x 12 x 3 cm
• Device Weight: 187g
• Package Size: 14.5 x 13.5 x 6 cm
• Weight: 300g

Order info:

LPS8v2-XXX-YYY

XXX: Frequency Band

• AS923: LoRaWAN AS923 band
• AU915: LoRaWAN AU915 band
• EU868: LoRaWAN EU868 band
• KR920: LoRaWAN KR920 band
• US915: LoRaWAN US915 band
• IN865: LoRaWAN IN865 band

YYY: For Cellular/4G option

• EC25-E: EMEA, Korea, Thailand, India
• EC25-AFX: America: Verizon, AT&T(FirstNet), U.S.Cellular; Canada: Telus
• EC25-AUX: Latin America, New Zeland, Taiwan
• EC25-J: Japan, DOCOMO, SoftBank, KDDI More info about valid bands, please see EC25-E product page

Shipping Notice: - Note: Prices are exclusive of local taxes and import duties.
