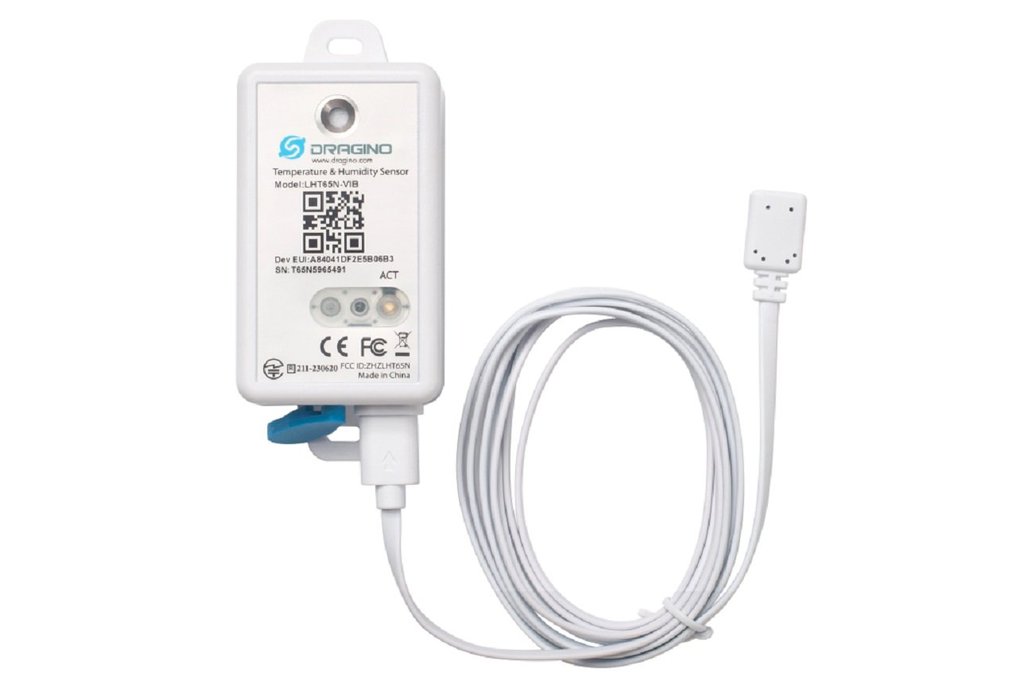

** The Dragino LHT65N-VIB LoRaWAN Vibration Sensor is designed to detect and measure vibrations, shocks, or accelerations of an object. By analyze the motion of the object, LHT65N-VIB can send meaningful resulte such as: Alarm, device runtime, counting, vibration strenght to IoT platform for further analyze.

** It targets professional wireless sensor network applications such as monitoring equipment status, water leakage alarm, usage statistics, vibration intensity detection, etc.

** The LHT65N-VIB allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

* LHT65N-VIB has a built-in 2400mAh non-chargeable battery which can be used for more than 3 years.

** LHT65N-VIB is fully compatible with LoRaWAN v1.0.3 Class A protocol, it can work with a standard LoRaWAN gateway.

** The actual battery life depends on how often to send data, please see battery analyzer chapter.

Features:

• LoRaWAN v1.0.3 Class A protocol
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
• Detecting object vibration status
• Detect vibration alarm
• 3-axis accelerator for x,y,z
• Calcula device runtime
• Built-in Temperature & Humidity sensor
• Built-in 2400mAh battery for long time use
• Firmware upgradable via program port
• Remote confgure parameters via LoRaWAN Downlink
• AT Commands to change parameters

Specifications:

• Built-in Temperature Sensor:

• Resolution: 0.01 °C

• Accuracy Tolerance : Typ ±0.3 °C
• Long Term Drift: < 0.02 °C/yr
• Operating Range: -40 ~ 85 °C

• Built-in Humidity Sensor:

• Resolution: 0.04 %RH

• Accuracy Tolerance : Typ ±3 %RH
• Long Term Drift: < 0.25 RH/yr
• Operating Range: 0 ~ 96 %RH

• External Vibration Sensor:

• Detecting object vibration status

• accelerator for x,y,z
• Small size for easy installation

Documents:

• DataSheet, Document Base,Certificate
• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

• 1 x LHT65N-VIB LoRaWAN Vibration Sensor

Dimension and weight:

• Device Size: cm
• Weight: g
• Package Size: cm
• Weight: g

Order Info:

Part Number: LHT65N-VIB-XXX

XXX: The default frequency band

AS923: LoRaWAN AS923 band AU915: LoRaWAN AU915 band EU433: LoRaWAN EU433 band EU868: LoRaWAN EU868 band KR920: LoRaWAN KR920 band US915: LoRaWAN US915 band IN865: LoRaWAN IN865 band CN470: LoRaWAN CN470 band

Shipping Notice

• We only support express shipping because of included battery
• Prices are exclusive of local taxes and import duties
