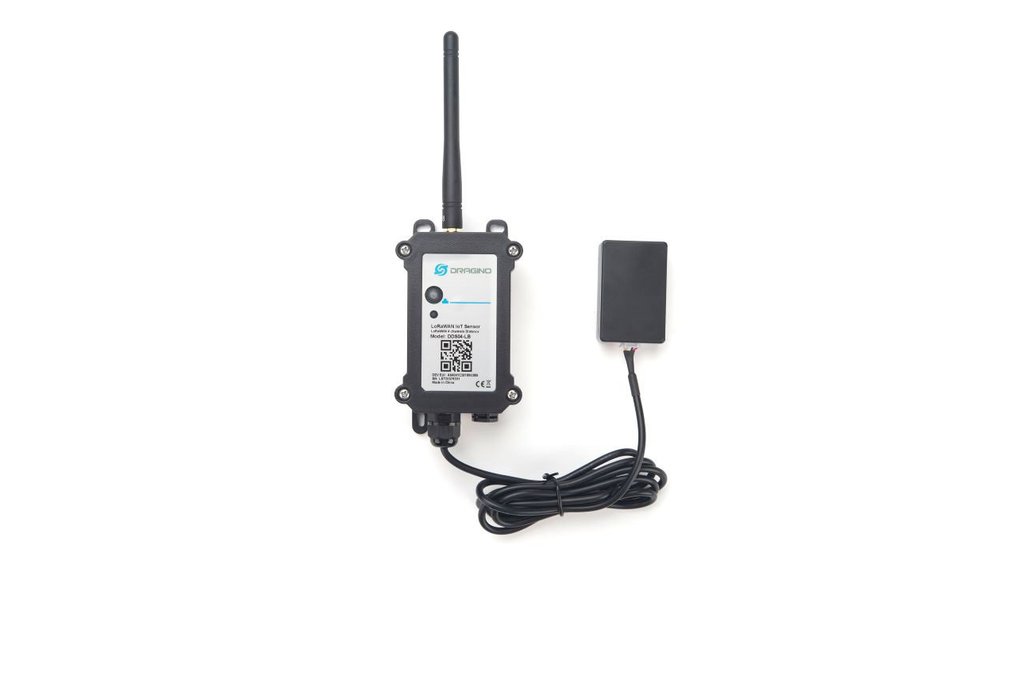

The Dragino DDS04-LB is a LoRaWAN 4-Channels Distance Sensor for Internet of Things solution. It is capable to add up to four Ultrasonic Sensors to measure four distances at the same time.

The DDS04-LB can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.

It detects the distance between the measured object and the sensor, and uploads the value via wireless to LoRaWAN IoT Server.

The LoRa wireless technology used in DDS04-LB allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

DDS04-LB supports BLE configure and wireless OTA update which make user easy to use.

DDS04-LB is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery, it is designed for long term use up to 5 years.

Each DDS04-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

**Features:

• LoRaWAN 1.0.3 Class A
• Ultro low power consumption
• Distance Detection by Ultrasonic technology
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• AT Commands to change parameters
• Downlink to change configure
• IP66 Waterproof Enclosure
• 8500mAh Li/SOCl2 Battery

Applications:

• Horizontal distance measurement
• Liquid level measurement
• Parking management system
• Object proximity and presence detection
• Intelligent trash can management system
• Robot obstacle avoidance
• Automatic control, sewer
• Bottom water level monitoring

Specification:

Common DC Characteristics:

• Supply Voltage: Built-in Battery , 2.5v ~ 3.6v

• Operating Temperature: -40 ~ 85°C LoRa Spec:

• Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz

• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.

• Excellent blocking immunity Battery:

• Li/SOCI2 un-chargeable battery

• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA

• Max boost current: 2A, 1 second Power Consumption:

• Sleep Mode: 5uA @ 3.3v

• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Documents:

• DataSheet, Document Base
• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

• 1 x DDS04-LB LoRaWAN 4-Channels Distance Sensor

Dimensions and Weight:

• Package Dimension: 15012055mm
• Weight : 220g

Order info

DDS04-LB-XXX:

XXX: the default frequency band

• EU868: Default frequency band EU868
• CN470: Default frequency band CN470
• EU433: Default frequency band EU433
• IN865: Default frequency band IN865
• KR920: Default frequency band KR920
• AS923: Default frequency band AS923
• AU915: Default frequency band AU915
• US915: Default frequency band US915

Please view the picture to select the appropriate probe

**Shipping Notice

We only support express shipping because of included battery
Prices are exclusive of local taxes and import duties
