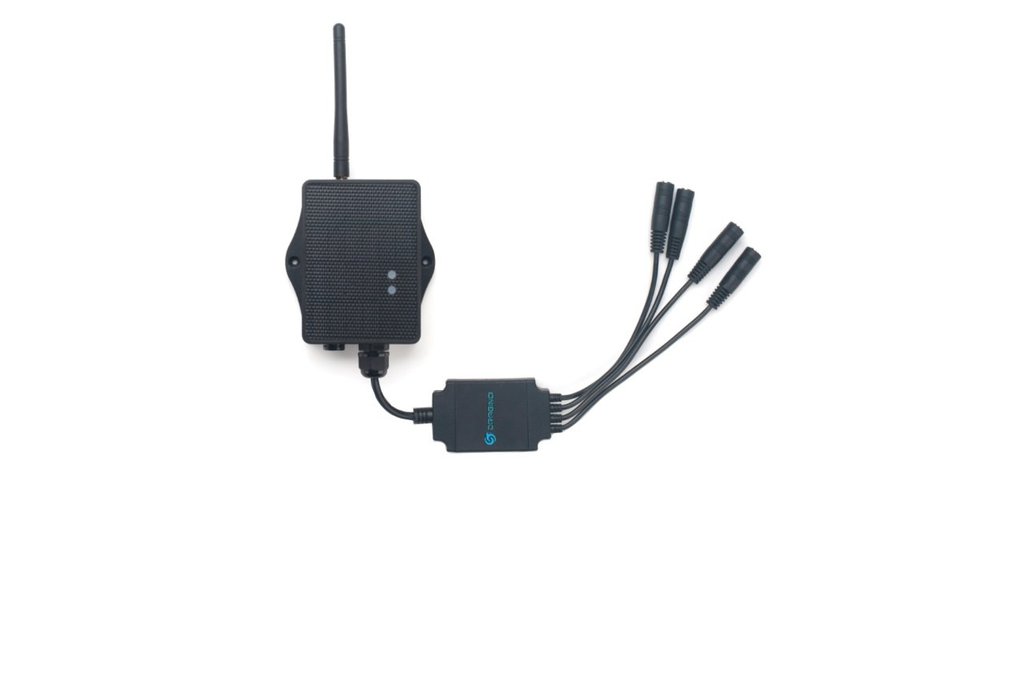

The Dragino CS01-NS is a 4 Channels Current Sensor Converter. It can convert the reading from current sensors and upload to IoT server via NB-IoT Network.

CS01-NS can be used to monitor the machine running status and analyze power consumption trends.

The CS01-NS supports maximum 4 current sensors. The current sensors are detachable and can be replaced with different scales.

CS01-NS supports BLE con­figure and wireless OTA update which makes user easy to use.

CS01-NS is powered by 8500mAh Li-SOCI2 battery or solar panel with Li-ion battery, it is designed for long-term use up to several years.

Features:

• NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD
• Ultra-low power consumption
• Supports maximum 4 current sensors
• Support various current sensor Ratio: 100A/50mA, 300A/50mA, 600A/50mA
• Monitor the machine running status
• Analyze power consumption trends
• Current Alarm
• Uplink on periodically
• Downlink to change configure
• Support Bluetooth v5.1 remote configure and OTA update firmware
• Solar panel + 3000mAh Li-ion battery

Applications:

• Machine Monitor
• Car Charging Pile
• Solar Inverter
• Building Electric Monitor

Specification:

Common DC Characteristics:

• Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C Current Sensor Spec:

SCT013G-D-100:

• Split core current transformer
• Spec: 100A/50mA

• φ16mm Aperture SCT024-300:

• Split core current transformer

• Spec: 300A/50mA

• φ24mm Aperture SCT036-600:

• Split core current transformer

• Spec: 600A/50mA
• φ36mm Aperture

NB-IoT Spec:

NB-IoT Module: BC660K-GL

Support Bands:

• B1 @H-FDD: 2100MHz
• B2 @H-FDD: 1900MHz
• B3 @H-FDD: 1800MHz
• B4 @H-FDD: 2100MHz
• B5 @H-FDD: 860MHz
• B8 @H-FDD: 900MHz
• B12 @H-FDD: 720MHz
• B13 @H-FDD: 740MHz
• B17 @H-FDD: 730MHz
• B18 @H-FDD: 870MHz
• B19 @H-FDD: 870MHz
• B20 @H-FDD: 790MHz
• B25 @H-FDD: 1900MHz
• B28 @H-FDD: 750MHz
• B66 @H-FDD: 2000MHz
• B70 @H-FDD: 2000MHz

• B85 @H-FDD: 700MHz Battery:

• Li/SOCI2 un-chargeable battery

• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA

• Max boost current: 2A, 1 second Power Consumption:

• Sleep Mode: 5uA @ 3.3v

• Max transmit power: 350mA@3.3v

Documents:

• DataSheet, Document Base
• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

• CS01-NS NB-IoT 4 Channels Current Sensor Converter x 1
• External antenna x 1

Dimension and weight:

• Device Size:
• Device Weight:

Order Info:

CS01-NS-XXX:

XX - GE: General version ( Exclude SIM card) - 1T: with 1NCE * 10 years 500MB SIM card and Pre-configure to ThingsEye server

Notice: This part number doesn’t include the current sensor. Users need to purchase separately.

Reference Model for current sensor:

• SCT013G-D-100: 100A/50mA
• SCT024-300: 300A/50mA
• SCT036-600: 600A/50mA

Shipping Notice

• We only support express shipping because of included battery
• Prices are exclusive of local taxes and import duties
