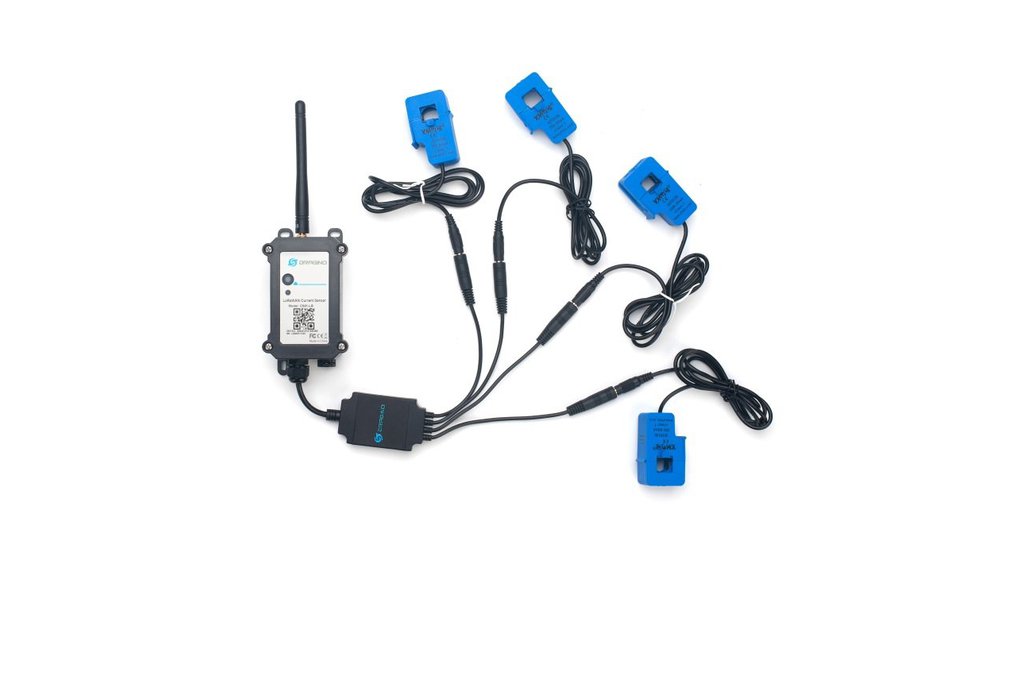

The Dragino CS01-LB is a 4 Channels Current Sensor Converter. It can convert the reading from current sensors and upload to IoT server via LoRaWAN Network.

CS01-LB can be used to monitor the machine running status and analyze power consumption trends.

The CS01-LB supports maximum 4 current sensors. The current sensors are detachable and can be replaced with different scales.

CS01-LB supports BLE con­figure and wireless OTA update which makes user easy to use.

CS01-LB is powered by 8500mAh Li-SOCI2 battery , it is designed for long-term use up to several years.

Features:

• LoRaWAN 1.0.3 Class A
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Ultra-low power consumption
• Supports maximum 4 current sensors
• Support various current sensor Ratio: 100A/50mA, 300A/50mA, 600A/50mA
• Monitor the machine running status
• Analyze power consumption trends
• Current Alarm
• Uplink on periodically
• Downlink to change configure
• Support BLE and LoRaWAN remote configure
• Support wireless OTA update firmware
• 8500mAh Li/SOCl2 Battery

Applications:

• Machine Monitor
• Car Charging Pile
• Solar Inverter
• Building Electric Monitor

Specification:

Common DC Characteristics:

• Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C Current Sensor Spec:

SCT013G-D-100:

• Split core current transformer
• Spec: 100A/50mA

• φ16mm Aperture SCT024-300:

• Split core current transformer

• Spec: 300A/50mA

• φ24mm Aperture SCT036-600:

• Split core current transformer

• Spec: 600A/50mA

• φ36mm Aperture LoRa Spec:

• Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz

• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.

• Excellent blocking immunity Battery:

• Li/SOCI2 un-chargeable battery

• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA

• Max boost current: 2A, 1 second Power Consumption:

• Sleep Mode: 5uA @ 3.3v

• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Documents:

• DataSheet, Document Base
• User Manual -- Online Latest
• Shared Folder for all Dragino Products

Package Includes:

• CS01-LB LoRaWAN 4 Channels Current Sensor Converter x 1

Dimension and weight:

• Device Size:
• Device Weight:

Order Info:

CS01-LB-XXX:

XXX: the default frequency band

• EU433: Default frequency band EU433
• CN470: Default frequency band CN470
• EU868: Default frequency band EU868
• IN865: Default frequency band IN865
• KR920: Default frequency band KR920
• AS923: Default frequency band AS923
• AU915: Default frequency band AU915
• US915: Default frequency band US915

Shipping Notice

• We only support express shipping because of included battery
• Prices are exclusive of local taxes and import duties
