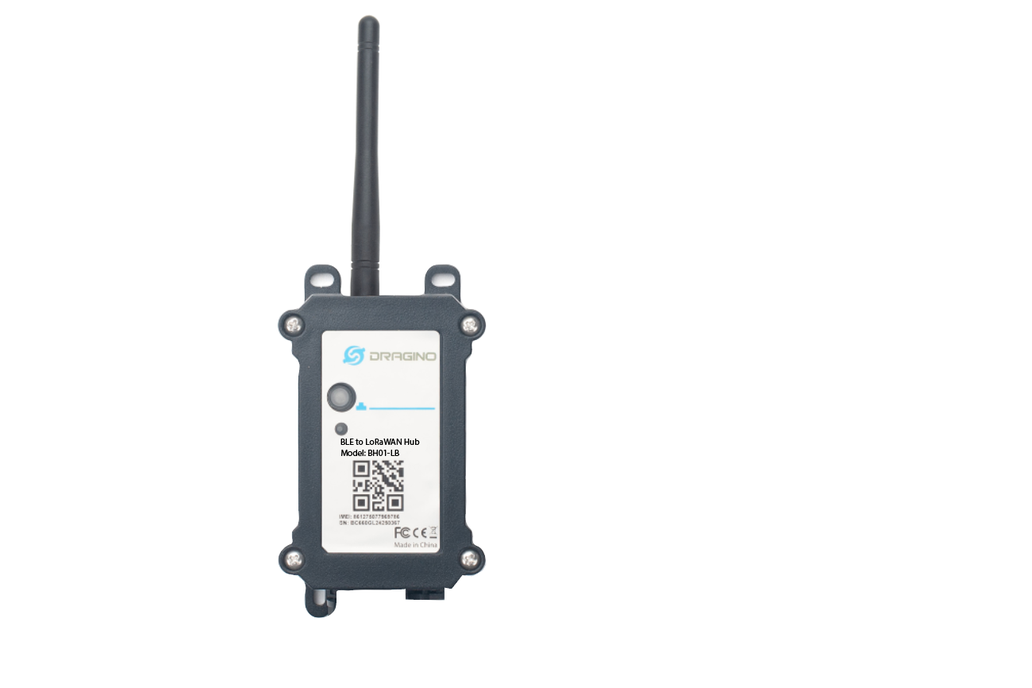

Dragino BH01-LB BLE to LoRaWAN Hub is an edge communication node device designed for loT applications. It uses the BLE Bluetooth module to periodically scan and collect data from surrounding Bluetooth temperature and humidity sensors (such as BCN02, iBeasons or third-party BLE sensors), and then uses the LoRaWAN protocol to transmit the data over long distances to the cloud platform, achieving seamless connection between Bluetooth devices and low-power wide area networks.

BH01-LB is a BLE to LoRaWAN Hub which can turn BLE devices to LoRaWAN devices. This feature can help system intergrator has widely choice in sensor selection and simplify the network structure.

It is suitable for cold chain warehouse monitoring, smart agricultural environment monitoring, asset tracking and urban infrastructure health management. It combines the fexibility of Bluetooth and the wide coverage of LoRaWAN. Compared with wifi connection, it can siginifcantly reduce the deployment cost of the Internet of Things.

BH01-LB has a built-in BLE module, user can configure the sensor remotely via Mobile Phone. It also support OTA upgrade via private LoRa protocol for easy maintaining.

BH01-LB is powered by 8500mA Li/SOCl2 battery or solar panel with Li-ion battery for long term use.

Features:

• LoRaWAN 1.0.3 Class A
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Ultra-low power consumption
• Data collcetion: Bluetooth tags monitor environmental parameters in real time - and upload data to the Hub via BLE protocol
• Combines BLE’s short-range precision with LoRaWAN’s Long range transmission
• Monitor Battery Level
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• Uplink on periodically
• Downlink to change configure
• 8500mAh Li/SOCl2 Battery

Application: - ColdChain Logistics - Smart Factory Monitoring - Warehouse Monitoring - Greenhouse Monitoring

Bluetooth Sensor Tag Specifcation:

DR-TAH02:

• Bluetooth version: Bluetooth LE 5.1 protocol
• Shell material: PET composite plastic bag (heat sealed)
• Temperature range: -40°C ~ +85°C, ±0.3°C
• Waterproof level: IP67
• Battery capacity: 600mAh
• Working temperature: -40°C ~ +60°C
• Battery specifcation: CR2450
• Data storage: 512 records
• Battery life: 3 years (varies with the transmission powerand broadcast frequency settings)
• Transmit power: -19.5dBm ~ +2.5dBm (confgurable)
• Broadcast frequency: 500ms (confgurable)
• Sampling frequency: 5min/time (confgurable)
• Broadcast power consumption: 22uA (varies with the transmission power and broadcast frequency settings)
• Broadcast mode: Custom Sensor broadcast
• Broadcast distance Distance: 100m (varies with thetransmission power setting)
• Confguration APP: nRF connect (Android / IOS)

DR-ES01:

• Bluetooth version: Bluetooth LE 5.3 protocol
• Casing material: PC material
• Temperature range: 0°C ~ +85°C, ±0.2°C
• Waterproof level: IP65
• Battery capacity: 1100mAh
• Working temperature: 0°C ~ +85°C
• Battery specifcation: AAA LR03 x2
• Battery life: 3 years (varies with the transmission powerand broadcast frequency settings)
• Transmit power: -20dBm ~ +4dBm (confgurable)
• Broadcast frequency: 1000ms (confgurable)
• Humidity range: 0~100%RH, ±2%RH
• Broadcast power consumption: 34uA (varies with the transmission
• power and broadcast frequency settings)
• Supported system: Android 4.3 / IOS7.0 and above
• Broadcast mode: Custom Sensor broadcast
• Broadcast distance Distance: 100m (varies with thetransmission power setting)
• Confguration APP: nRF connect (Android / IOS)
• Supported system: Android 4.3 / IOS7.0 and above

Documents: - DataSheet, Document Base - User Manual -- Online Latest - Shared Folder for all Dragino Products

Package Includes:

• BH01-LB Bluetooth to LoRaWAN Hub Dimensions and Weight:

• Device Size: cm

• Device Weight: g
• Package Size / pcs : cm
• Weight / pcs : g

Part Number: BH01-LB-XX

XX: The default frequency band

• AS923: LoRaWAN AS923 band
• AU915: LoRaWAN AU915 band
• EU433: LoRaWAN EU433 band
• EU868: LoRaWAN EU868 band
• KR920: LoRaWAN KR920 band
• US915: LoRaWAN US915 band
• IN865: LoRaWAN IN865 band
• CN470: LoRaWAN CN470 band

Note: Model BH01-LB doesn't include Bluetooth Tags. Bluetooth Tags are purchased seperately.

Bluetooth Tags Option: DR-TAH02 , DR-ES01
