What is it?

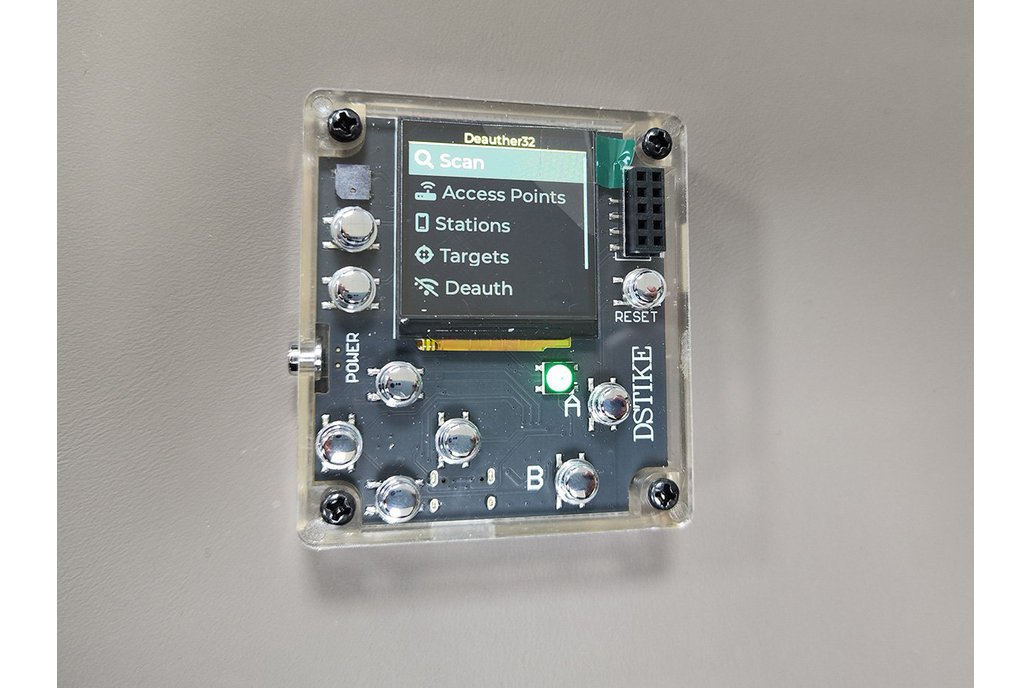

It is an ESP32-S3 Development Board with 1.54" Color Display

Meet the all-in-one ESP32-S3 Development Board, a compact and powerful open-source platform designed for wireless experiments, IoT projects, and creative DIY applications. Featuring a 1.54-inch full-color display, eight control buttons, and a built-in buzzer, this board provides a perfect combination of performance, expandability, and aesthetics.

Key Features

• Powerful ESP32-S3 chip – Dual-core processor with Wi-Fi and Bluetooth 5.0 support.
• 1.54" color TFT display – Clear, vibrant visuals for interfaces and data display.
• 8 responsive buttons – Up, Down, Left, Right, A, B, Menu Up, Menu Down — ideal for games or menu navigation.
• Built-in buzzer – For sound effects, alarms, or interactive feedback.
• 6 external GPIO ports – Expand functionality easily with sensors, LEDs, or external modules.
• Pre-flashed with Deauther 32 – Instantly ready for Wi-Fi testing and network experiments.
• Independent charging system – Integrated lithium battery charging circuit for portable use.
• Transparent enclosure – Sleek, modern look that showcases your hardware.

Ideal For

• Wi-Fi and IoT experiments
• Custom handheld devices
• Game development on ESP32
• Wireless testing and education
• Creative DIY electronics projects

Hardware Info

• ESP32S3 N16R8 (16MB Flash 8MB PSRAM)
• Buzzer(GPIO40)
• ButtonUP(GPIO17)
• ButtonDOWN(GPIO15)
• ButtonLEFT(GPIO18)
• ButtonRIGHT(GPIO16)
• ButtonA(GPIO4)
• ButtonB(GPIO5)
• WS2812B RGBLED(6)
• ST7789 Display
• BACKLED(GPIO3)
• DC(GPIO0)
• CS(GPIO48)
• SCK(GPIO47)
• SDA(GPIO21)
• RESET(GPIO14)

Power chip AXP2101

• IIC SDA(GPIO8)
• IIC SCL(GPIO9)
• IRQ(GPIO7)

Arduino Info

• Board: ESP32S3 Dev Module
• USB CDC On Boot: "Enabled"
• CPU Frequency:"240MHz(WiFi)"
• Core Debug Level:"None"
• USB DFU on Boot:"Disabled"
• Erase All Flash Before Sketch Upload:"Disabled"
• Events Run On:"Core 0"
• Flash Mode:"QIO 120MHz"
• Flash Size:"16MB(128Mb)"
• JTAG Adapter:"Disabled"
• Arduino Runs On:"Core 1"
• USB Firmware MSC on Boot:"Disabled"
• Partition Scheme:"16M Flash(3MB APP/9.9 FATFS)"
• PSRAM:"OPI PSRAM"
• Upload Mode:"USB-OTG CDC(TinyUSB)"
• Upload Speed:"921600"
• USB Mode:"USB-OTG CDC(TinyUSB)"

Code

www.deauther.com

Power

Pressing the power switch or reset switch for 1 seconds toggles power on. Pressing the power switch for 6 seconds to toggles power off. Charging begins upon inserting the data cable.
