Take Control of Your Network Experiments

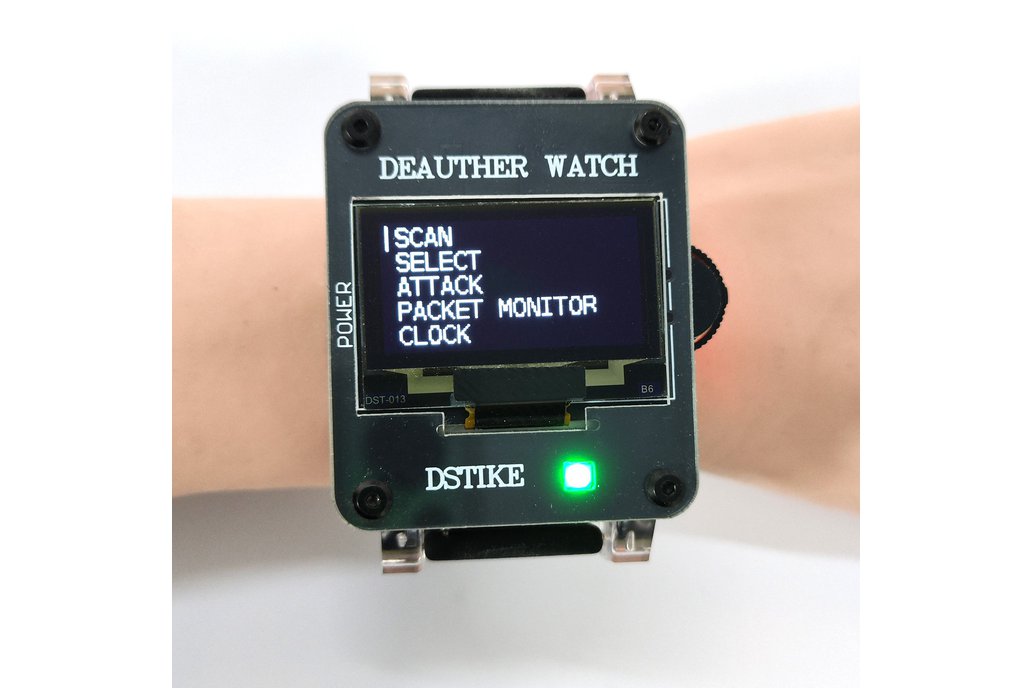

The Deauther Watch is not just a timepiece; it's a powerful ESP8266 development board integrated into a wearable form factor. Designed for security enthusiasts, developers, and white-hat hackers, this tool allows you to perform WiFi authentication tests, explore wireless protocols, and develop your own ESP8266 software.

Key Features

• WiFi Security Testing: Pre-installed with the latest Deauther software. Perform deauth attacks, beacons, and probes to test your network's vulnerability.

• Highly Extensible: It’s an open-source ESP8266 development platform. Use the Arduino IDE to flash your own scripts and turn it into any smart device you imagine.

• Long-lasting Power: Equipped with an 700mAh lithium battery and a built-in charging circuit, providing up to 7-8 hours of active use.

• Intuitive Interface: Features a 1.3-inch OLED display and a 3-way momentary slide switch for seamless navigation through menus.

• Full Protection: Comes with a 3D-printed case and a transparent acrylic cover to protect the delicate PCB while showing off its "cyberpunk" internal structure.

Technical Specifications

Function

• Deauther Attack: Disconnect 2.4G WiFi
• Deauther Beacon: Create fake networks
• Deauther Probe：Confuse wifi trackers
• Packet Monitor：Display wifi traffic
• Clock：Display Real Time Clock
• LED：Flashlight

Deauth

Closes the connection of WiFi devices by sending deauthentication frames to access points and client devices you selected. This is only possible because a lot of devices don't use the 802.11w-2009 standard that offers a protection against this attack. Please only select one target! When you select multiple targets that run on different channels and start the attack, it will quickly switch between those channels and you have no chance to reconnect to the access point that hosts this web interface.

Beacon

Beacon packets are used to advertise access points. By continuously sending beacon packets out, it will look like you created new WiFi networks. You can specify the network names under SSIDs.

Probe

Probe requests are sent by client devices to ask if a known network is nearby. Use this attack to confuse WiFi trackers by asking for networks that you specified in the SSID list. It's unlikely you will see any impact by this attack with your home network.

What's in the Box?

• 1 x Deauther Watch (Assembled)
• 1 x USB Data Cable
• 1 x Quick Start Guide

Disclaimer

I designed this development board especially for Spacehuhn's great project: ESP8266 Deauther. It has been authorized by him and is officially supported. This project is a proof of concept for testing and educational purposes. Neither the ESP8266, nor its SDK was meant or built for such purposes. Bugs can occur!

This device is intended for educational and testing purposes only. Please use it responsibly and in accordance with local laws and regulations regarding network security and privacy.

Attention

When the RGB indicator light is off, please charge it promptly. The charging time is 4 to 5 hours. When fully charged, the indicator light changes from red to green.

FAQ

5G Support

This project is done for the ESP8266, a 2.4GHz WiFi SoC. Therefore, it cannot attack 5GHz WiFi networks.

Attack stopping after 5min

To prevent abuse, an attack timeout of 5 minutes is set by default. This is not a bug. It’s a feature. To change this, you have to edit the attackTimeout setting.

Shipping

It usually takes about 8 to 14 days to be delivered from China to the United States. Sometimes, delays may occur due to unpredictable factors such as weather and customs.

Videos

Software 2.6.0 Introduction

Programming a DSTIKE ESP8266 Smart Watch with Arduino IDE

DSTIKE Deauther Watch Demo

NTP Time server functions

Use the Deauther Watch Wi-Fi Hacking Wearable [Tutorial]
