1. Introduction

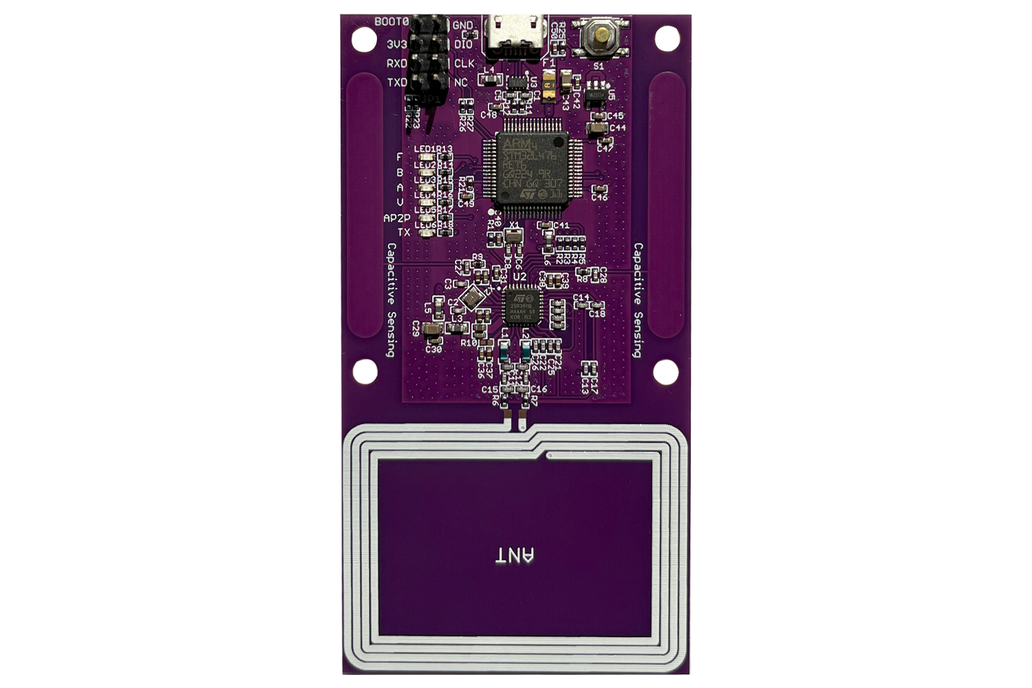

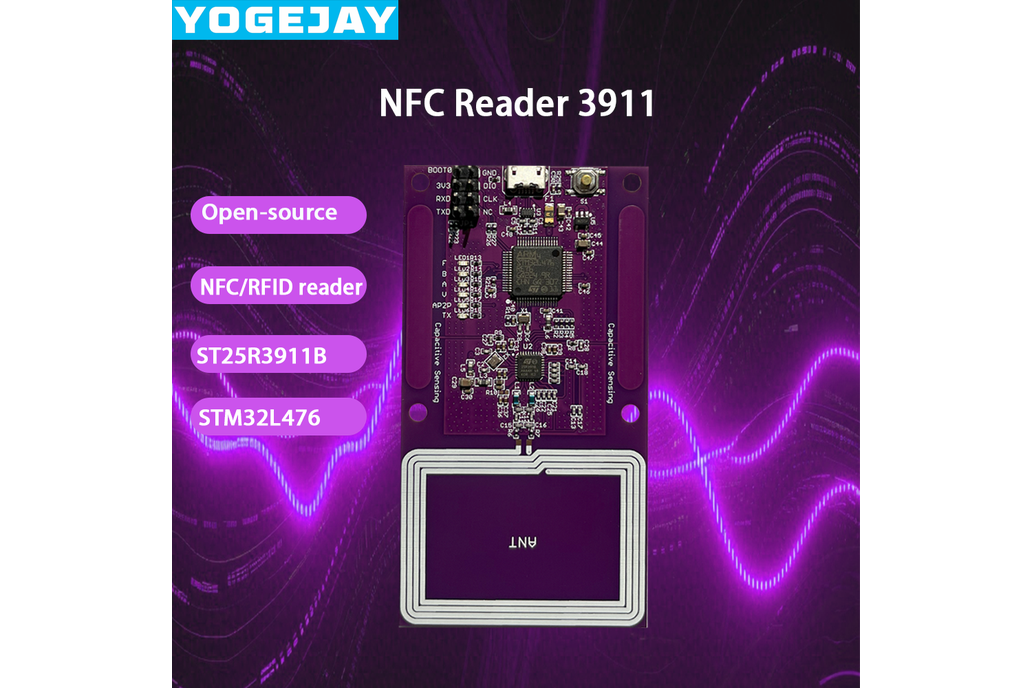

The NFC Reader 3911 is an open-source, ready-to-use development kit featuring the ST25R3911B, a highly integrated HF reader / NFC initiator IC. It is especially suitable for communicating with ST25DV via mailbox to upgrade device firmware or read or set device configurations.

1. Key Features

• Support for STSW-ST25PC001 Windows® PC software, developed to demonstrate RF communication with all ST25 tags • STM32L476RET6 32-bit microcontroller with 512 kB of Flash memory • Based on ST25R3911B high-performance HF reader / NFC initiator. • ISO 18092 (NFCIP-1) active P2P • ISO14443A, ISO14443B and FeliCa™ • ISO15693 • Micro-USB connector for communication with the host PC and board powering • Six LEDs indicating the presence of the RF field and of the protocol used to communicate

1. Package information

1 x NFC Reader 3911 development board. 1 x Micro USB with a length of 1m.

1. Dimension and weight

15 x 10 x 4 cm 90 g

1. Doc
