3.7 inch 240*416 E-paper Display Black/White E-Ink Display with SPI Communication

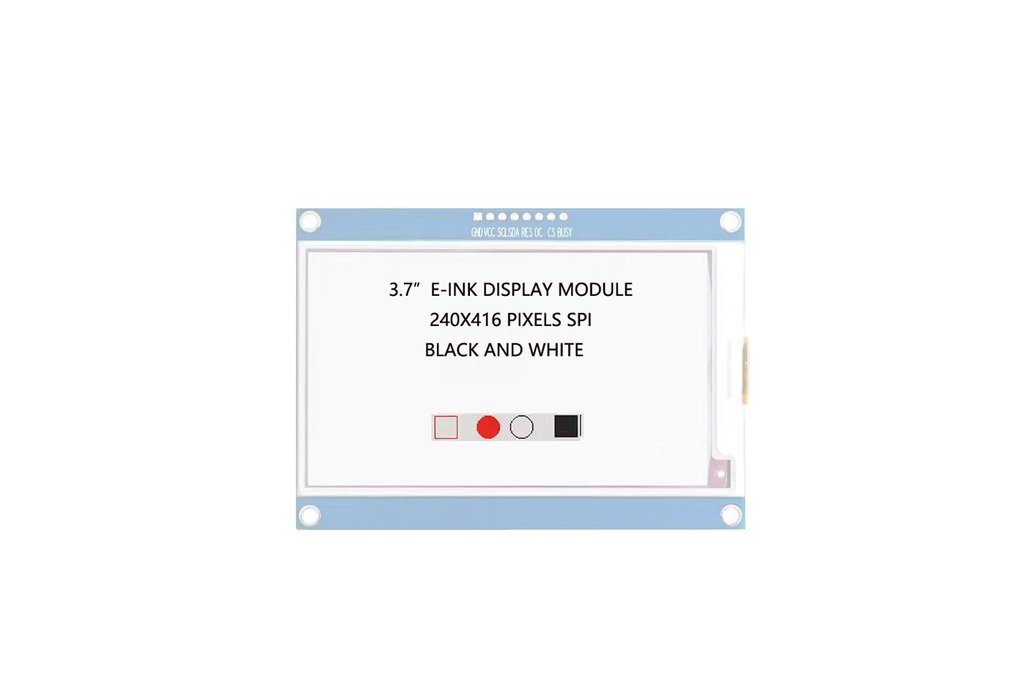

Description of 3.7 inch 240x416 eink display module :

Electronic Paper Display 3.7 inch E-ink Screen Module 416x240 Pixels Black/white/red

this 3.7" E-ink display is an Active Matrix Electrophoretic Display (AM EPD),with interface and a reference system design. The display is capable to display images at 1-bit white, black and red full display capabilities. The 3.7 inch active area contains 240×416 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL)System.

Parameter of 3.7 inch 240x416 eink display module:

• Display Mode : Active Matrix Electroph oretic Display;EPD,B/W/R
• Display Color : (black/white/red)
• Display Size:3.70 inch
• DriverlC:UC8253
• Pin No:8P
• Display Resolution: 240(H)×416(V) Pixel
• Panel Size: 67(H)×93.39 (V) ×2.6(D) (mm)
• Active Area: 47.04×81.54 (mm)
• Pixel Pitch: 0.196×0.196(mm)
• Pixel Configuration: Square
• Logic supply voltage:3.3 V
• Interface:SPI
• Operating Temperature:0~50 °C
• Storage Temperature：-25~70 °C
• Part No:ZOJKE370S08R0G01
• Weight: 8.7G±0.5

Features of 3.7 inch 240x416 eink display module:

• 240×416 pixels display
•  High contrast High reflectance
•  Ultra wide viewing angle Ultra low power consumption
•  Pure reflective mode
•  Bi-stable display
•  Commercial temperature range
•  Landscape portrait modes
•  Hard-coat antiglare display surface
•  Ultra Low current deep sleep mode
•  On chip display RAM
•  Waveform can stored in On-chip OTP or written by MCU
•  Serial peripheral interface available
•  On-chip oscillator
•  On-chip booster and regulator control for generating VCOM, Gate and Source driving
• voltage
•  I2C signal master interface to read external temperature sensor
•  Built-in temperature sensor

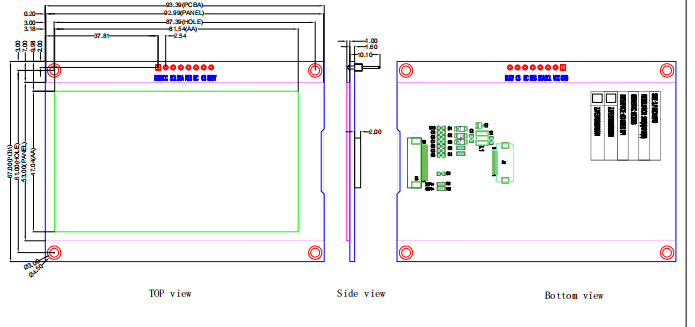

Mechanical Drawing

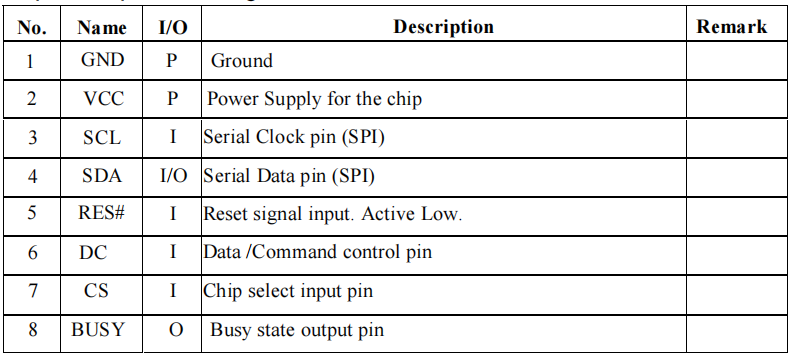

Pin out Details:

Application of 3.7 inch 240x416 eink display module:

• Electronic Shelf Label System
• Electronic price tags
• Electronic conference board

Packing Including:1x 3.70 inch 240×416 eink display Module in black/white/Red
