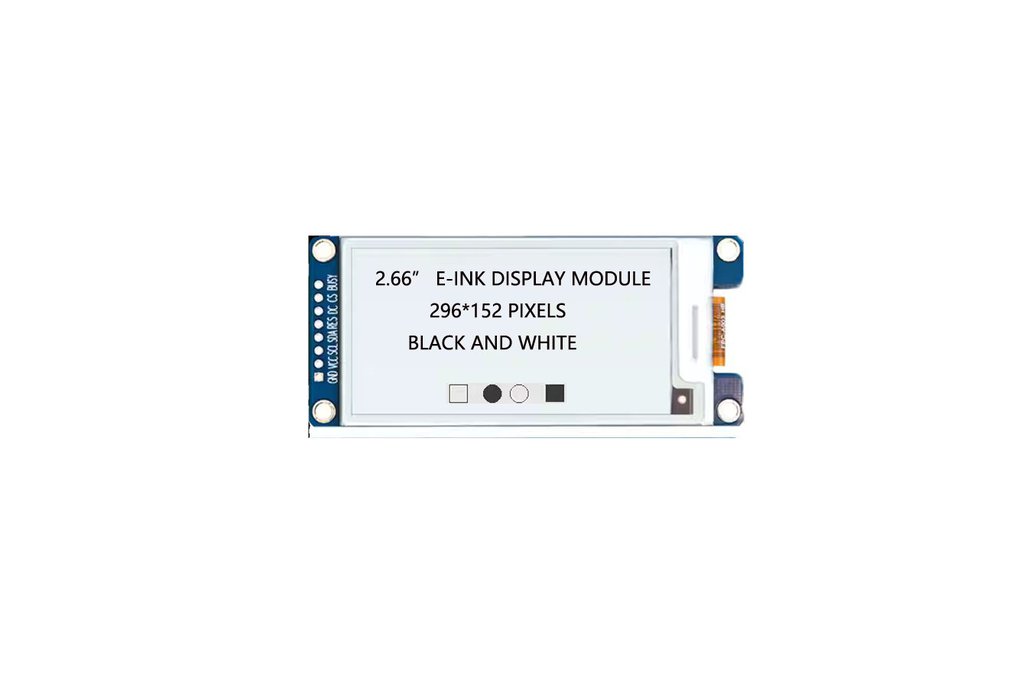

2.66 inch 296×152 E-Paper E-Ink Raw Display Module Compatible with Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W/WH/Zero 2W Series Boards 296×152 Pixels Black/White SPI Interface

Description of 2.66 inch EPD EPAPER Display screen module:

2.66 inch e-paper screen module 296×152 partial refresh 4 Grayscale

this 2.66" E-ink display is is an Active Matrix Electrophoretic Display (AM EPD), withinterface and a reference system design. The display is capable to display images at 1-bit white,black full display capabilities. The 2.66 inch active area contains 296×152 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

Parameter of 2.66 inch EPD EPAPER Display screen module:

• Display Mode : Active Matrix Electroph oretic Display;EPD,B/W
• Display Color : (black/white)
• Display Size:2.66 inch
• DriverlC:SSD1680
• Pin No:8P
• Display Resolution: 152(H)×296(V) Pixel
• Panel Size: 37.00(H)×84.00(V) ×2.2(D) (mm)
• Active Area: 30.704×60.088 (mm)
• Pixel Pitch: 0.202×0.203 (mm)
• Pixel Configuration: Rectangle
• Logic supply voltage:3.0V
• Interface:SPI
• Operating Temperature:0~50 °C
• Storage Temperature：-25~70 °C
• Part No:ZOJKE266S08W0G01
• Weight: 4.7±0.5

Features of 2.66 inch EPD EPAPER Display screen module:

•  296×152 pixels display
•  High contrast High reflectance
•  Ultra wide viewing angle Ultra low power consumption
•  Pure reflective mode
•  Bi-stable display
•  Commercial temperature range
•  Landscape portrait modes
•  Hard-coat antiglare display surface
•  Ultra Low current deep sleep mode
•  On chip display RAM
•  Waveform can stored in On-chip OTP or written by MCU
•  Serial peripheral interface available
•  On-chip oscillator
•  On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
•  I2C signal master interface to read external temperature sensor
•  Built-in temperature sensorBuilt-in temperature sensor

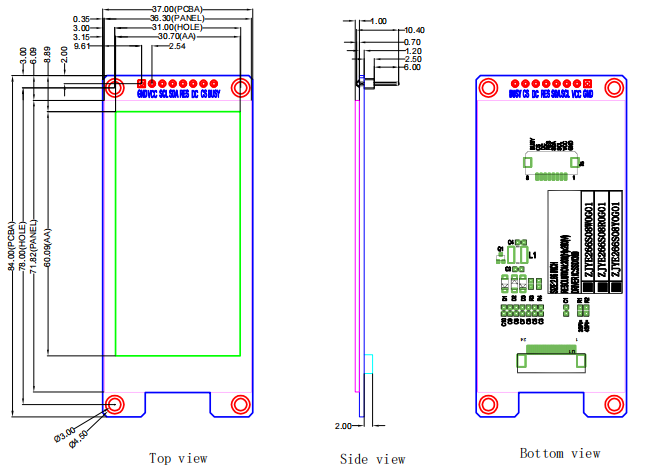

Mechanical Drawing

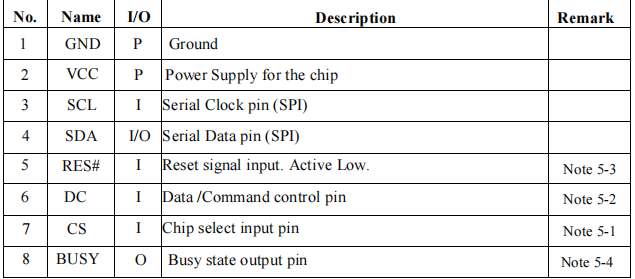

Pin out Details:

Application of 2.66 inch EPD EPAPER Display screen module:

• Electronic Shelf Label System
• Electronic price tags
• Electronic conference board

Packing Including:1x 2.66 inch 296×152 eink display Module in black/white
