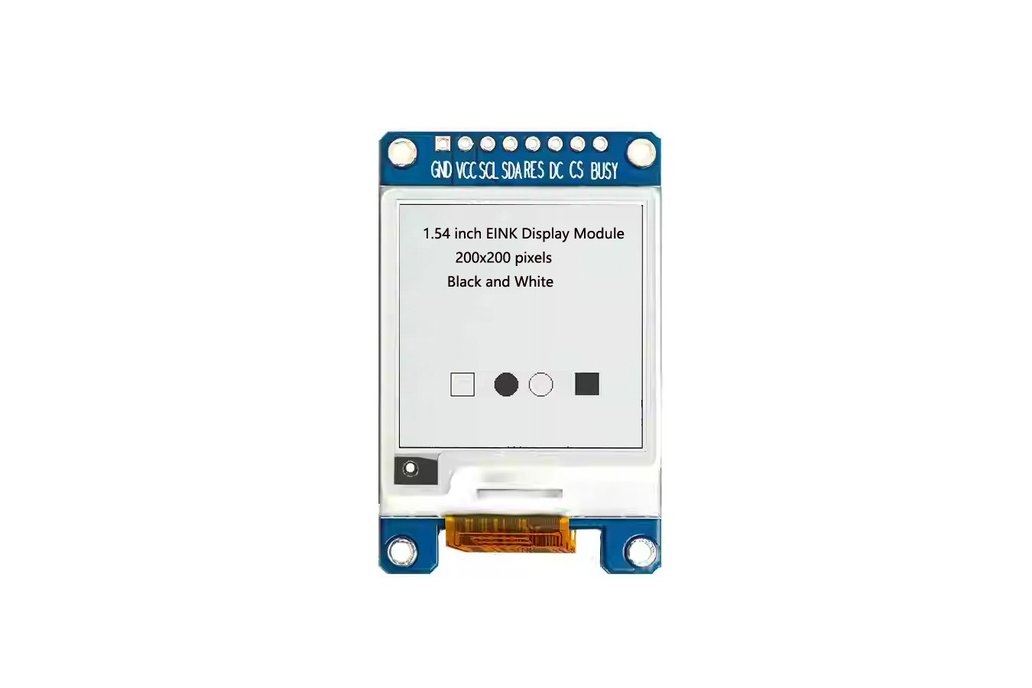

Overview of 1.54 inch E-paper display module 200x200

This 1.54" E-ink display is a TFT active matrix electrophoretic display, with interface and a reference system design. The 1.54” active area contains 200×200 pixels, and has 1-bit black/white full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.

Parameter of 1.54 inch E-paper display module 200x200:

• Display Mode : Active Matrix Electroph oretic Display;EPD,B/W
• Display Color : (black/white)
• Display Size:1.54 inch
• DriverlC:SSD1681
• Pin No:8P
• Display Resolution: 200(H)×200(V) Pixel
• Panel Size: 31.80(H)×37.32(V) ×0.98(D) (mm)
• Active Area: 27.0(H)×27.0(V) (mm)
• Pixel Pitch: 0.14×0.14 (mm)
• Pixel Configuration: Square
• Operating Voltage:3.3 V
• Interface:SPI
• Operating Temperature:0~50 °C
• Storage Temperature：-25~70 °C
• Weight:6.18±0.5

Features of 1.54 inch E-paper display module 200x200:

• High contrast
• High reflectance
• Ultra wide viewing angle
• Ultra low power consumption
• Pure reflective mode
• Bi-stable
• Commercial temperature range
• Landscape, portrait mode
• Antiglare hard-coated front-surface
• Low current sleep mode
• On chip display RAM
• Serial peripheral interface available
• On-chip oscillator
• On-chip booster and regulator control for generating VCOM, Gate and source driving
• voltage
• I2C Signal Master Interface to read external temperature sensor
• Available in COG package IC thickness 300um

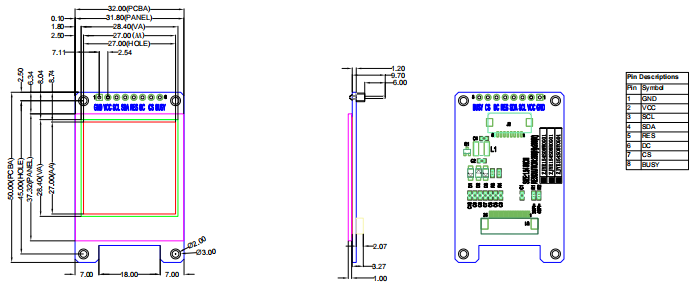

Mechanical Drawing of 1.54 inch E-paper display module 200x200

Pinout Details:

Application of 1.54 inch E-paper display module 200x200:

• Electronic Shelf Label System
• Electronic price tags
• Electronic conference board

Packing Including:1x 1.54 inch 200x200 eink display Module in black/w
