152x152 EINK SCREEN 1.54 inch E-Ink display module WITH spi INTERFACE EPAPER DISPALY PANEL red/black/white three-color

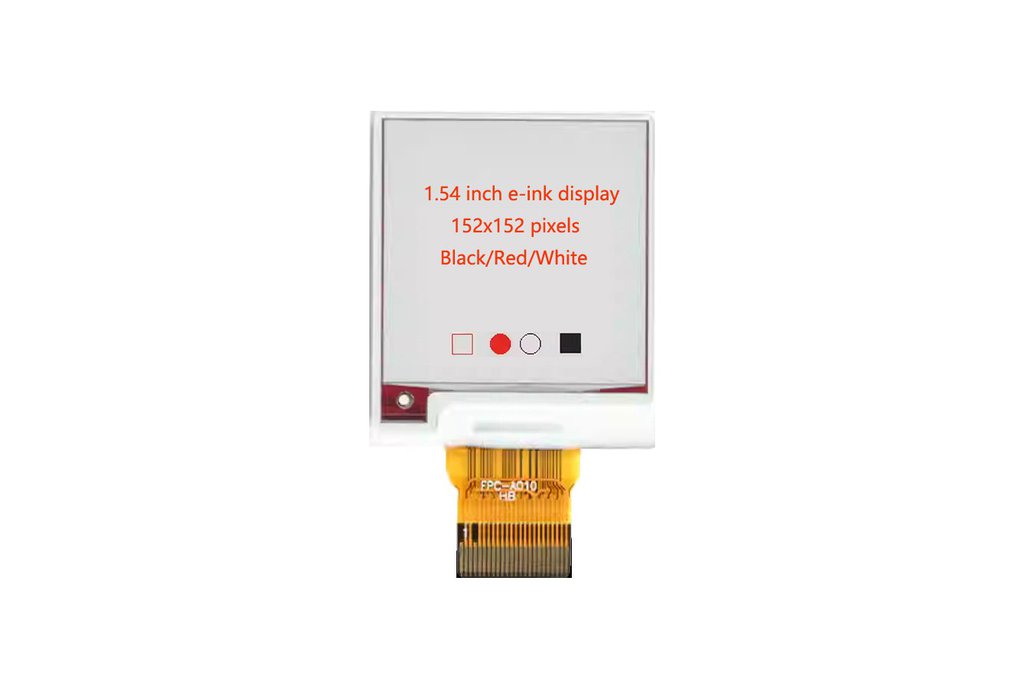

Preview of 1.54" eink display 152x152 epd screen module

this 1.54" E-ink display is an Active Matrix Electrophoretic Display (AM EPD), with interfaceand a reference system design. The display is capable to display images at 1-bit white, black and red full display capabilities. The 1.54 inch active area contains 152×152 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module canbe used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

One fantastic aspect of the ePaper display is the fact they don't need any power to keep the image on the screen. Just like a Kindle, you can read whatever is on your screen in daylight without any reflection. It comes with SSD1680 controller,compact size (COG package),high contrast, sun readable,FPC connection,optional FPC connector.It supports 3/4-wire serial interface.

Parameter of 1.54" eink display 152x152 epd screen module:

• Display Mode : Active Matrix Electroph oretic Display;EPD,B/W/R
• Display Color : (black/white/RED)
• Display Size:1.54 inch
• DriverlC:SSD1680
• Pin No:24P
• Display Resolution: 152(H)×152(V) Pixel
• Panel Size: 31.8(H)×37.32(V) ×1.0 (D) (mm)
• Active Area: 27.512×27.512 (mm)
• Pixel Pitch: 0.181×0.181 (mm)
• Pixel Configuration: Square
• Operating Voltage:3.0V
• Interface:SPI
• Operating Temperature:0~50 °C
• Storage Temperature：-25~70 °C
• Part No:ZOJK152152-0154GAB-R
• Weight:2.18±0.5

Features of 1.54" eink display 152x152 epd screen module:

• 152x152 pixels display
•  High contrast, High reflectance
•  Ultra wide viewing angle, Ultra low power consumption
•  Pure reflective mode
•  Bi-stable display
•  Commercial temperature range
•  Landscape, portrait modes
•  Hard-coat antiglare display surface
•  Ultra Low current deep sleep mode
•  On chip display RAM
•  Waveform stored in On-chip OTP or written by MCU
•  Serial peripheral interface available
•  On-chip oscillator
•  On-chip booster and regulator control for generating VCOM, Gate and source driving
• voltage .
• I2C signal master interface to read external temperature sensor
•  Built-in temperature sensor

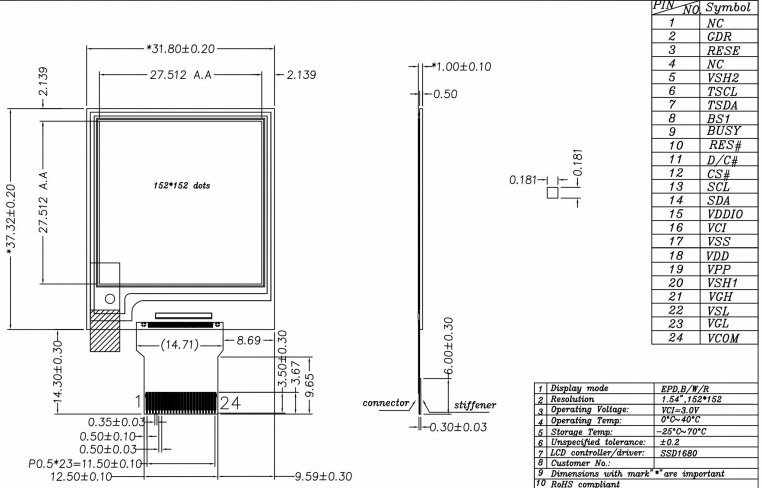

Mechanical Drawing

Application of 1.54" eink display 152x152 epd screen module:

• Electronic Shelf Label System
• Electronic price tags
• Electronic conference board

Packing Content:1x 1.54 inch 152x152 eink display in red/black/white
