2.13 inch E-Ink Display HAT V4 Version Compatible with Raspberry Pi Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, 250x122 Resolution SPI Interface Supports Partial Refresh

OVERVIEW OF 2.13 INCH EPD Display E-INK Screen panel

This is a 2.13-inch color electronic ink display with a resolution of 250×122 and an SPI interface that can display black,white and red images. Your images will be retained indefinitely in the event of a power loss – place the image, then turn off the power. Once these e-paper modules are updated, they don’t require any power and can actually be completely disconnected, with the content remaining on the display indefinitely, making them ideal for low-power devices powered by solar or batteries. It should be noted that every time the screen configures a new display interface, its position needs to be reset. The e-paper screen will flicker during the refreshing process, and it will display normally after refreshing.

Parameter of 2.13 INCH EPD Display E-INK Screen panel

• Display Mode : Active Matrix Electroph oretic Display;EPD,B/W/R
• Display Color : (black/white/red)
• Display Size:2.13 inch
• DriverlC:SSD1680Z
• Pin No:24P
• Display Resolution: 122(H)×250(V) Pixel
• Panel Size: 29.2(H)×59.2 (V) ×1.0(D) (mm)
• Active Area: 23.7046×48.55 (mm)
• Pixel Pitch: 0.1943×0.1942 (mm)
• Pixel Configuration: Square
• Operating voltage:3.0V
• Interface:SPI
• Operating Temperature:0~50 °C
• Storage Temperature：-25~70 °C
• Weight: 3.2±0.5

Features of 2.13 INCH EPD Display E-INK Screen panel:

• 250×122 pixels display
• High contrast High reflectance
• Ultra wide viewing angle Ultra low power consumption
• Pure reflective mode
• Bi-stable display
• Commercial temperature range
• Landscape portrait modes
• Hard-coat antiglare display surface
• Ultra Low current deep sleep mode
• On chip display RAM
• Waveform can stored in On-chip OTP or written by MCU
• Serial peripheral interface available
• On-chip oscillator
• On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
• I2C signal master interface to read external temperature sensor
• Built-in temperature sensor

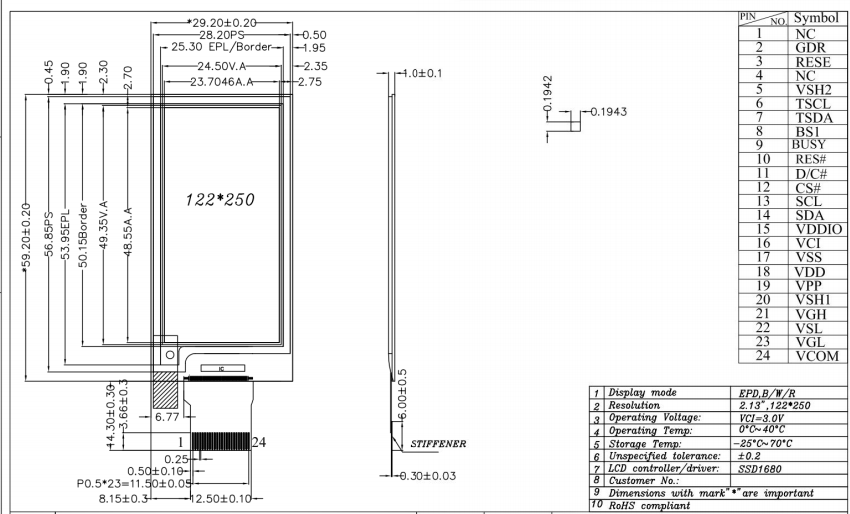

Mechanical Drawing

Application of 2.13 INCH EPD Display E-INK Screen panel:

• Electronic Shelf Label System
• Electronic price tags
• Electronic conference board

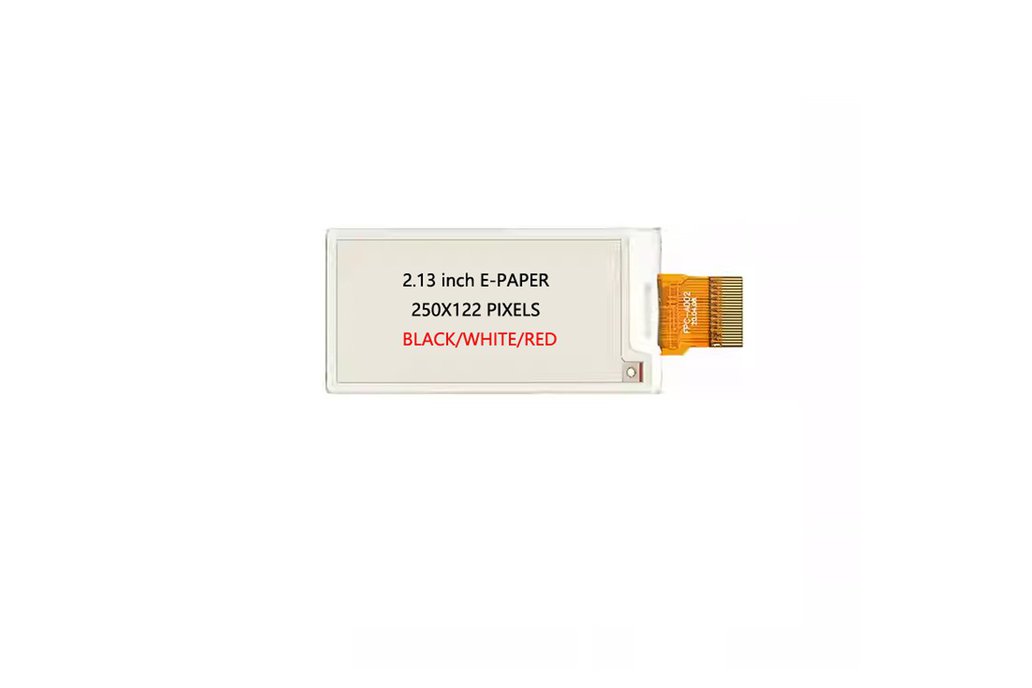

Packing including: 1 x 2.13 inch 122x250 eink display in black/white/Red
