What is night vision

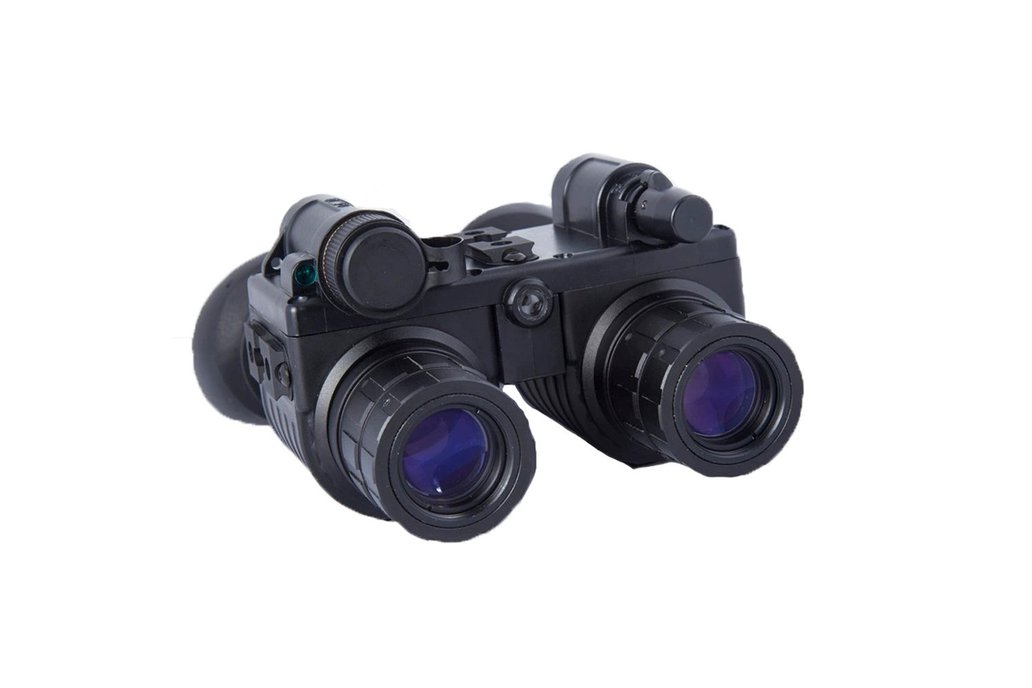

The ZOJKDB2021 is compact, lightweight and night vision binocular. They utilizetwo high performance image intensifier tubes to provide extremelyclear and crisp images under the darkest conditions. A built-in IRilluminator lets the users easily read a map and function in a totaldarkness environment. lt can be used handheld, head mounted orhelmet mounted for hands-free, or attached to a camera or camcordelfor nighttime photography and law enforcement to document. Thissystem enables walking, driving, short-range surveillance, map readingvehicle maintenance, and administering first aid in both moonlight andstarlight, With automatic protective system controls, the monocular willshut off automatically if the illumination level surpasses 40lux for thefollowing 10seconds. And automatic brightness adjustment systemalways keeps llT brightness level constant.They're easily replaced with3x,5x,óx lens for enhanced range performance.

Function Instruction:

• Automatic shut off when flipped up: The device will turn off automaticallywhen pushing a button on the side of mount and lifting the unit up untilreaches in the top position. Push the same button to lower monocular tothe viewing position, then the device will turn on for continuation ofoperation.

• Mil-spec multi-coated optic: Multi antireflection film can restrain thereflex of lens, which can reduce the loss of light so more light can gothough the lens to get a sharp image.

• Automatic brightness control: When the ambient light changes, thebrightness of the image detected will keep the same to insure a stableviewing effect and also to protect users' eyesight.

Product performance:

• This night vision device uses 2nd generation+(quasi 3rd generation and higher) level image intensifiers
• Situation sensing automatic switch
• Strong light power-off protection
• Automatic brightness adjustment
• Ultra wideband multilayer anti reflective film
• Embedded design of battery cover spring
• Can be connected to independent long-distance infrared lights
• Equipped with IP65 waterproof and dustproof rating

Product parameters：

• Appearance style:Binocular binocular
• Level of image intensifier tube:Gen2+
• Resolving power(lp/mm):60-64
• Quality Factor(FOM):1400-1800
• sensitivity(microampere/lumen, µ A/lm):700-1000
• Signal-to-noise ratio:23-28
• Brightness gain(cd/㎡/lx):8000-12000
• Type of Yin Pole Surface:S25
• Lens coating type:Ultra wideband multilayer anti reflective film
• Magnification rate:1x
• FOV:40°
• focal length(mm):25mm
• Visual adjustment range:+5/-5 °
• Objective adjustment range：0.25--∞
• volume (mm):128X110X55 mm
• weight:749g
• supply voltage:2.0-4.2V
• Battery type:1X CR123A
• Continuous working hours:100 (without infrared enabled) 40 (with infrared enabled)
• Anti strong light protection function:yes
• Direction sensing automatic switch function:yes
• Automatic brightness function:yes
• Embedded design of battery cover spring:yes
• Infrared auxiliary light:yes
• Built in infrared indicator light:yes
• LED wave length:850nm
• Installing remote independent infrared lights:support
• Working temperature range:-50/+60°C
• Storage temperature range：-50/+70°C
• relative humidity：5%-98%
• No fault duration：10000 hours
• Waterproof and dustproof level：IP65

Applications:

Packing List:

• Night Vision Goggle x1
• helmet bracket x1
• protective case (helmet not included) x1
• Instruction manual x1
• Lens cleaning cloth x1
