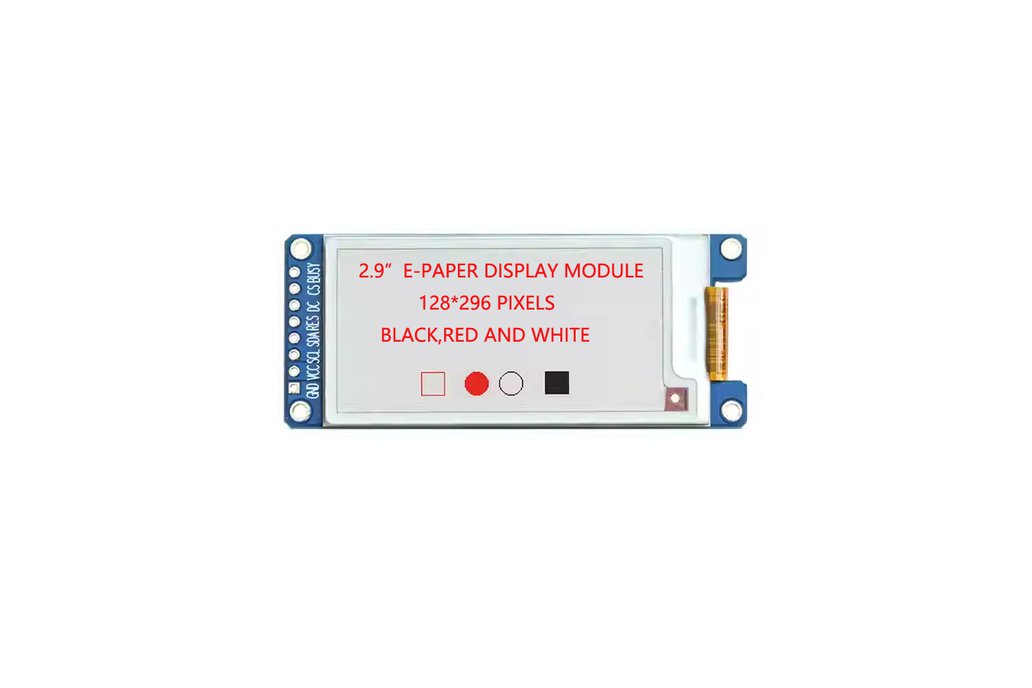

Overview of 2.9 inch epd epaper display module 296x128 this 2.9" E-ink display iss an s an Active Ma trix Electrophoretic Display (AM EPD), with interface and a reference system design. The 2.9inch active area contains 296×128 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

Parameter of 2.9 inch epd epaper display module 296x128:

• Display Mode : Active Matrix Electroph oretic Display;EPD,B/W/R
• Display Color : (black/white/RED)
• Display Size:2.9 inch
• DriverlC:SSD1680

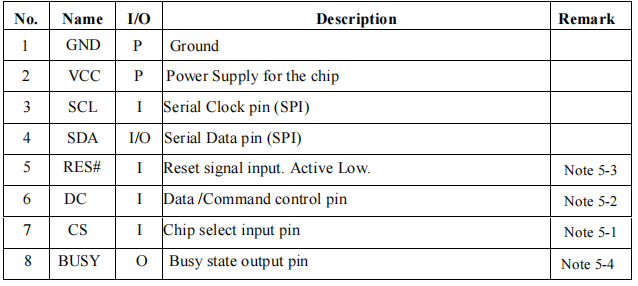

• Pin No:8P
• Display Resolution: 128 (H)×296(V) Pixel
• Panel Size: 37.0(H)×91.0(V) ×2.35(D) (mm)
• Active Area: 29.056(H)×66.896(V) (mm)
• Pixel Pitch: 0.227×0.226 (mm)
• Pixel Configuration: Rectangle
• Logic supply voltage:3.3V
• Interface:SPI
• Operating Temperature:0~50 °C
• Storage Temperature：-25~70 °C
• Part No:ZOJK128296-029EABMFGN-R
• Weight: 14g±0.5

Features of 2.9 inch epd epaper display module 296x128:

•  296×128 pixels display
•  High contrast High reflectance
•  Ultra wide viewing angle Ultra low power consumption
•  Pure reflective mode
•  Bi-stable display
•  Commercial temperature range
•  Landscape portrait modes
•  Hard-coat antiglare display surface
•  Ultra Low current deep sleep mode
•  On chip display RAM
•  Waveform can stored in On-chip OTP or written by MCU
•  Serial peripheral interface available
•  On-chip oscillator
•  On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
•  I2C signal master interface to read external temperature sensor
•  Built-in temperature sensor

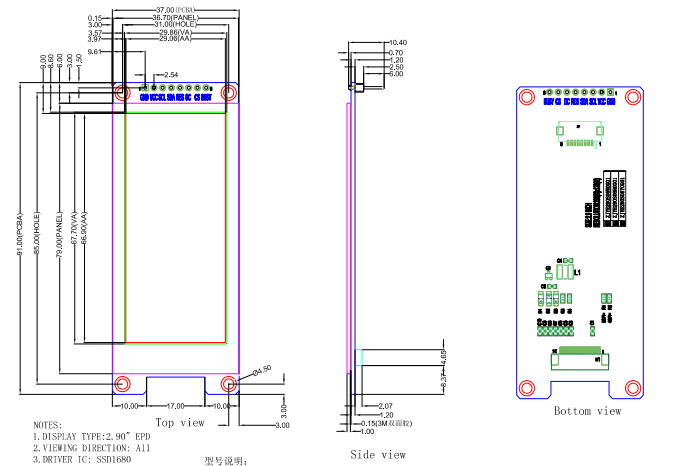

Mechanical Drawing

Application of 2.9 inch epd epaper display module 296x128:

• Electronic Shelf Label System
• Electronic price tags
• Electronic conference board

Packing Incouding:1x 2.9 inch 296×128 eink display Module in black/white/red
