2.13 inch e-Paper HAT display 122 X 250 E-PAPER Dispaly screen SPI Interface for Raspberry Pi Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH

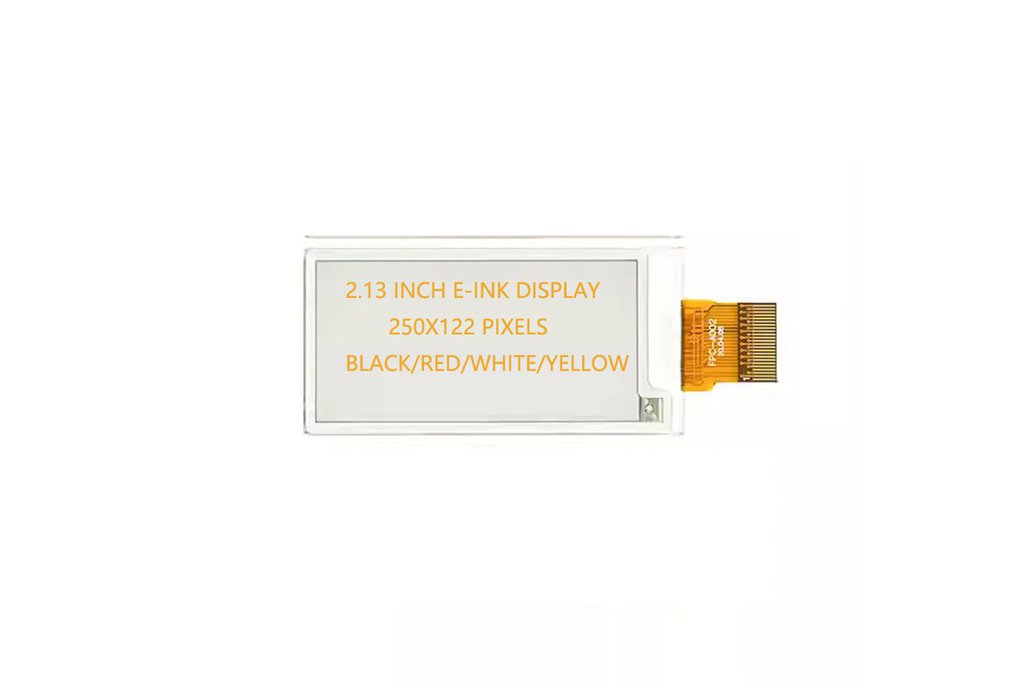

Overview of 2.13 inch e-paper eink display 122 X 250

this 2.13" E-ink display is a reflective electrophoretic technology display module onan active matrix TFT substrate. The panel is capable of displaying black, white, yellow and red images depending on the associated lookup table used. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, and memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM andBORDER settings.

Parameter of 2.13 inch e-paper eink display 122 X 250:

• Display Mode : Active Matrix Electroph oretic Display;EPD,B/W/R/Y
• Display Color : (black/white/red/yellow)
• Display Size:2.13 inch
• DriverlC:JD79661
• Pin No:24P
• Display Resolution: 122(H)×250(V) Pixel
• Panel Size: 29.2(H)×59.2 (V) ×1.0(D) (mm)
• Active Area: 23.7046×48.55 (mm)
• Pixel Pitch: 0.1943×0.1942 (mm)
• Pixel Configuration: Rectangle
• Logic supply voltage:3.0V
• Interface:SPI
• Operating Temperature:0~50 °C
• Storage Temperature：-25~70 °C
• Weight: 3.2±0.5

Features of 2.13 inch e-paper eink display 122 X 250:

•  Highlight Red and Yellow color
•  High contrast
•  High reflectance
•  Ultra wide viewing angle
•  Ultra low power consumption
•  Pure reflective mode
•  Bi-stable display
•  Antiglare hard-coated front-surface
•  Low current deep sleep mode
•  On chip display RAM
•  Waveform stored in On-chip OTP
•  Serial peripheral interface available
•  On-chip oscillator
•  On-chip booster and regulator control for generating VCOM, Gate and Source driving
• voltage
•  I2C signal master interface to read external temperature sensor
•  Available in COG package

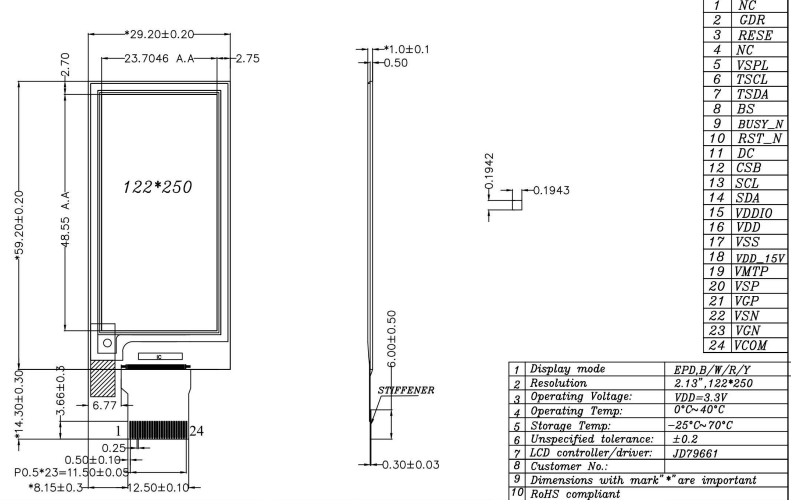

Mechanical Drawing

Application of 2.13 inch e-paper eink display 122 X 250:

• Electronic Shelf Label System
• Electronic price tags
• Electronic conference board

Packing details: 1 x 2.13 inch 122x250 eink display in black/white/RED/YELLOE
