Named after its insect counter part they share some similarities. They are both small but can lift multiple times their own body weight.

What is ANT2KmA?

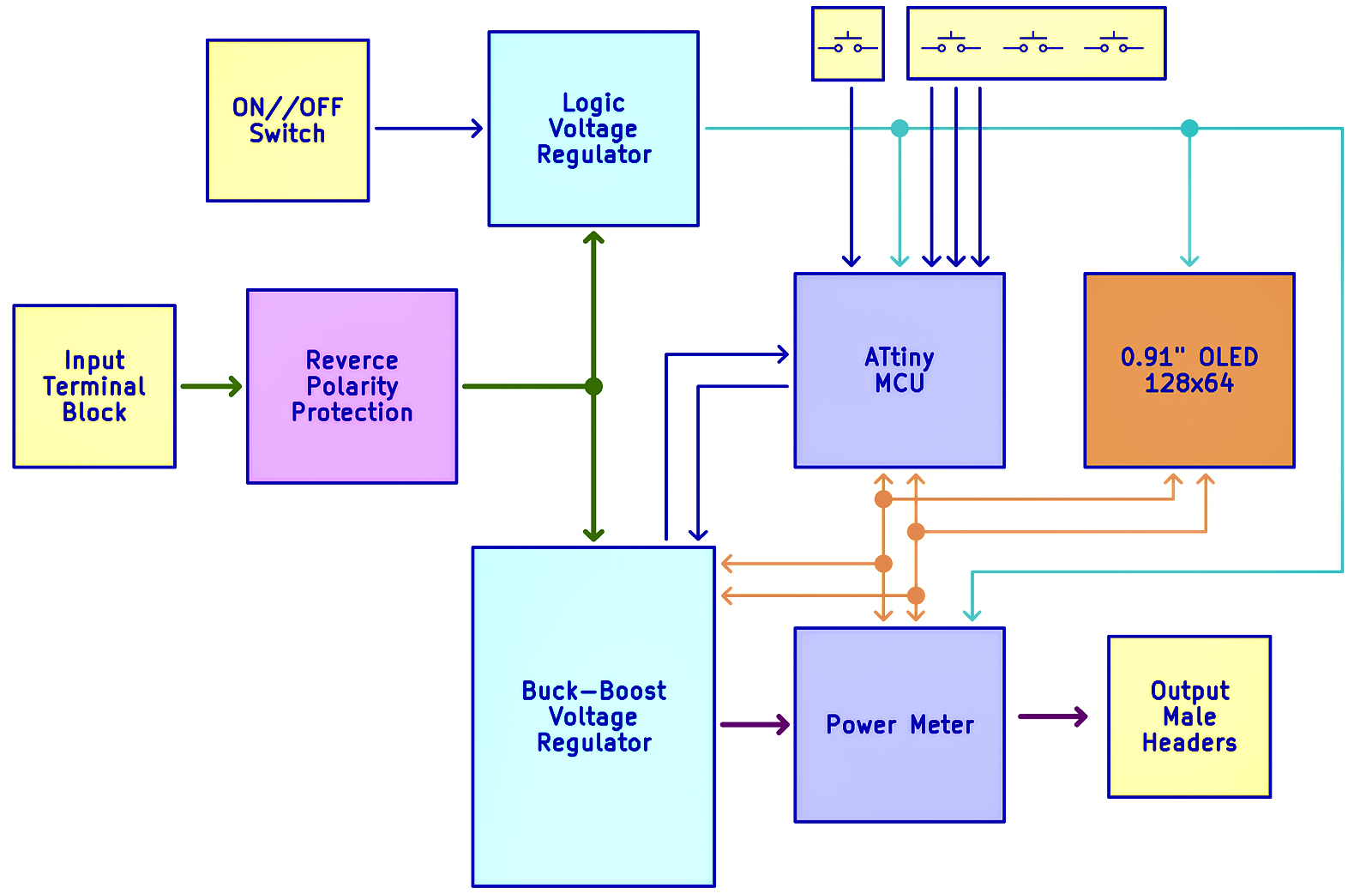

ANT2KmA is a single output, buck-boost breadboard DC-DC power supply. This means it can have a higher or lower output compared to the input.

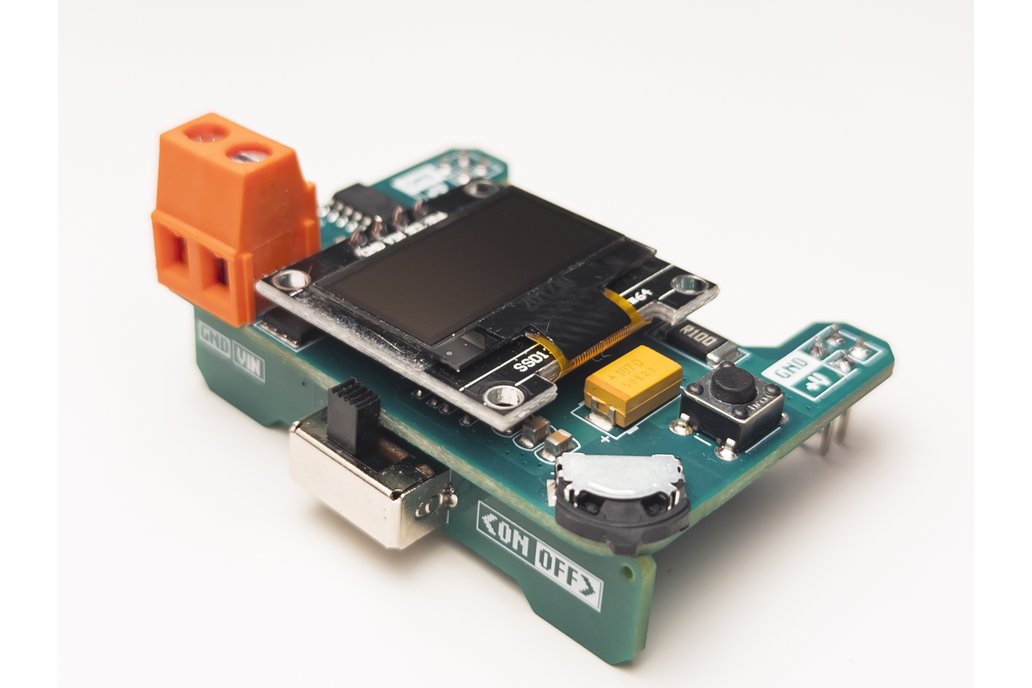

Combine with its unique shape and great features ANT2KmA is the most portable and versatile power supply for breadboards on Tindie! Or even the whole internet!

Why did you make it?

The versatility being able to power your breadboard project with almost any power source. ANT2KmA allows you to have 0 volt to 12 volts output from a 5V input.

- Key Features

• Wide Input/Output Range: Buck-Boost converter

• Real-Time Monitoring: The display shows real-time measurements of voltage, current and power

• High-Current Output: Deliver up to 2000mA of output current

• Plug-and-Play Design: Compatible with standard breadboards. Easy to use. Connects on the edge without obstructing any part of the breadboard

• Efficient: Up to 95% efficiency

• Open Source: Firmware made available. Improve, rewrite

• The input source is very important for higher power output. The output depend on the quality of the input.
• The Multi-Directional Switch (MDS) has 3 positions: Up, Down and OK buttons.

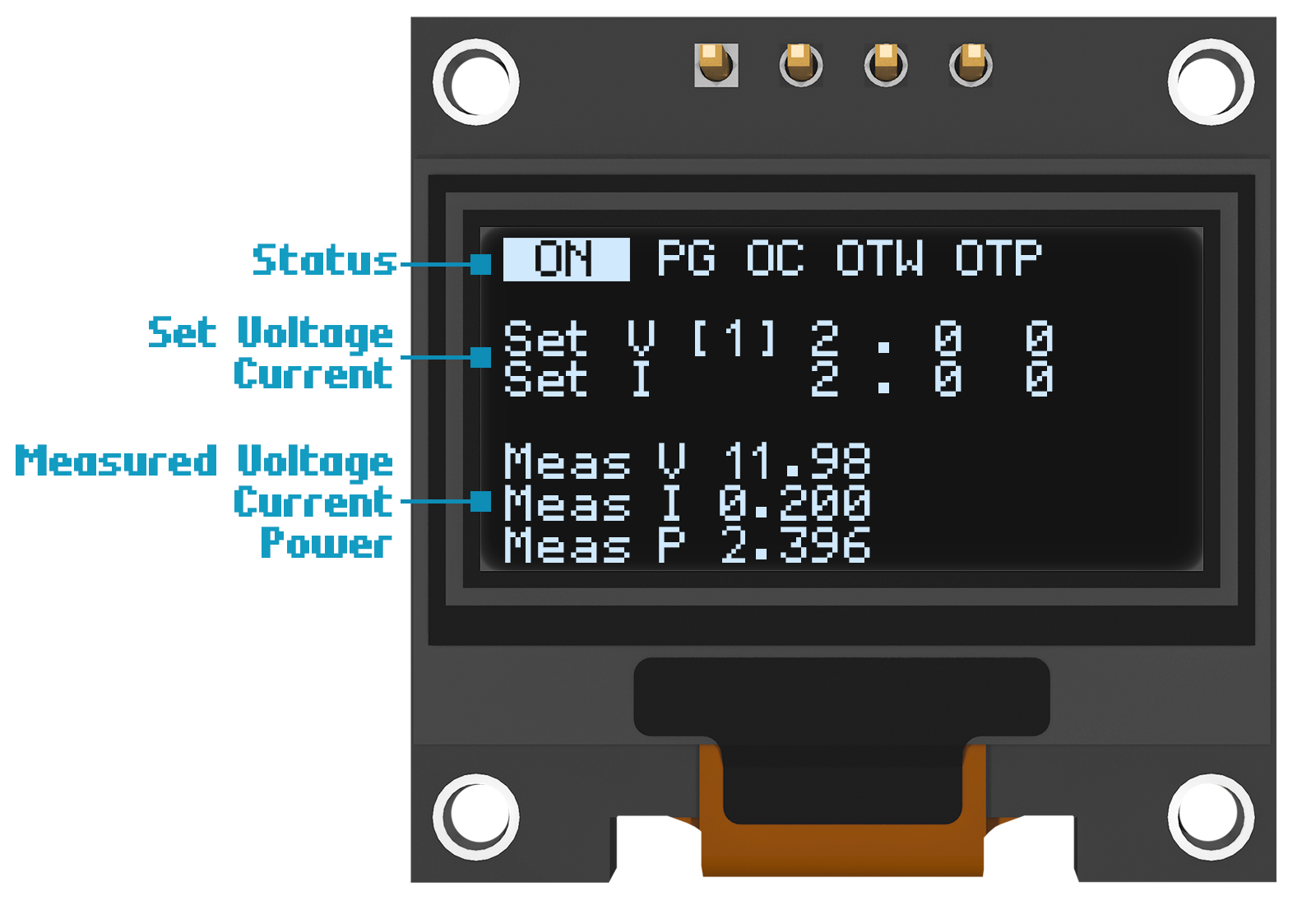

• The very top of the display is the status bar. It will display if:
  • ON-OFF - output status after pressing the Enable button
  • PG - power good - if within 97% of output
  • OC - over current - reached set current limit
  • OTW - over temperature warning - when its getting too hot
  • OTP - over temperature protection - will shut down the output to protect itself

- Set output voltage

• Slide the power switch to the ON position.
• The square bracket indicates the digit affected by the MDS up and down buttons.
• Use the MDS to change the set voltage.
• Press the OK button to move the square brackets over to the next right digit.
• The output voltage will update instantly. Every change will be saved and loaded on next power up.
• Press the Enable button to enable the output.
• The voltage (and current limit) can be updated when output is enabled or disenabled.
• PG will show up in the status line to indicate if the power is good.

- Set current limit

• Press and hold the OK button for 2 seconds and the square brackets will switch to Set I.

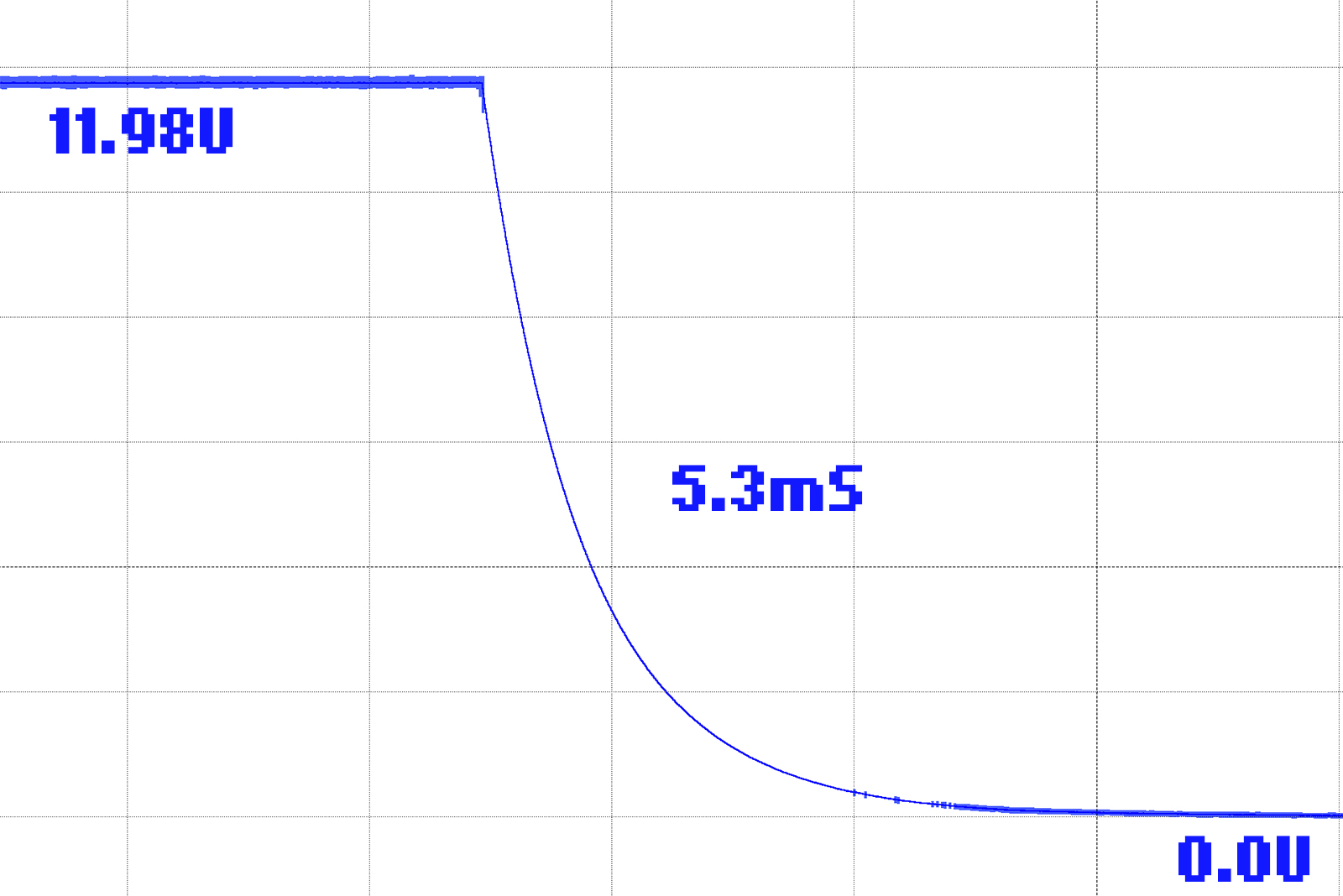

• The output will disenable once the Set I value is reached. OC is displaying in the status line.
• Change the current limit or check your circuit and press the Enable button to re-enable output
• Press and hold the OK button for 2 seconds to return up to Set V.

• 3.5VDC - 12VDC Input
• 0.0VDC - 12VDC Output @ 10mV increments
• 2000mA Output @ 10mA increments
• Power Good (PG) status
• Over Temperature status
• Over Current status
• 0.91 Inch OLED
• Soft start
• Saved last values
• Reverse input protection
• Designed for M102 breadboards

Even with my best efforts this may not function as described. Majority of the code was written by ChatGPT. May not fit on all breadboards. Use at your own discretion.
