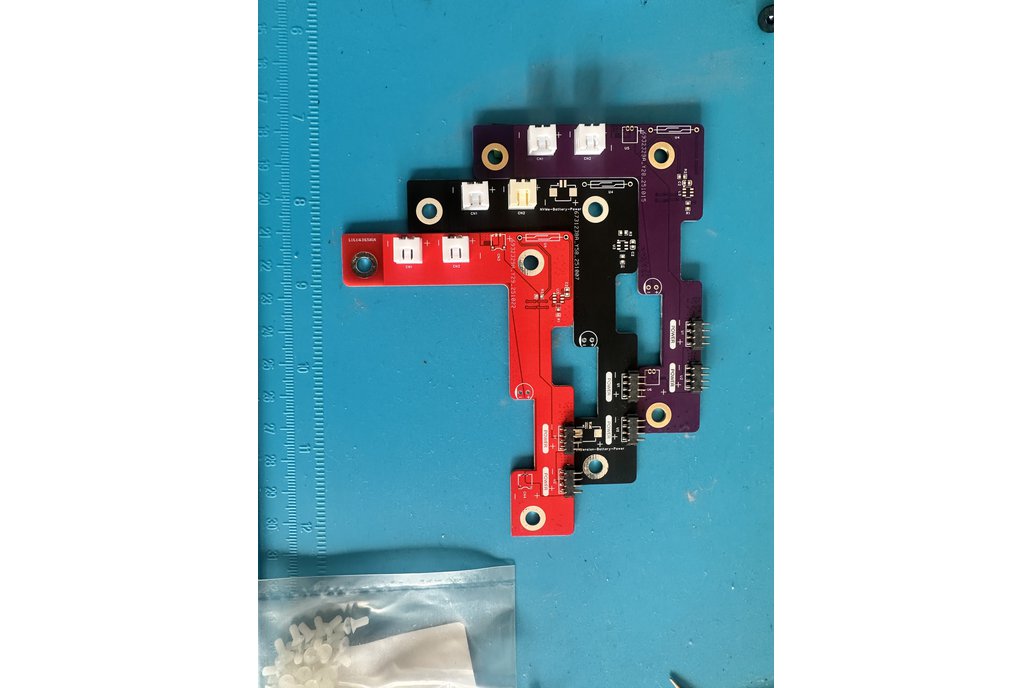

uConsole new battery board

Name: uConsole new battery board
SKU: 39895
Price: 9.90 USD
Availability: InStock

You can choose the Li-battery shape you want to change!

Designed by uConsole DIY board！ in China

This seller is taking a break. Sign up below to get an email when they're back!









$9.90

On A Break

You can choose the Li-battery shape you want to change!

-------------just have normal (CM4+TF) and plus(CM5+NVME)--pro still in design---------------------- What is it? uConsole battery board!!! NORMAL battery board just for SD+CM5/CM4 PlUS/PRO battery bo…

What is it?

uConsole battery board!!!

NORMAL battery board just for SD+CM5/CM4

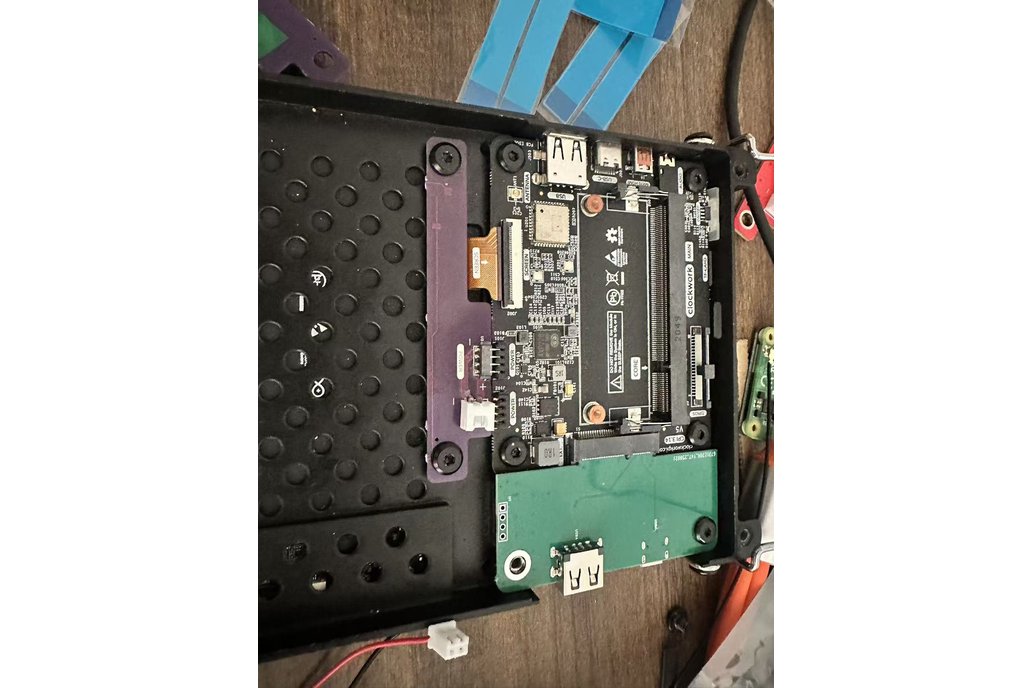

PlUS/PRO battery board work for NVMe+CM5 on uConsole have no problem

PlUS just work like NORMAL,PRO have new fuction: Use magnet to cut down battery power

Why did you make it?

I wanna change the uconsole inner Structure or l have other shape battery to change!!

What makes it special?

PRO module is using two PMOS+Transistor+Reed switch to control the battery on/off. Circuit is often use in lattop many years,Mature and stable！！！ Coution: 1. battery model NO. is 9858102X2. 2. the connect is XH2.54 (normal turn,positive on right!) 3.the cable is as long as 10cm 3.your battery protect board working current need above 5A!!!!(4.2V is best ,4.35V you need keep it working/charging voltage below 4.2V--just for uConsole is OK) About PRO： We sugest who have the basic Electrical knowledge/Electrical fix Experience person to buy,we will sent another Reed switch for you to Spare

More interesting things: https://discord.gg/RcaH6v6D
