The package includes:

OneChipBook-12-A main unit × 1,USB Type-C cable × 1

Overview

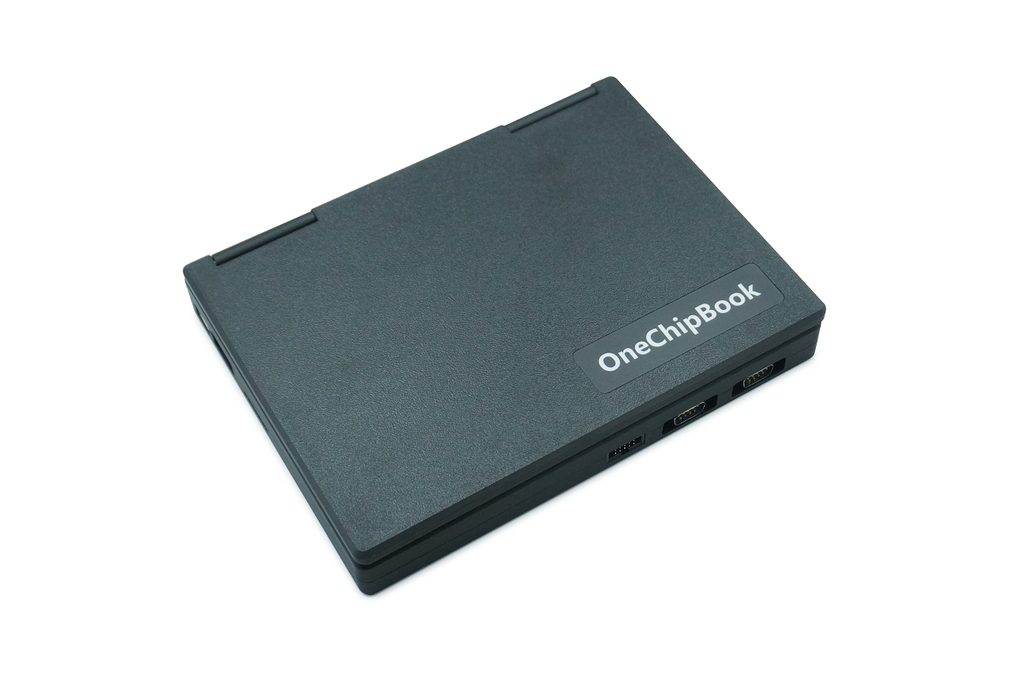

The OneChipBook-12 is an FPGA development platform centered around the Cyclone EP1C12Q core. It integrates a VGA monitor(LCD form iPAD2), PS/2 mechanical keyboard, battery, and I/O ports. All peripheral devices are connected to the FPGA's general-purpose I/O pins, allowing users to control the entire system by developing for a single chip without complex interface design. OneChipBook-12 has two order numbers. They share identical keyboard scan codes, with the only difference being the keyboard silkscreen markings.

OneChipBook -12 (12k Les) - A (Keyboard layout A)

OneChipBook -12 (12k Les) - B (Keyboard layout B)

Features

• FPGA: Cyclone EP1C12Q240
• 12,060 Les
• 239,616 bits RAM
• 32MB SDRAM
• 1024x768 VGA monitor
• VGA/S-Video/CVBS Output interface
• Mechanical keyboard (PS/2)/ Backlight
• Stereo speakers
• Type-C charging port
• Lithium battery
• Expansion Bus Support
