This device will come packaged with instructions, read them completely before using the device.

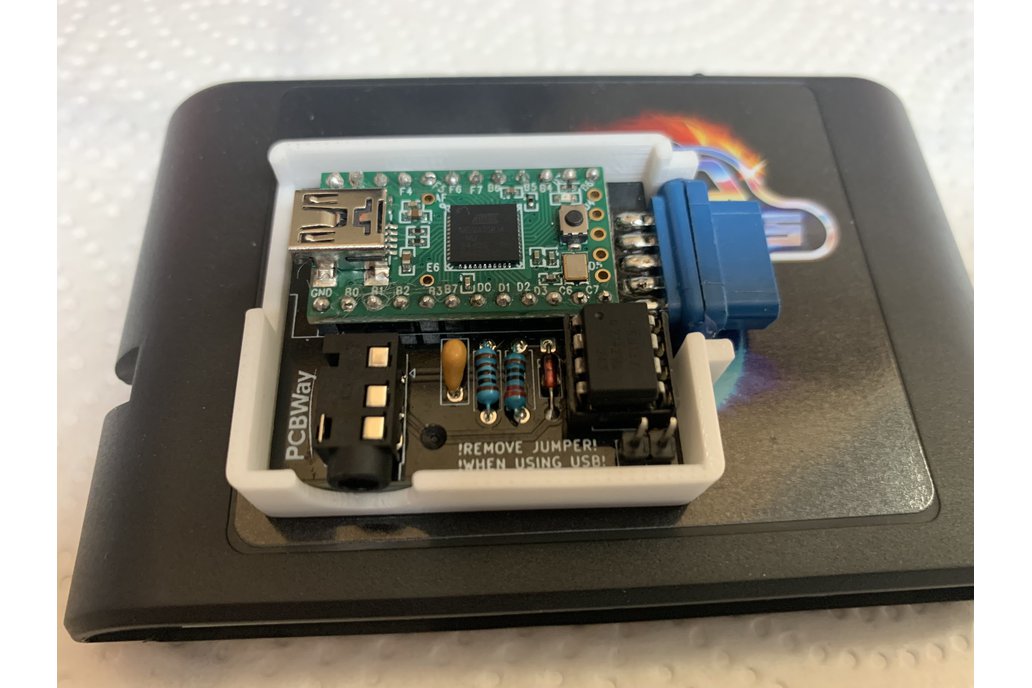

GenMDM is basically the ultimate bridge between your MIDI gear and a real Sega Genesis. If you’ve ever loved the sound of the YM2612 and PSG chips from the Genesis days, GenMDM lets you play them like an instrument. You plug it into your Genesis, hook up a MIDI cable, and your synth, keyboard, or DAW is controlling the hardware sound in real time. This is a clone of the little-scale GenMDM running little-scale firmware code.

TRS-A and USB MIDI

Channels 1–6: Each one controls one of the six FM voices on the YM2612. Channel 7: Controls the Genesis PSG’s square wave channel A Channel 8: Controls PSG square wave channel B Channel 9: Controls PSG noise channel Channel 10: General MIDI drum channel, mapped to various noise and PSG tones for percussion.

Configure instruments and parameters using MIDI CC

Will require a Cartridge running the GenMDM ROM.

Device can be powered by the Sega controller port alone.

Remove the jumper before powering the device through USB when the device is plugged into the Sega or you may brick your Sega and / or your GenMDM
