What is it?

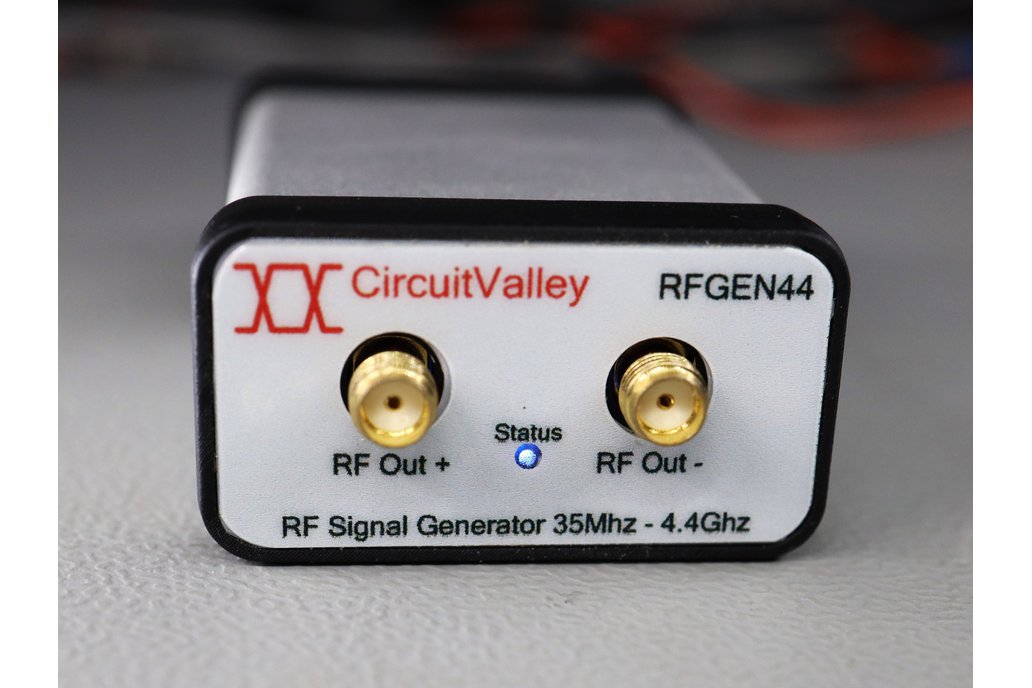

RFGEN44 Programmable USB RF Signal Generator , enables you generate programmable RF frequency with minimum resources.

Why did you make it?

RF signal generators are very hard to reach for price sensitive applications this allows user to get hands on a Fully programmable USB RF signal generator.

What makes it special?

Device Specifications Analog Device ADF4351 Wideband Synthesizer with Integrated VCO Microchip PIC16 MCU with USB and High endurance flash Output Frequency range 35Mhz to 4.4Ghz with 10khz Step Adjustable Output Amplitude, in 4 Steps Max Amplitude 35Mhz to 1Ghz -1 dBm 1Ghz to 2Ghz 0.0dBm 2Ghz to 4.4Ghz -4.0dBm External or Internal Clock Refernce Aux Port Support External Refernce Input Sync Multiple device Standalone Operation Automatic Configuration Load from High endurance flash Features Automatic frequency sweep and Hop, with software or standalone Aux Port Swep Control and Sync with External Device Such as specturm analyzer for Tracking Source Support Multiple Device on same PC, Fetures Identification LED Notifcation Driver Free operation over USB HID, No driver or no special permissions needed on any Generic OS Fully Programmable with Cross Platform (Win/Linux/MacOS) GUI or Python Provided QT Cross platform application source and Python Script Source along with binray
