KLIP30 Programmable 30ps Fast Pulse Generator

Name: KLIP30 Programmable 30ps Fast Pulse Generator
SKU: 39691
Price: 229.00 USD
Availability: InStock

KLIP30 USB Programmable 30ps Fast Pulse Generator

Designed by circuitvalley in Germany

KLIP30 Programmable 30ps Fast Pulse Generator 1

KLIP30 Programmable 30ps Fast Pulse Generator 2

KLIP30 Programmable 30ps Fast Pulse Generator 3

KLIP30 Programmable 30ps Fast Pulse Generator 4

KLIP30 Programmable 30ps Fast Pulse Generator 5

KLIP30 Programmable 30ps Fast Pulse Generator 6

KLIP30 Programmable 30ps Fast Pulse Generator 7

2025-08-12T15:58:18.405Z-fast_pulse_generator_30ps_rise_circuitvalley (4).JPG

2025-08-12T15:58:18.405Z-fast_pulse_generator_30ps_rise_circuitvalley (3).JPG

2025-08-12T15:58:18.405Z-fast_pulse_generator_30ps_rise_circuitvalley (2).JPG



2025-08-14T21:22:13.191Z-KLIP30_fast_pulse_generator_30ps_rise_circuitvalley (3).JPG

2025-08-14T21:22:13.191Z-KLIP30_fast_pulse_generator_30ps_rise_circuitvalley (14).JPG

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

KLIP30 USB Programmable 30ps Fast Pulse Generator

What is it? KLIP30 USB Programmable 30ps Fast Pulse Generator Why did you make it? What makes it special? Programmable DC Coupled Output with 50mV to 1300mV Signal Amplitude with 50Ω Output Very Fas…

What is it?

KLIP30 USB Programmable 30ps Fast Pulse Generator

Why did you make it?

What makes it special?

Programmable DC Coupled Output with 50mV to 1300mV Signal Amplitude with 50Ω Output
Very Fast ~20ps Falling Time and 30ps Rise time with Uncertainties + 1.6ps to – 1.8ps
Programmable output frequency PLL Supports 30Khz to 300Mhz

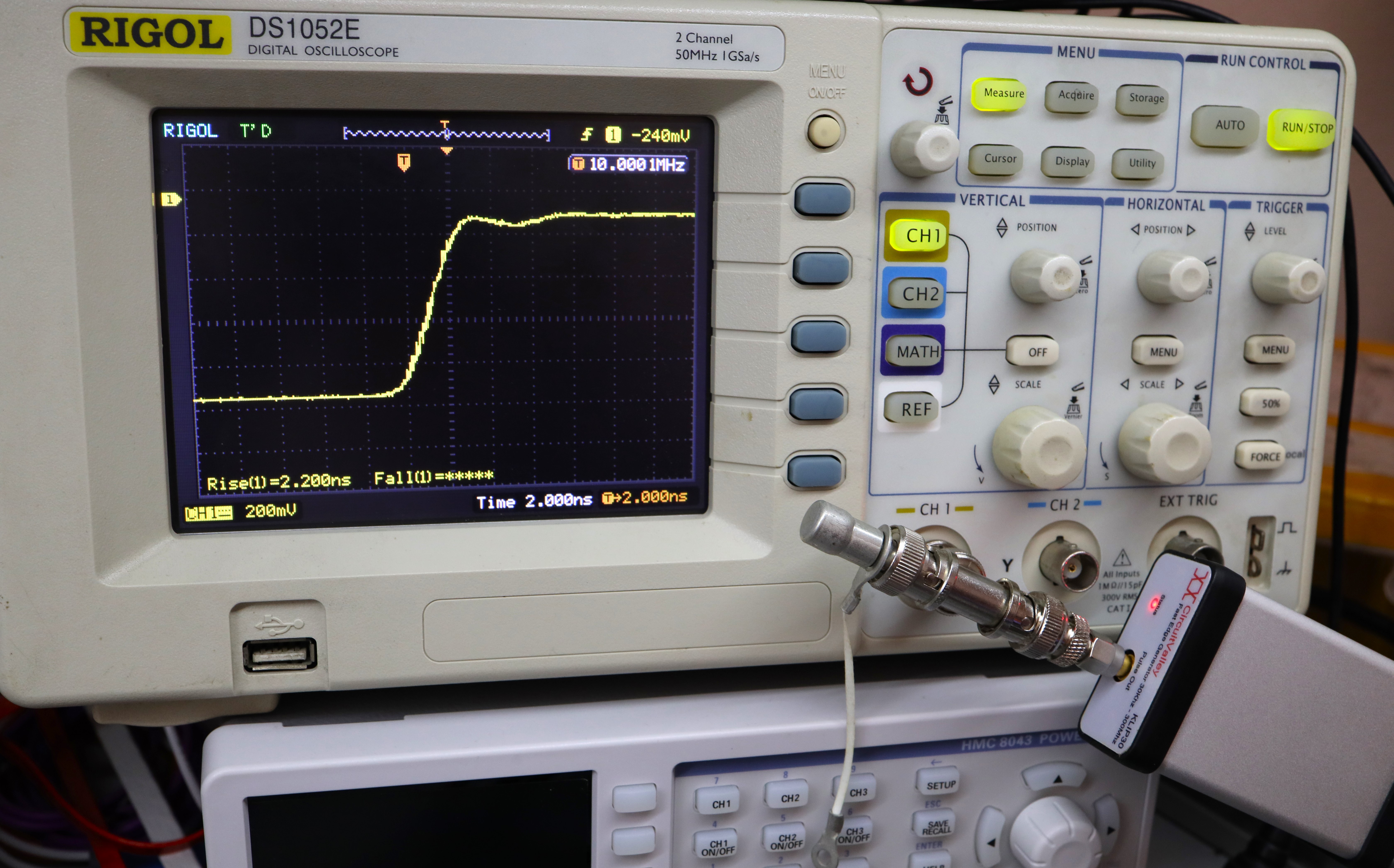

Ships default with 10Mhz 800mVpp output and Trigger output enabled
USB Programmable Stores configuration in High endurance flash.
Top Quality 27Ghz SMA Output Connector
Aux In/Out Supports output AC Coupled 1.8Vpp output and input
Support External Reference Input and Output For trigger and Sync between Multiple devices/ GPSDO
Internal Oscillator 25ppm Initial accuracy and 2.5ppm/year ageing Stability, External Reference Input Supported 10Mhz to 25Mhz.
USB C Power/ Configuration Communication , consumes ~250mA on 5V USB
Extruded Aluminium Enclosure. Device fully user serviceable with support.
Crossplatform Configuration GUI Application , Supports Windows, Linux, MacOS
Deliverables, Pulse Generator Device, SMA Male to SMA Male Adapter, SMA Male to BNC Male Adapter, Individually measurement report
