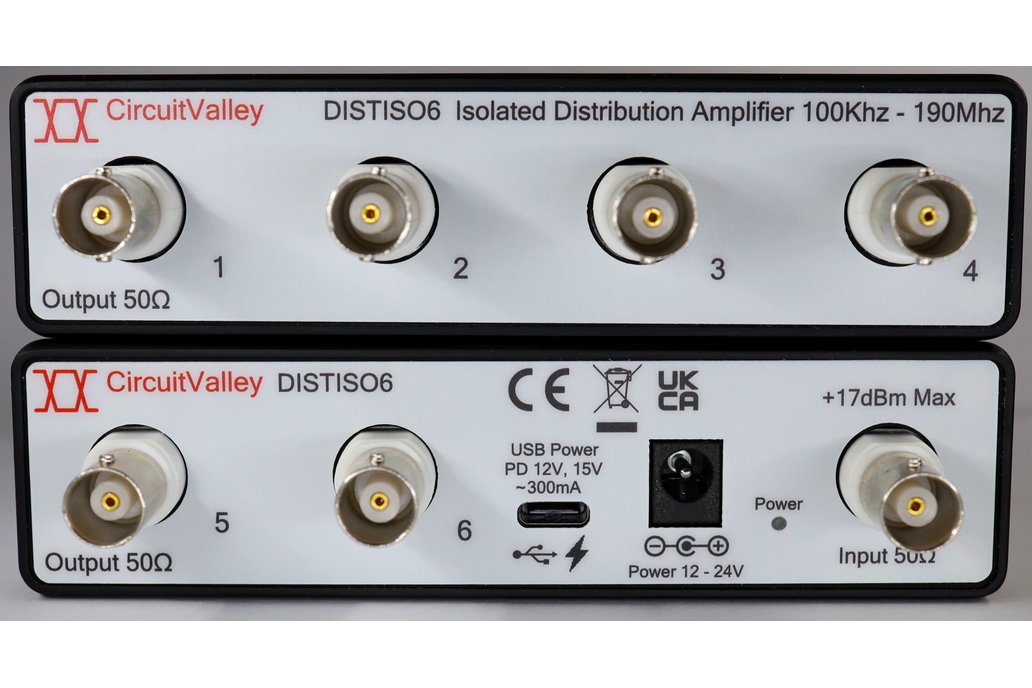

Isolated Distribution Amplifier 6 Output

Distribution Amplifier with 6 Galvanically Isolated outputs 100Khz to 190Mhz

Designed by circuitvalley in Germany

Isolated Distribution Amplifier 6 Output 1

Isolated Distribution Amplifier 6 Output 2

Isolated Distribution Amplifier 6 Output 3

Isolated Distribution Amplifier 6 Output 4

Isolated Distribution Amplifier 6 Output 5

Isolated Distribution Amplifier 6 Output 6

Isolated Distribution Amplifier 6 Output 7

Isolated Distribution Amplifier 6 Output 8

Isolated Distribution Amplifier 6 Output 9

Isolated Distribution Amplifier 6 Output 10

2025-09-09T13:16:13.576Z-isolated_distribution_amplifier_analog_reference_gpsdo_1.JPG

2025-09-09T13:16:13.576Z-isolated_distribution_amplifier_analog_reference_gpsdo_4.JPG

2025-09-09T13:16:13.576Z-isolated_distribution_amplifier_analog_reference_gpsdo_6.jpg

2025-09-09T13:16:13.576Z-isolated_distribution_amplifier_analog_reference_gpsdo_2.JPG

2025-09-09T13:16:13.576Z-isolated_distribution_amplifier_analog_reference_gpsdo_3.JPG

2025-09-09T13:16:13.576Z-isolated_distribution_amplifier_analog_reference_gpsdo_7.JPG

2025-09-09T13:16:13.576Z-isolated_distribution_amplifier_analog_reference_gpsdo_8.JPG

2025-09-09T13:16:13.576Z-isolated_distribution_amplifier_analog_reference_gpsdo_10.JPG

2025-09-09T13:16:13.576Z-isolated_distribution_amplifier_analog_reference_gpsdo_9.JPG

2025-09-09T13:16:13.576Z-isolated_distribution_amplifier_analog_reference_gpsdo_11.JPG

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Distribution Amplifier with 6 Galvanically Isolated outputs 100Khz to 190Mhz

What is it? Signal Distribution Amplifier, For Clock and Signal Distribution, With Bandwidth 100Khz to 190Mhz with Gain of +4dBm Why did you make it? There is always a need to have a Reference Clock…

Read More…

What is it?

Signal Distribution Amplifier, For Clock and Signal Distribution, With Bandwidth 100Khz to 190Mhz with Gain of +4dBm

Why did you make it?

There is always a need to have a Reference Clock from GPSDO or any other source to be distributed between Instruments. Having Isolated output gives very nice feature to not share ground between different instruments.

What makes it special?

Input

50 Ohm Input impedance ,

AC coupled to Primary Stage, Max 2V DC Offset

Max +10dBm for 100Khz to 100Mhz, 2Vpp + 2V DC Offset

Max +17 dBm Max 101 to 190Mhz

A standard 3.3 CMOS or TTL when driving into 50R will fall into compatible range.

If you have requirement of even Higher input voltage then external BNC attenuator can be used

Output

50 Ohm Galvanically Isolated

50 Ohm Galvanically Isolated

+13dBm 100Khz to 50Mhz into 50Ohm , ~6Vpp into 1Mohm

+12 dBm 50 to 100 Mhz into 50Ohm

+7 dBm 101 to 190Mhz into 50Ohm

Frequency Deviation between Channels

Base line Measured Ratio difference on same Channel max 7.956p

Channels Between same driver (e.g CH1 vs CH2) max Ratio difference of around 8.16p

Channels Between different driver (e.g CH1 vs CH3) max Ratio difference of around 10.2p , Max ~ 10 PPT

Phase Deviation between Channels

TDS8000 70Ghz Bandwidth scope Was used with 50Ghz and 20Ghz sampling head, even on 1fs resolution no measurable phase difference

Power Dual Power input

USB C PD 15 V or 12V

DC Banana Jack 6.5mm 2mm Pin Center Positive
