FPGA FMC MIPI Camera x4 Breakout Board FMC LPC

Name: FPGA FMC MIPI Camera x4 Breakout Board FMC LPC
SKU: 40986
Price: 149.00 USD
Availability: InStock

4x MIPI Camera Adapter for High End FPGA Board Prototyping With FMC Connector

Designed by circuitvalley in Germany

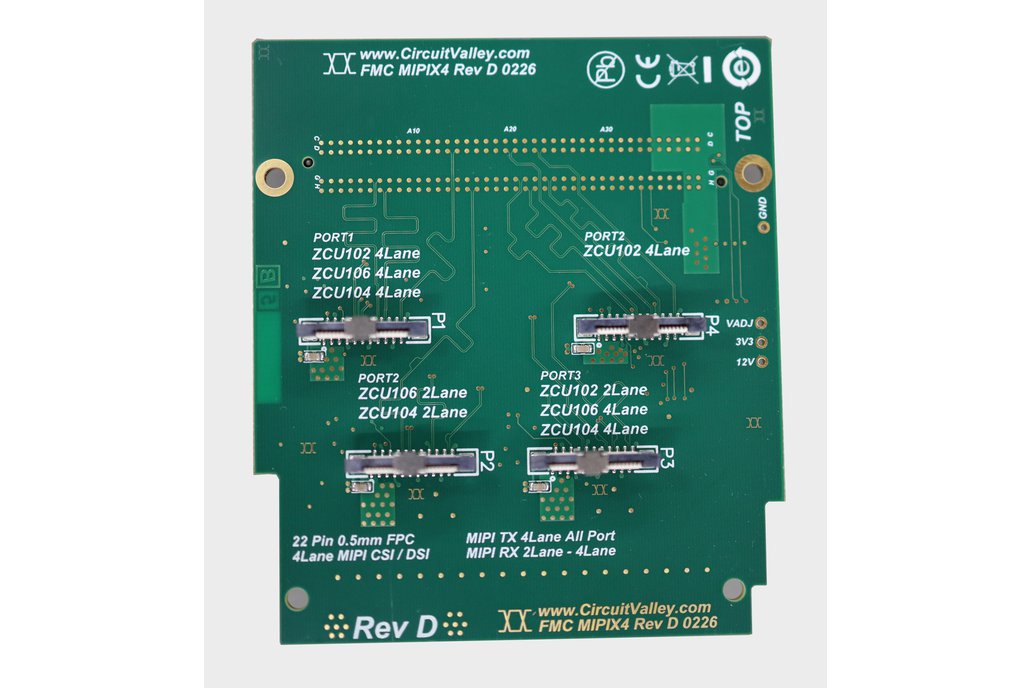

FPGA FMC MIPI Camera x4 Breakout Board FMC LPC 1

FPGA FMC MIPI Camera x4 Breakout Board FMC LPC 2

FPGA FMC MIPI Camera x4 Breakout Board FMC LPC 3

FPGA FMC MIPI Camera x4 Breakout Board FMC LPC 4

FPGA FMC MIPI Camera x4 Breakout Board FMC LPC 5

FPGA FMC MIPI Camera x4 Breakout Board FMC LPC 6

2026-02-13T01:38:24.458Z-fpga_mipi_fmc_fmcplus_camera_display_DSI_CSI_xilinx (3).JPG






Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

4x MIPI Camera Adapter for High End FPGA Board Prototyping With FMC Connector

What is it? Breakout board PCB for FMC Connector which are widely used on High End FPGA boards. This breakout Give you 4x MIPI Camera Connections using just LPC Low pinout connections do not need any…

What is it?

Breakout board PCB for FMC Connector which are widely used on High End FPGA boards. This breakout Give you 4x MIPI Camera Connections using just LPC Low pinout connections do not need any GTY or GTH or GTX or MGT connections and FMC LPC ANSI/VITA 57.1 compliant.

This Board Has 4x 22Pin 0.5mm Pitch 4Lane MIPI Camera Connector, Same As Raspberry Pi 5 onwards,

Compatible to all Raspberry Style Cameras, 2 Lane and 4Lane cameras both

Compatible Standard 2Lane Rapsberry Pi 15Pins 1mm Pitch Cameras using RPI to Mini FPC Cable

Compatible to Digilent PCam cameras

Example Video ISP pipeline working under Linux as V4L2 medica driver on ZCU102 Provided as Reference example.

Normal FPGA FMC Board comes from big manufacturer, Availability of such board is very very rare.

Board is VITA57.1 Compliant Has EEPROM to Configure voltages

This is Rev D of Board, Works with ZCU106 and ZCU104, ZCU102

Both ZCU106 and ZCU104 are supported by Free Xilinx Vivado
