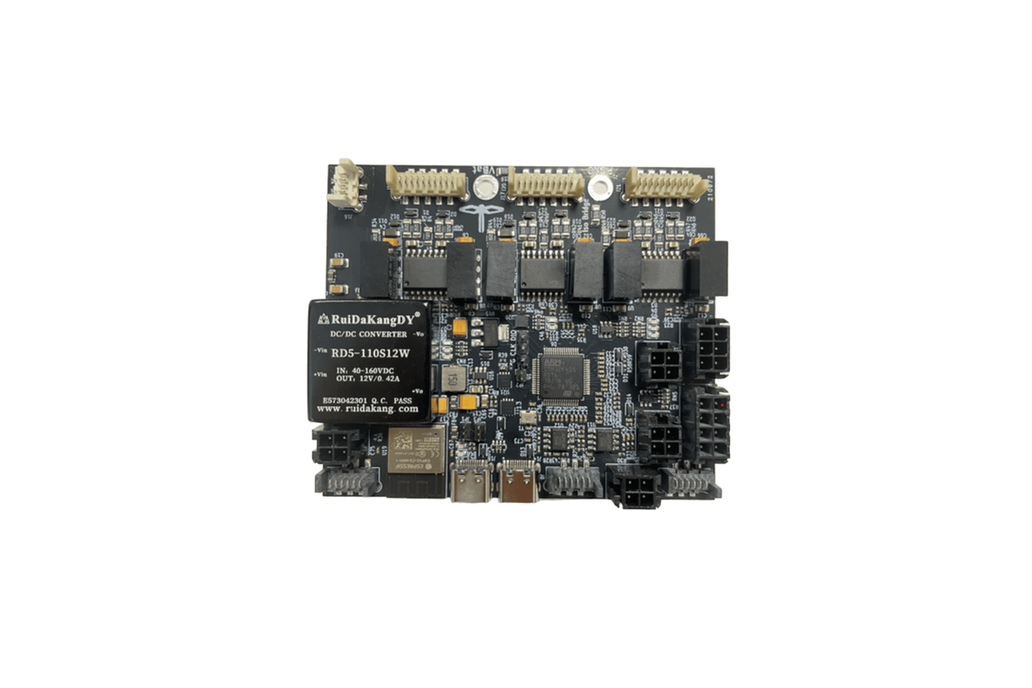

TRONIC X54 VESC Motor Controller

Name: TRONIC X54 VESC Motor Controller
SKU: 39371
Price: 1100.00 USD
Availability: InStock

The TRONIC X54 Motor Controller sets a new standard for ultra-high voltage applications with its 32S (160V) capability and extreme power han

Designed by ChatRobotic FPV Drones in China

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

https://www.chatrobotic.com

The TRONIC X54 Motor Controller sets a new standard for ultra-high voltage applications with its 32S (160V) capability and extreme power han

TRONIC X54 Motor Controller | Ultra-High Voltage Power System Specifications Description The TRONIC X54 Motor Controller sets a new standard for ultra-high voltage applications with its 32S (160V) ca…

TRONIC X54 Motor Controller | Ultra-High Voltage Power System Specifications

Description

The TRONIC X54 Motor Controller sets a new standard for ultra-high voltage applications with its 32S (160V) capability and extreme power handling. Engineered with military-grade components and liquid cooling support, it delivers unprecedented 350A continuous current with 1000A absolute maximum capability. Featuring 30 Infineon TOLT MOSFETs and advanced thermal rollback protection, this controller is designed for the most demanding industrial, energy, and transportation applications requiring uncompromising power delivery and reliability.

1. Main Specifications

Parameter	Specification
Voltage Range	40-160V DC (32S Li-ion)
Continuous Current	350A (with liquid cooling)
Burst Current (10s)	750A
Max Set Point	800A
Absolute Max Current	1000A
Current Measurement	1850A capability
Overcurrent Detection	2200A hardware protection
Max ERPM	150,000 (firmware limited)
ADC Input	0-3.3V (5V tolerant)
MOSFET Configuration	30× Infineon TOLT

2. Key Features

Ultra-High Voltage: 32S (160V) capability for industrial power systems
Military-Grade MOSFETs: 30× Infineon TOLT transistors with voltage-dependent ratings
Precision Current Sensing: 1850A measurement range for extreme applications
Advanced Thermal Management:
Thermal rollback protection (75-95°C range)
Liquid cooling optimization
Robust Safety Systems:
2200A hardware overcurrent detection
Multi-stage current limiting
Voltage spike suppression
High-Speed Control: 150,000 ERPM capability
Universal ADC Input: 0-3.3V sensing with 5V tolerance

3. Performance Data

Parameter	Continuous	10s Burst	Absolute Max
Current Capacity	350A	750A	1000A
Power Output @ 160V	56kW	120kW	160kW
MOSFET Performance	190A @160V	331A @120V	350A @100V

4. Recommended Applications

⚡ Grid-Scale Energy Systems

Utility-scale battery storage control
Solar farm power conversion systems
Wind turbine generator control

🚂 Heavy Rail & Transportation

Electric locomotive traction control
Metro train propulsion systems
High-speed rail power management

🏭 Industrial Power Conversion

Steel mill rolling motor drives
Mining conveyor power systems
Industrial smelting equipment

⚙️ High-Voltage Robotics

Foundry automation robots
Heavy payload robotic arms (500kg+)
Underwater industrial ROVs

🌊 Marine Propulsion

Electric ferry main drives
Container ship thrusters
Offshore drilling equipment

5. Operational & Safety Characteristics

Voltage Range: 40-160V DC (32S Li-ion)
Thermal Protection:
Gradual rollback starting at 75°C
Critical shutdown at 95°C
Cooling Requirements: Liquid cooling mandatory for continuous operation
Current Protection:
Hardware overcurrent detection @ 2200A
Multi-stage firmware limiting
Environmental Rating: IP68 (submersible to 3m)
Communication Protocols: CAN Bus 2.0, Ethernet, RS-485
Storage Conditions: -40°C to 100°C in nitrogen-purged enclosure
Certifications: UL 1741 SA, IEC 61800-5-1
