Standard Stack: H743 FC + 85A ESC 4 in 1

Name: Standard Stack: H743 FC + 85A ESC 4 in 1
SKU: 39279
Price: 87.90 USD
Availability: InStock

High-endurance flight control and power system for professional 7-9" long-range FPV drones

Designed by ChatRobotic FPV Drones in China

Standard Stack: H743 FC + 85A ESC 4 in 1 1

Standard Stack: H743 FC + 85A ESC 4 in 1 2

Standard Stack: H743 FC + 85A ESC 4 in 1 3

Standard Stack: H743 FC + 85A ESC 4 in 1 4

Standard Stack: H743 FC + 85A ESC 4 in 1 5

Standard Stack: H743 FC + 85A ESC 4 in 1 6

Standard Stack: H743 FC + 85A ESC 4 in 1 7

Standard Stack: H743 FC + 85A ESC 4 in 1 8

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

https://www.chatrobotic.com

High-endurance flight control and power system for professional 7-9" long-range FPV drones

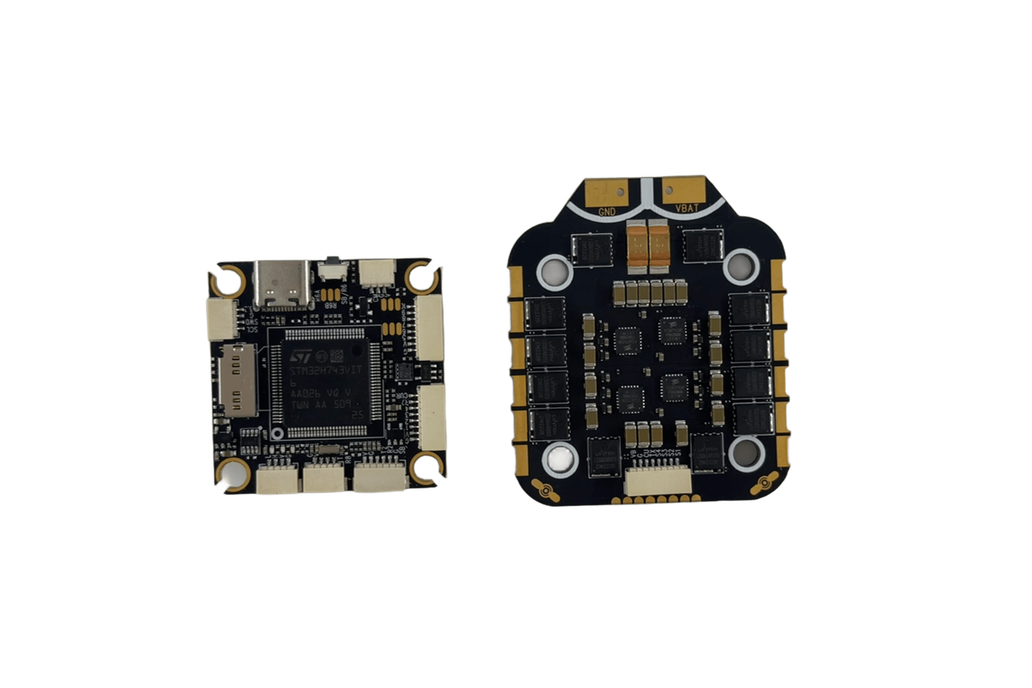

Standard Stack: H743 FC + 85A ESC 4-in-1 30x30 Technical Brief System Overview High-endurance flight control and power system for professional 7-9" long-range FPV drones, featuring industrial-grade S…

Standard Stack: H743 FC + 85A ESC 4-in-1 30x30 Technical Brief

System Overview

High-endurance flight control and power system for professional 7-9" long-range FPV drones, featuring industrial-grade STM32H743 processing and military-spec ESC design in a reinforced 30×30mm stackable architecture.

1. Flight Controller Specifications

Parameter	Specification
MCU	STM32H743VIT6 (480MHz Cortex-M7)
IMU	ICM-42688-P + BMI270 (dual SPI, 32kHz sync)
Blackbox	128MB Flash (32kHz logging)
Input Voltage	2-8S LiPo (11.1-33.6V)
BEC Outputs	5V@4A + 9V@3A + 12V@3A
Connectivity	8x UART, 3x I²C, 2x CAN FD, 1x Ethernet
USB Interface	Type-C with PD support
OSD Chip	AT7456E+ (4K resolution)
Board Size	38×38mm
Board Weight	13.8g

2. 75A 4-in-1 ESC Specifications

Parameter	Specification
MCU	STM32H750 (480MHz Cortex-M7)
Continuous Current	85A/channel (400A peak)
Burst Current	120A/channel (3 seconds)
Protocols	DShot1200, Proshot32, BiDirectional DShot
Input Voltage	3-8S LiPo (11.1-33.6V)
Current Sensor	±0.8% accuracy hall sensors
Board Size	42×42mm
Board Weight	35.2g

3. Combined Features

Power System

Military-grade PDB: 6-layer PCB with 2oz copper pour
Transient Protection: 50V TVS diodes with active crowbar circuit
Quad-stage Filtering: LC-π-π filter network for noise immunity
Stackable Design: 30×30mm mounting with M3 titanium screws

Integration

Triple Camera Outputs: 5V/9V/12V regulated with soft-start
Advanced Telemetry: ESC metrics via CAN FD (1000Hz update)
Dual Barometers: MS5611 + BMP390 for redundancy
WiFi/Bluetooth Module: Simultaneous wireless interfaces

4. Safety Features

Flight Controller Protections

Protection Type	Specification	Implementation
Voltage Spike Protection	45V continuous / 60V transient	TVS array + active clamping
Gyro Vibration Damping	>15kHz reduction by 98%	Magnesium gasket + adaptive notch
Quad Power Inputs	5V@4A + 5V@3A backup + dual VBUS	Priority-based hybrid switching

ESC Protections

Protection Type	Threshold	Response Time	Trigger Condition
Hardware Overcurrent	120A per channel	≤0.8 seconds	Real-time current monitoring
Software Overcurrent	85A continuous	≤5 seconds	Predictive load analysis
Short Circuit	Instant isolation	<15μs	Multi-stage fault detection
Over-temperature	125°C (MOSFET)	<100μs	Dual-zone thermal sensors
Low Voltage Cutoff	Smart config 2.7-3.8V/cell	<60ms	Dynamic battery modeling

5. Accessories Package

1x SH1.0-8pins silicone cable (7cm, reversed)
1x SH1.0-6pins silicone cable (12cm, reversed)
1x SH1.0-4pins silicone cable (12cm, reversed)
1x SH1.0-3pins silicone cable (10cm, reversed)
1x SH1.0-2pins silicone cable (12cm, single-end)
5x M3*10mm shock-absorbing balls
5x M3*8mm shock-absorbing balls
1x 1000UF 35V 10*20mm electrolytic capacitor
1x XT60-male 12AWG silicone cable (15cm length)
